Clutch: Description and Operation

GENERAL INFORMATION
The clutch is a dry single-disc, diaphragm type; hydraulic pressure is used for the clutch control.


Clutch Operating Method Hydraulic Type
Clutch Disc Type Single Dry Disc Type
Clutch Disc Facing Diameter
O.D. X I.D. mm (in.) 225 X 150 (8.9 X 5.9)
Clutch Cover Type Diaphram Spring Strap Drive Type
Clutch Cover Setting Load N (lbs.) 6,174 (1,388)
Clutch Realease Cylinder I.D. mm (in.) 20.64 (13/16)

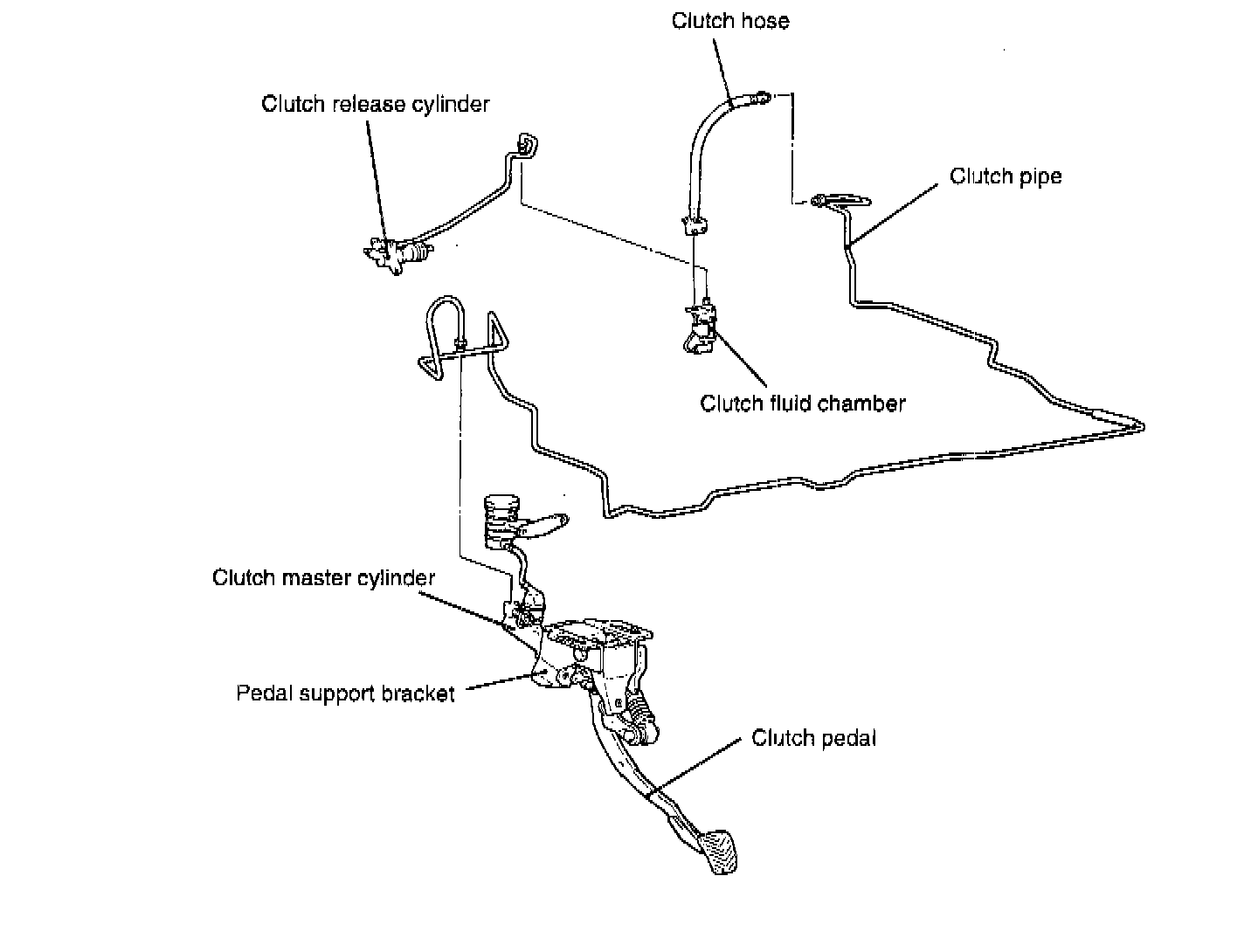

NOTE: This image shows 2.0L Engine (Turbo).
