Overhaul

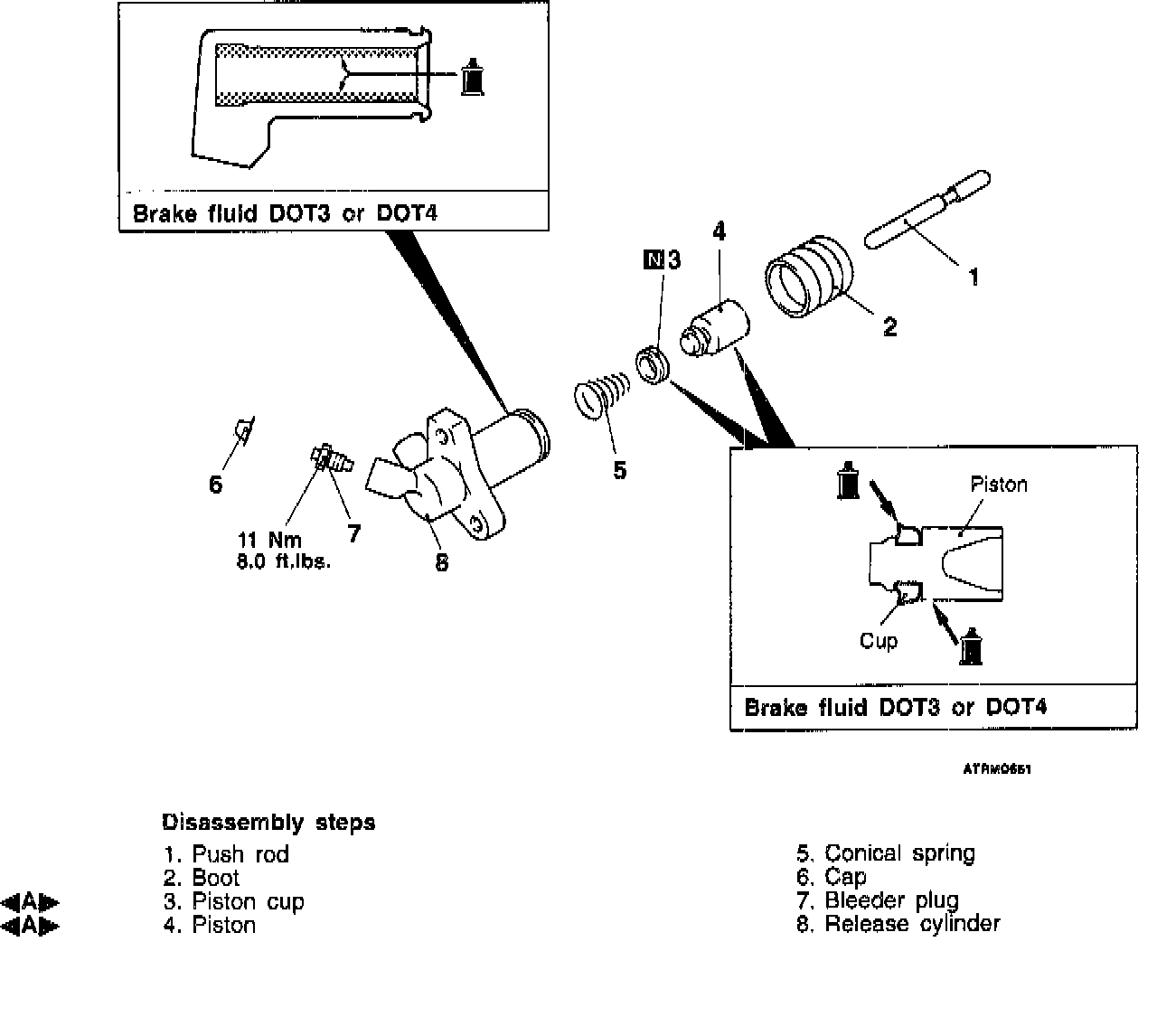

DISASSEMBLY AND REASSEMBLY
Disassembly Service Point

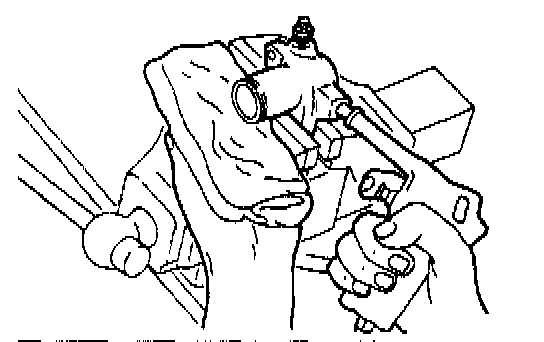

Piston And Piston Cap Removal
Remove the piston from the release cylinder using compressed air.
CAUTION:
1. Cover with shop towel to prevent the piston from popping out.
2. Apply compressed air slowly to prevent brake fluid from splashing.
INSPECTION
- Check the inner surface of the release cylinder for scratches or irregular wear.
- Check the piston cup for scratch or deformation, and the lip for wear.
