Overhaul

DISASSEMBLY AND REASSEMBLY
Installation Service Point

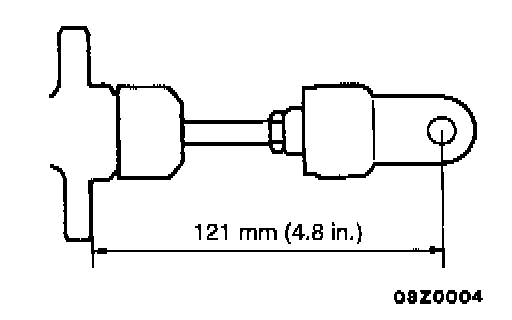

>A< Push Rod Assembly Installation





NOTE: Set the length of the push rod assembly to the shown dimension to make the adjustment of the clutch pedal easier.

INSPECTION
- Check the inside cylinder body for rust or scars.
- Check the piston cup for wear or deformation.
- Check the piston for rust or scars.
- Check the clutch pipe connection for clogging.
