Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment >> Required For Overhaul

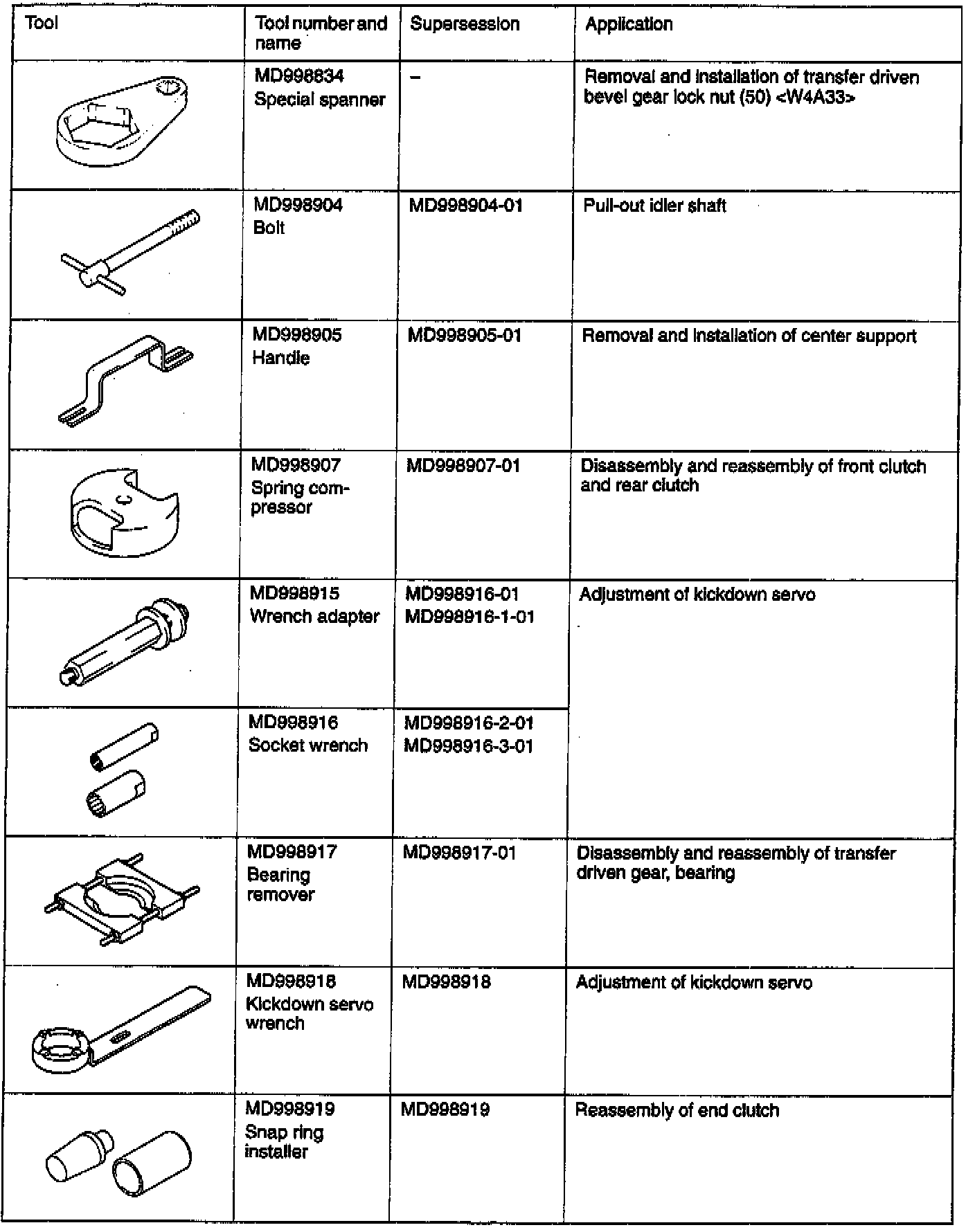

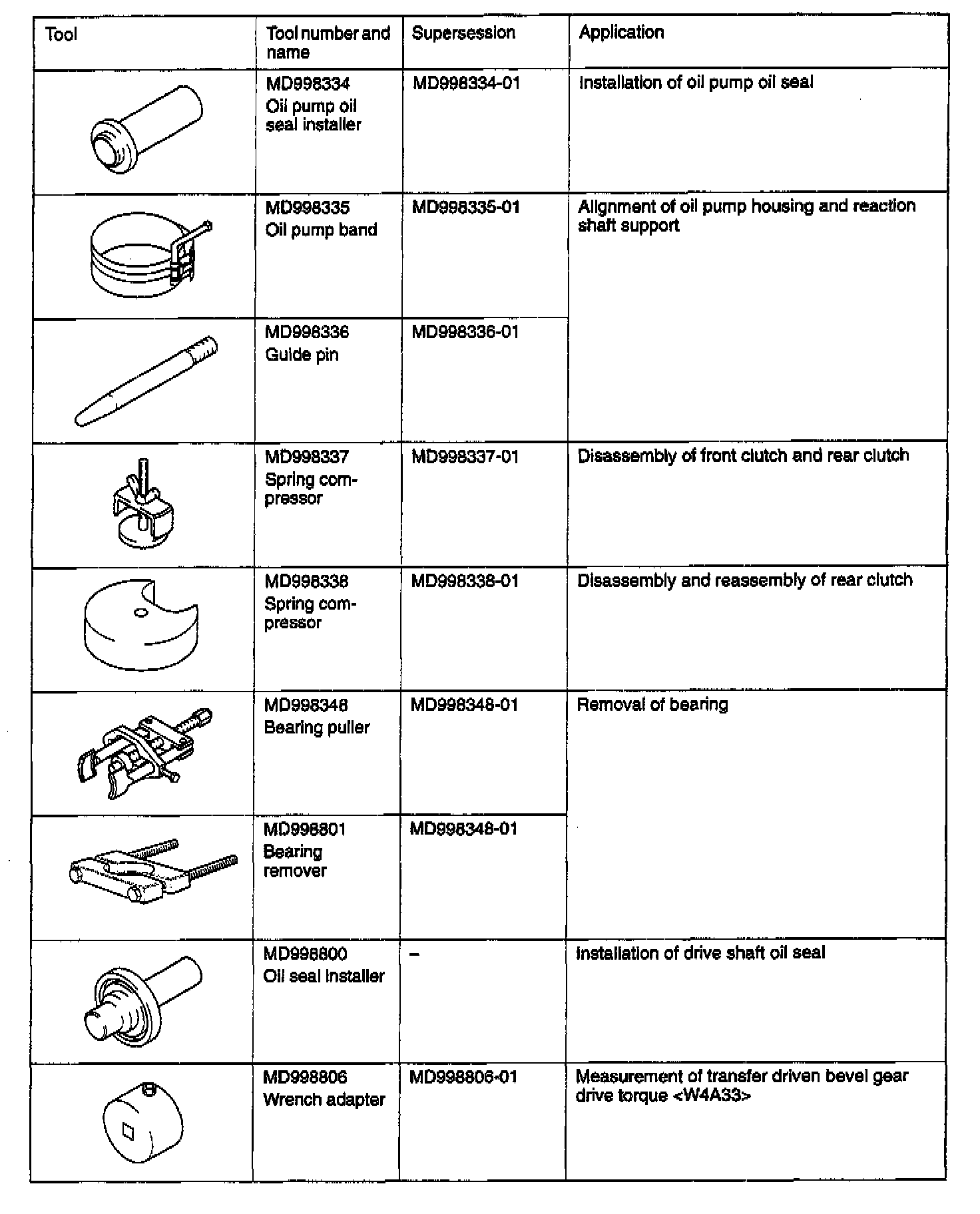

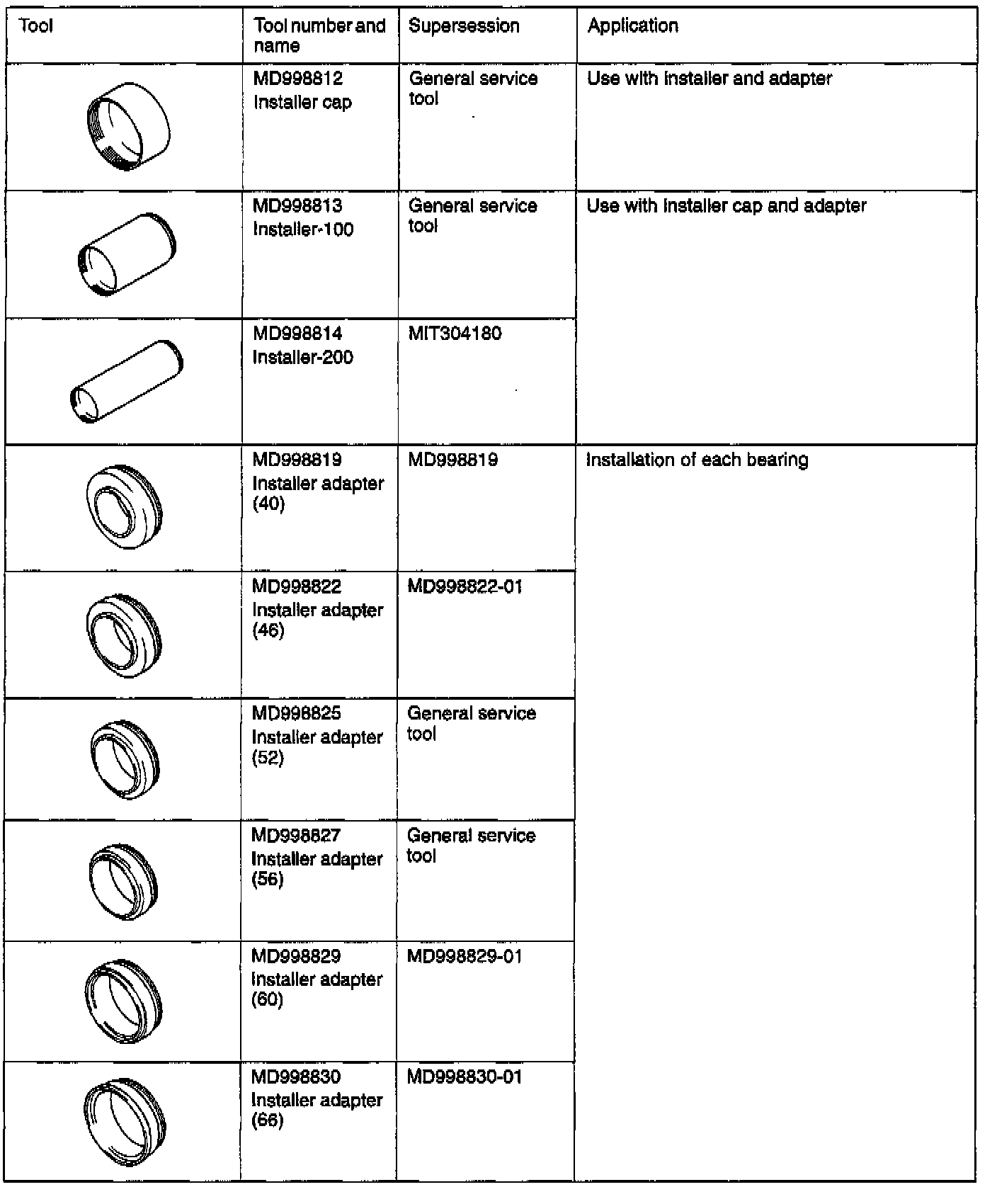

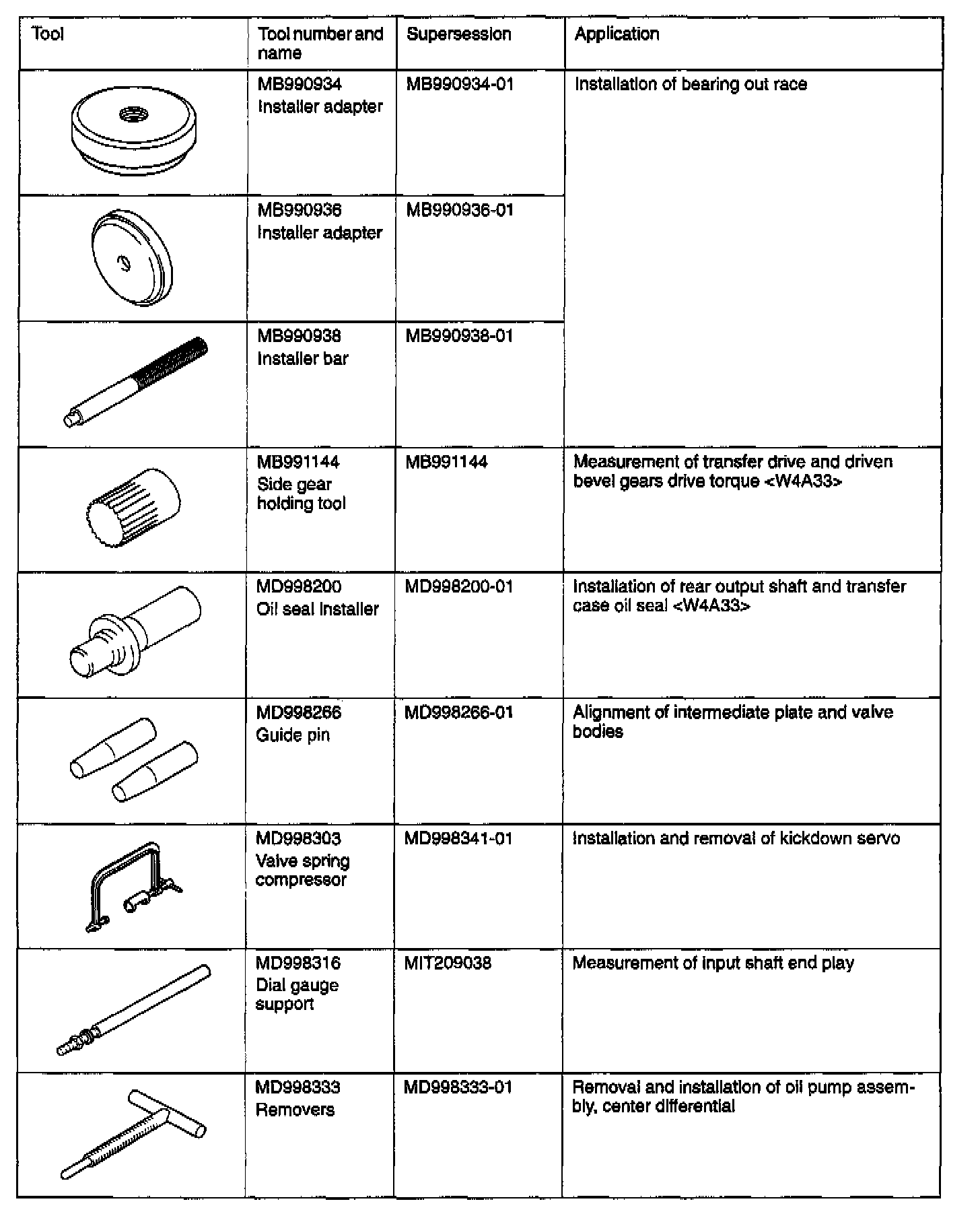

Required For Overhaul

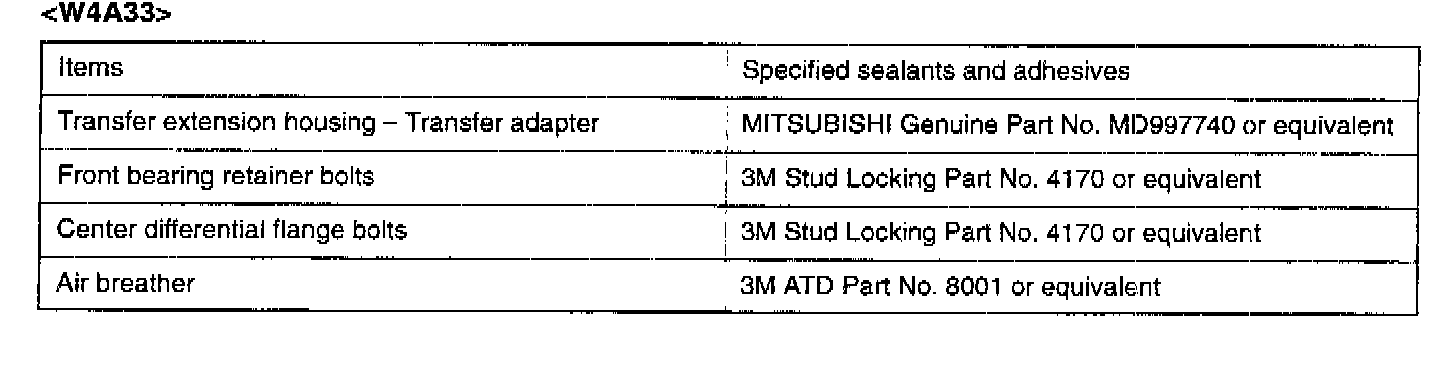

SEALANTS AND ADHESIVES






PART 1 OF 4






PART 2 OF 4






PART 3 OF 4






PART 4 OF 4
