Automatic Transmission/Transaxle: Application and ID

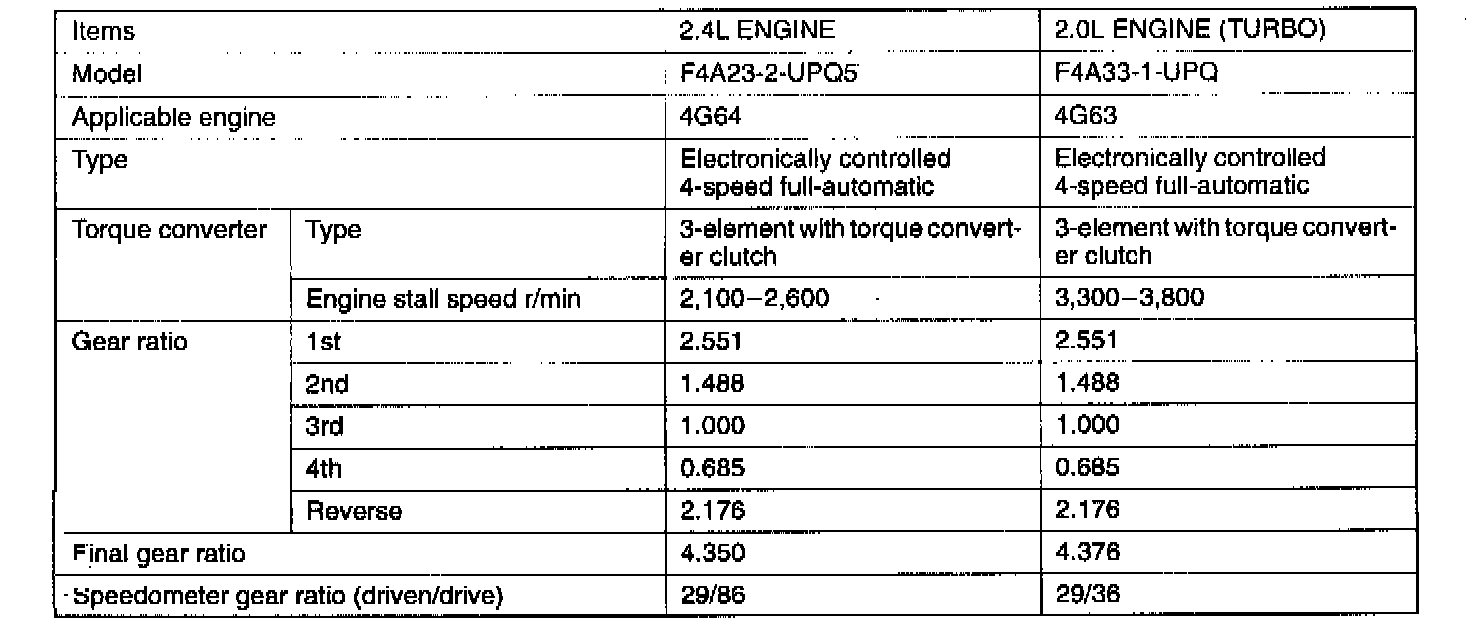

GENERAL INFORMATION





The automatic transaxles come in two models, namely, F4A23, F4A33 and W4A33. These transaxles are essentially the same as the conventional models.

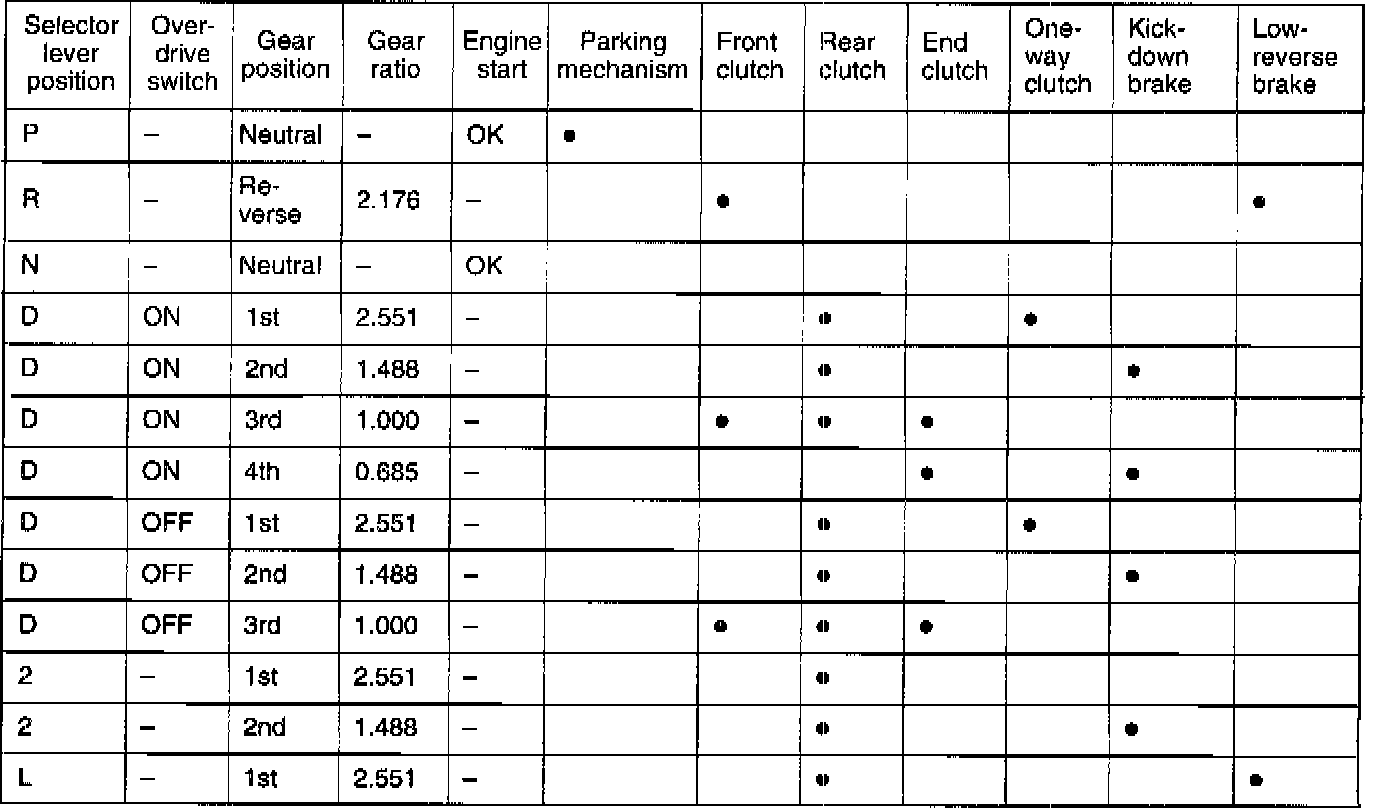

FUNCTION ELEMENT TABLE

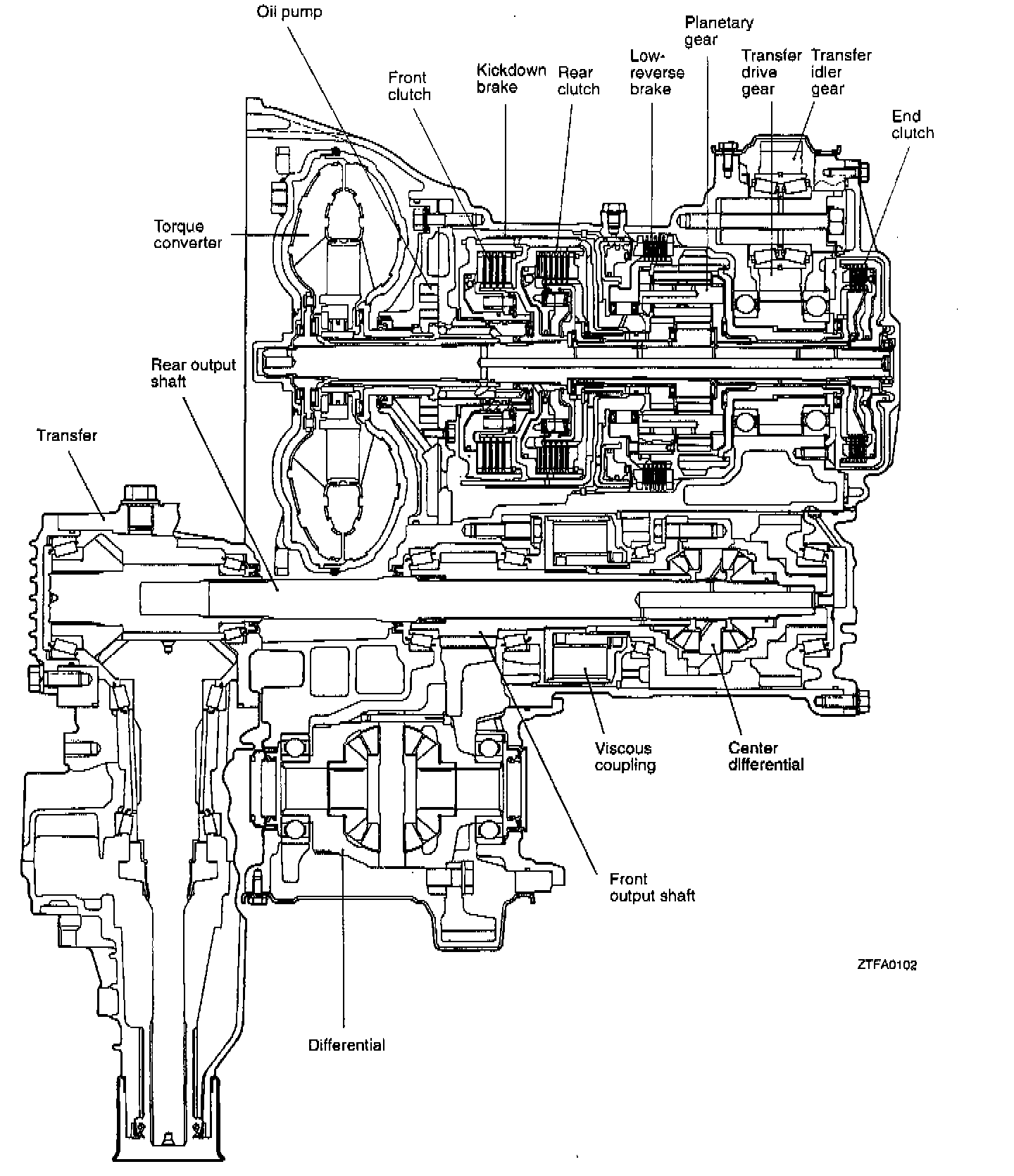

SECTIONAL VIEW
