Trailing Arm: Service and Repair

REMOVAL

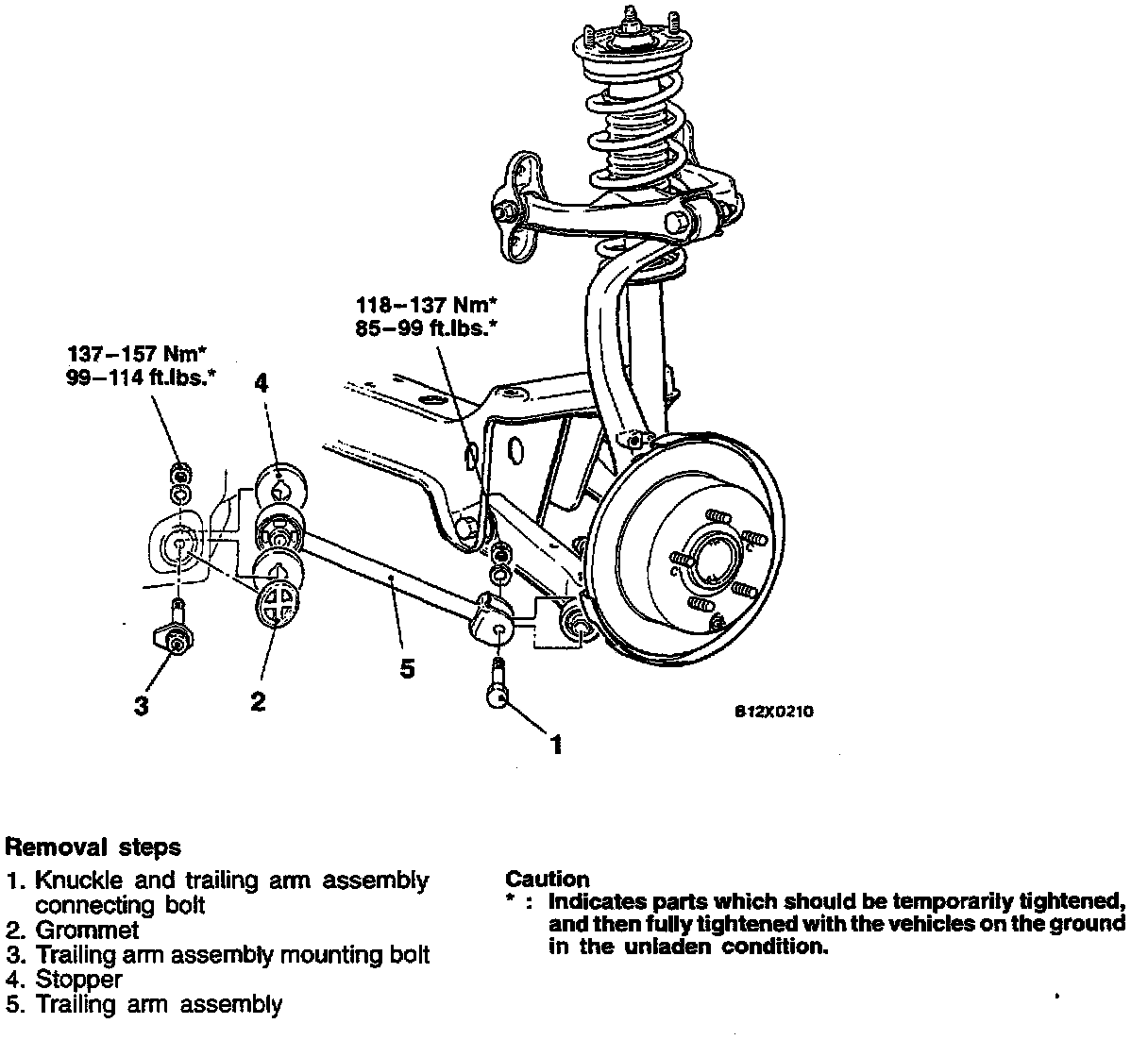

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation
- Wheel alignment check and adjust.

INSPECTION
1. Check the bushings for wear and deterioration.
2. Check the trailing arm for bends or damage.
