Rear Suspension

Pre-removal Operation
1. Remove service lid.
2. Remove luggage compartment side trim.

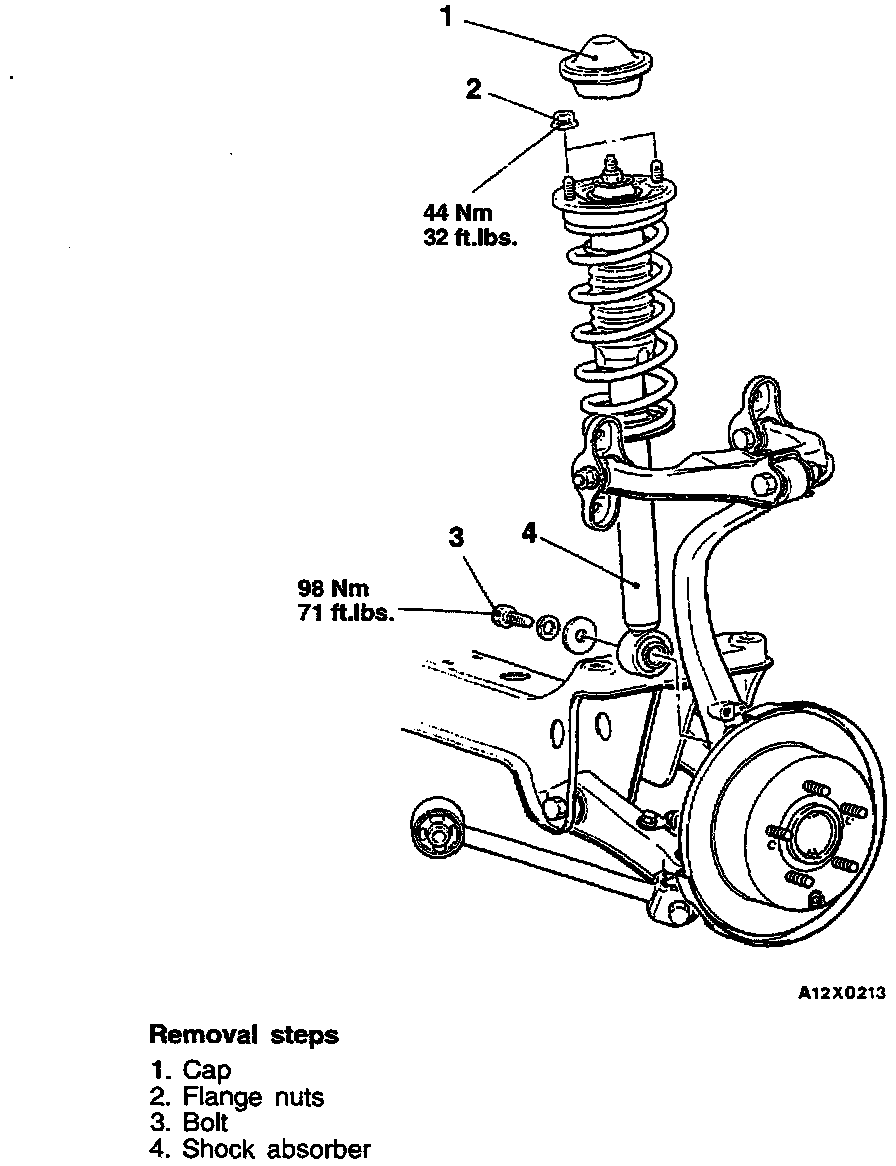

3. Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation
1. Install Luggage compartment side trim.
2. Install Service Lid.

INSPECTION
- Check the rubber parts for cracks and wear.
- Check the shock absorber for malfunctions, oil leakage or abnormal noise.
