Removal and Installation

REMOVAL

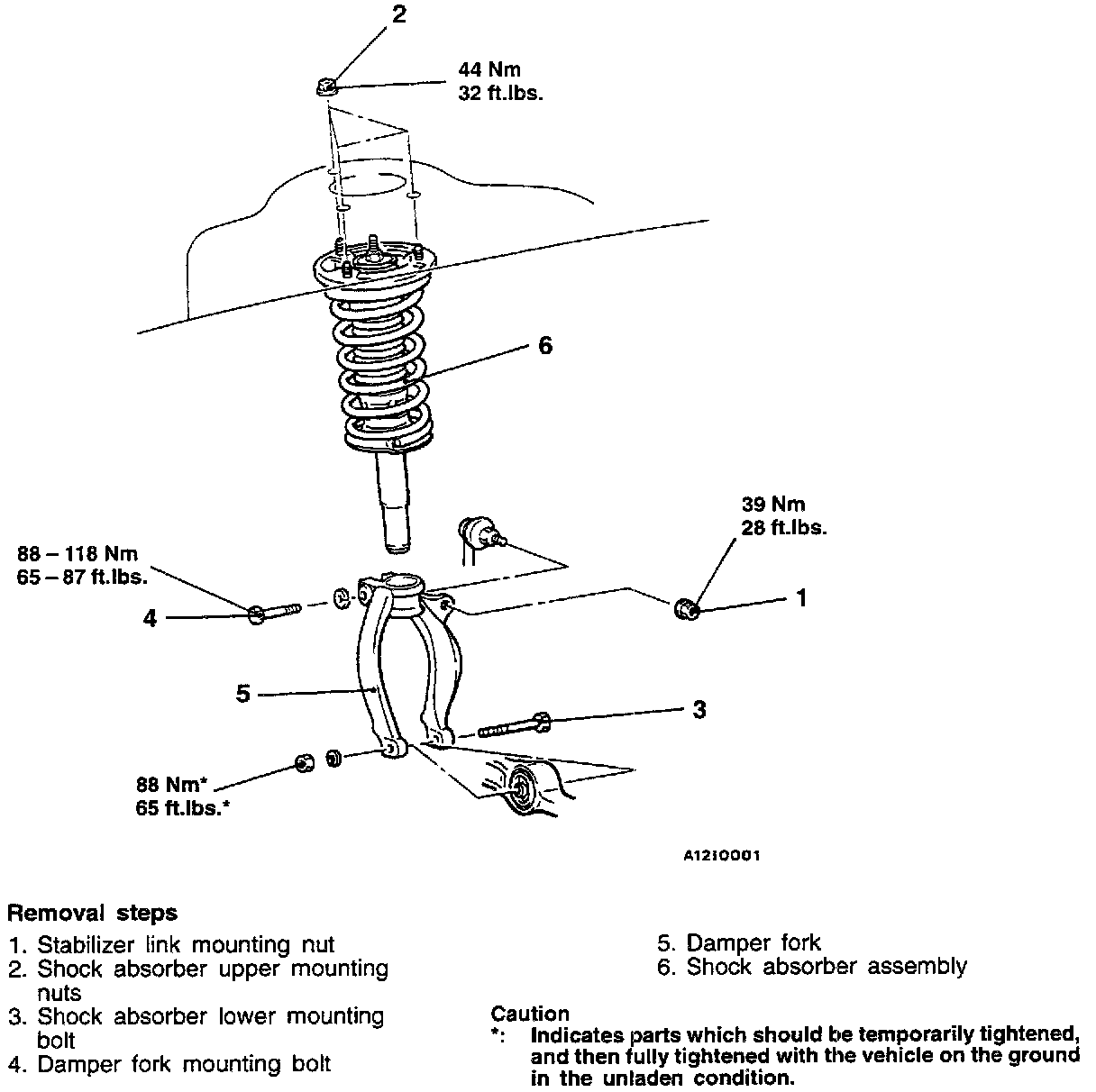

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation
- Press the dust cover with a finger to check whether the dust cover is cracked or damaged.
- Front wheel alignment adjustment.
