Rear Knuckle: Service and Repair

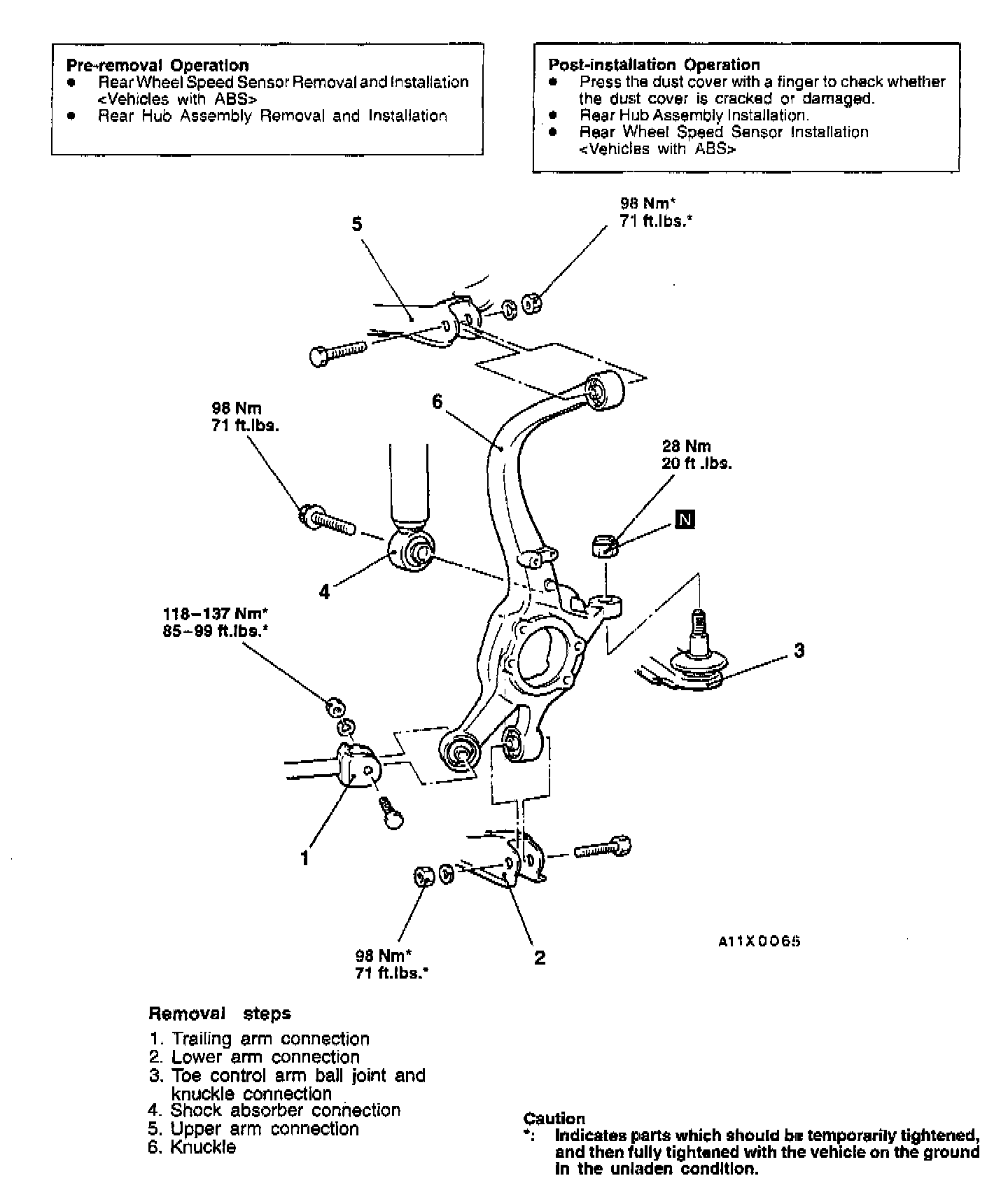

REMOVAL AND INSTALLATION




Removal Service Point
[A] Toe Control Arm Ball Joint And Knuckle Disconnection





CAUTION:

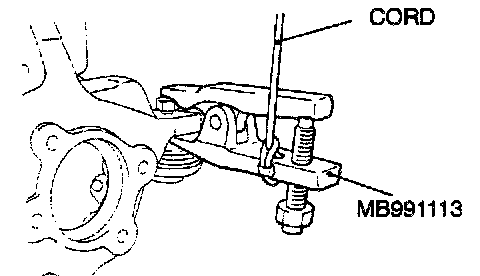

1. Use the special tool to loosen the tie rod end mounting nut. Only loosen the nut; do not remove it from the ball joint.
2. Support the special tool with a cord, etc. to prevent it from coming off.
