Upper Control Arm

REMOVAL

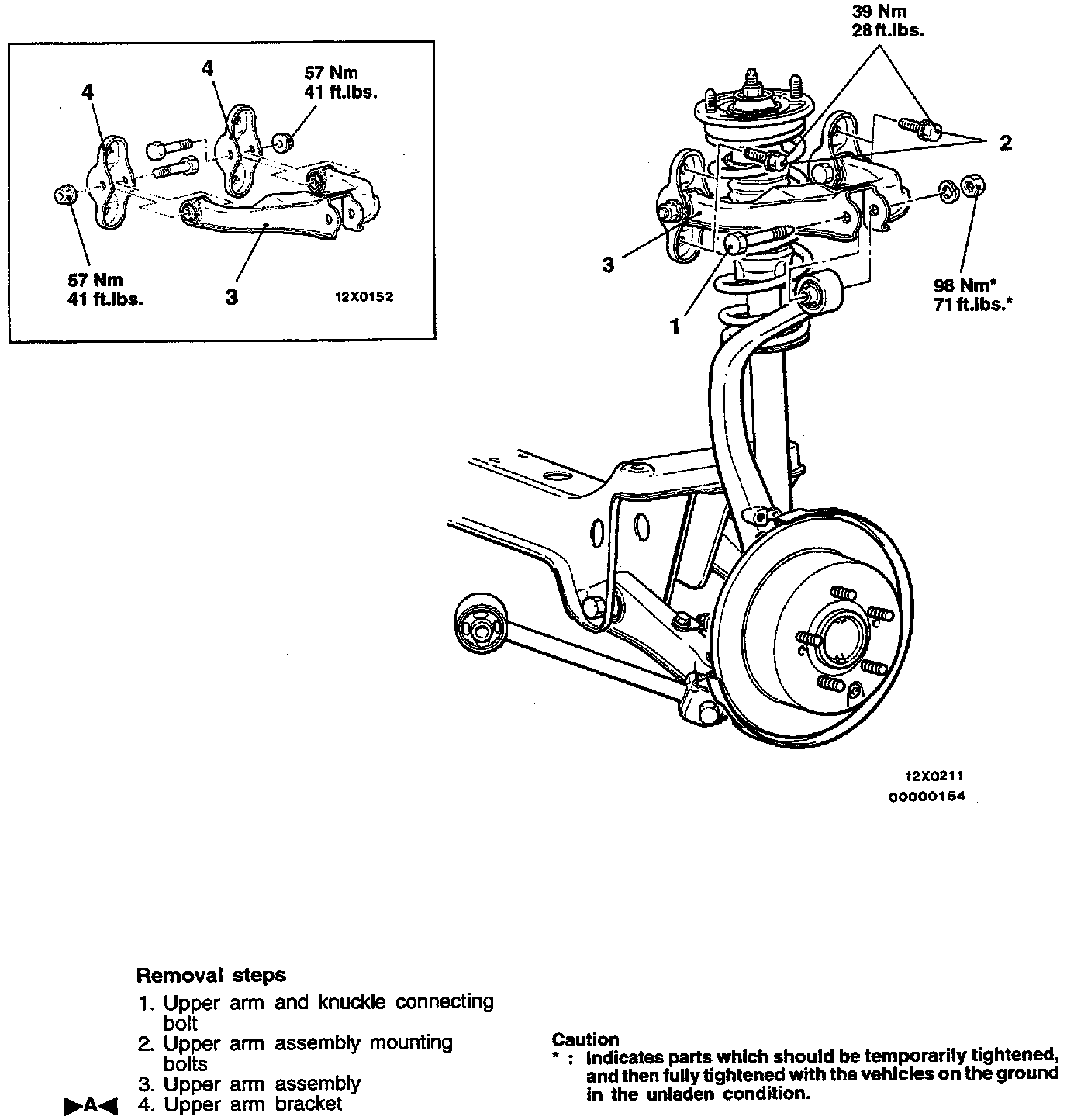

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points





]A[ Upper Arm Bracket Installation (4).

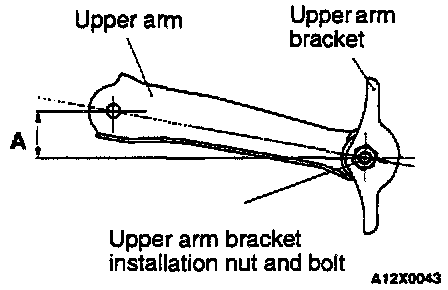

Tighten the upper arm bracket installation nut and bolt so that the dimension shown in the illustration is at the standard value.

Standard value (A): 37.2 ± 2 mm (1.46 ± 0.08 inch)

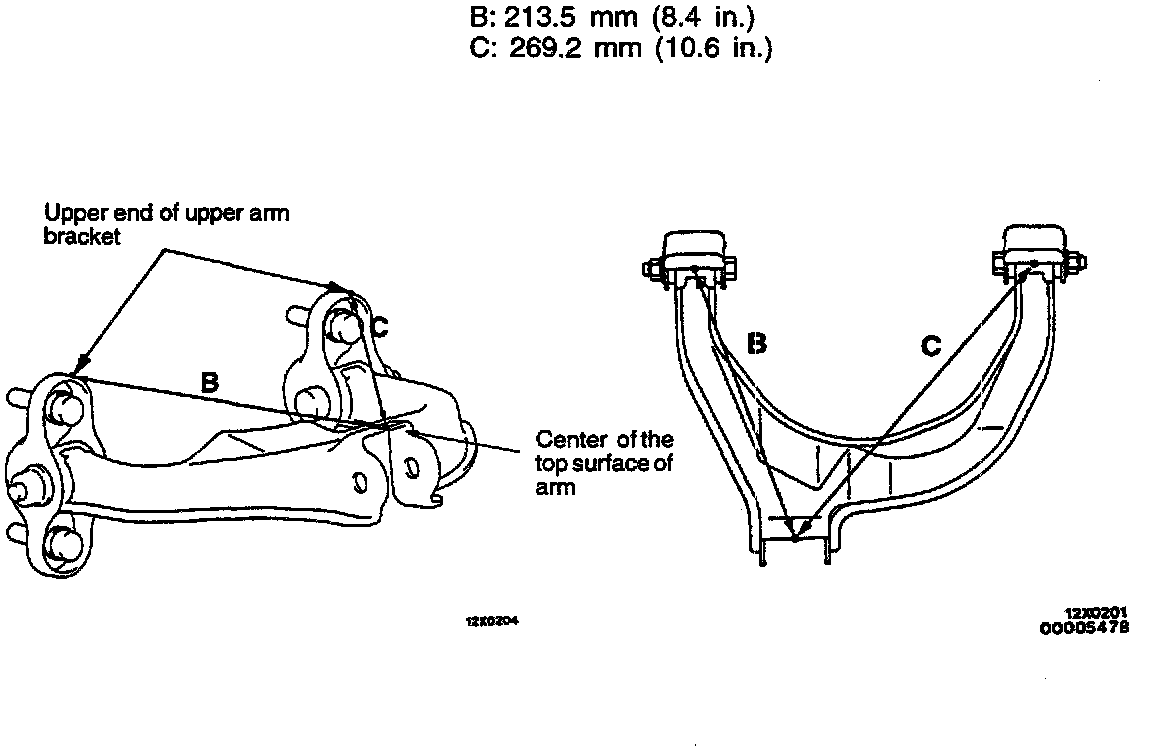

NOTE: If the upper arm bracket is installed with the former-mentioned standard value, the reference dimension is determined as follows;





Post-installation Operation
- Wheel alignment check and adjust.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the upper arm for bends or damage.
- Check all bolts for condition and straightness.
