Removal and Replacement

CAUTION: For Supplemental Restraint System (SRS). Before removal of air bag module, refer to: SRS Service Precautions and Air Bag Module and Clock Spring.

REMOVAL

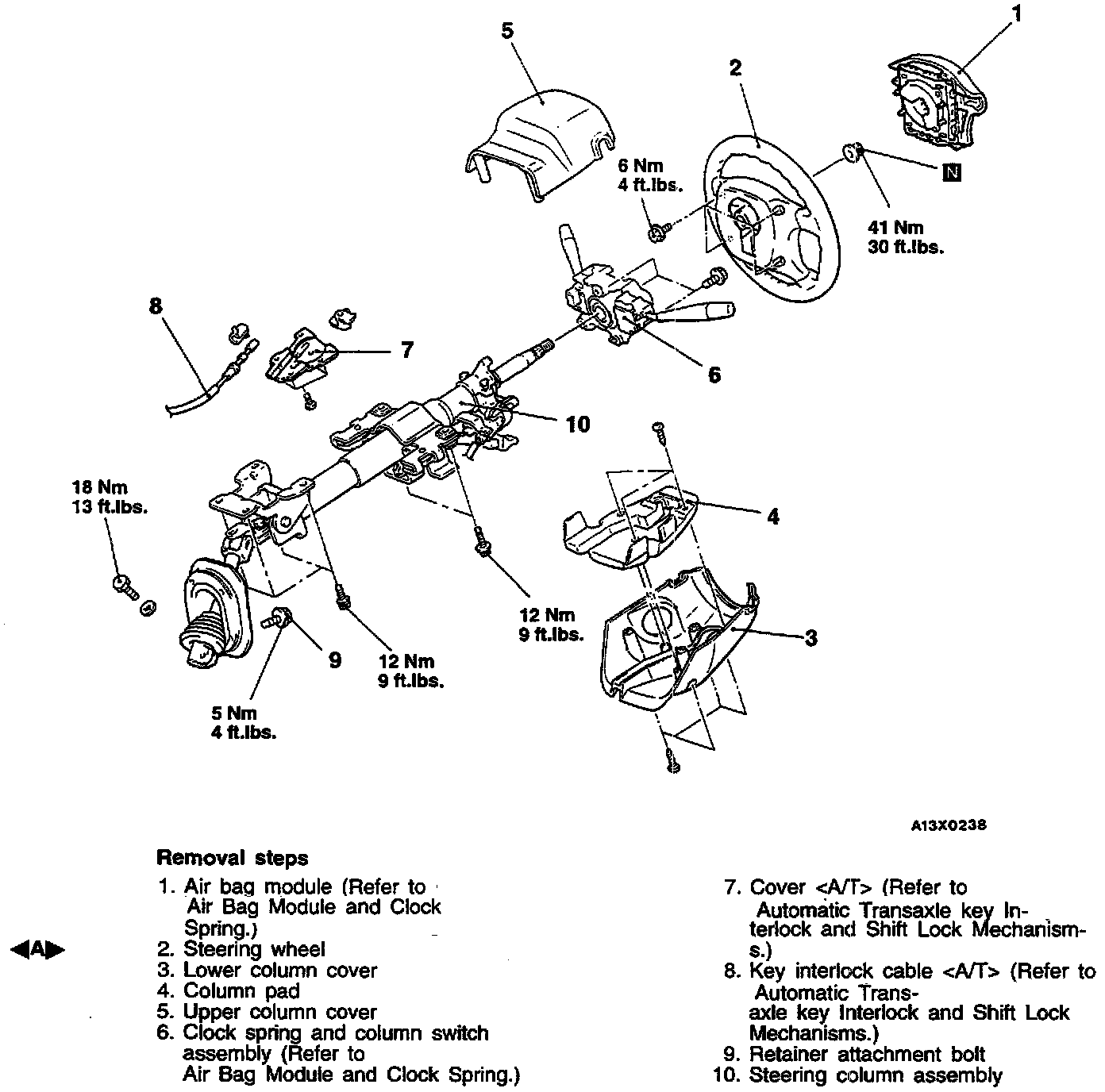

Follow removal steps outlined in illustration.

Removal Service Points

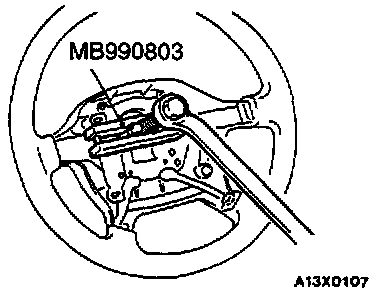

[A] Steering Wheel Removal (2).

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation
- Checking steering wheel position with wheels straight ahead.
