Removal and Replacement

Pre-removal Operation
1. Drain power steering fluid.

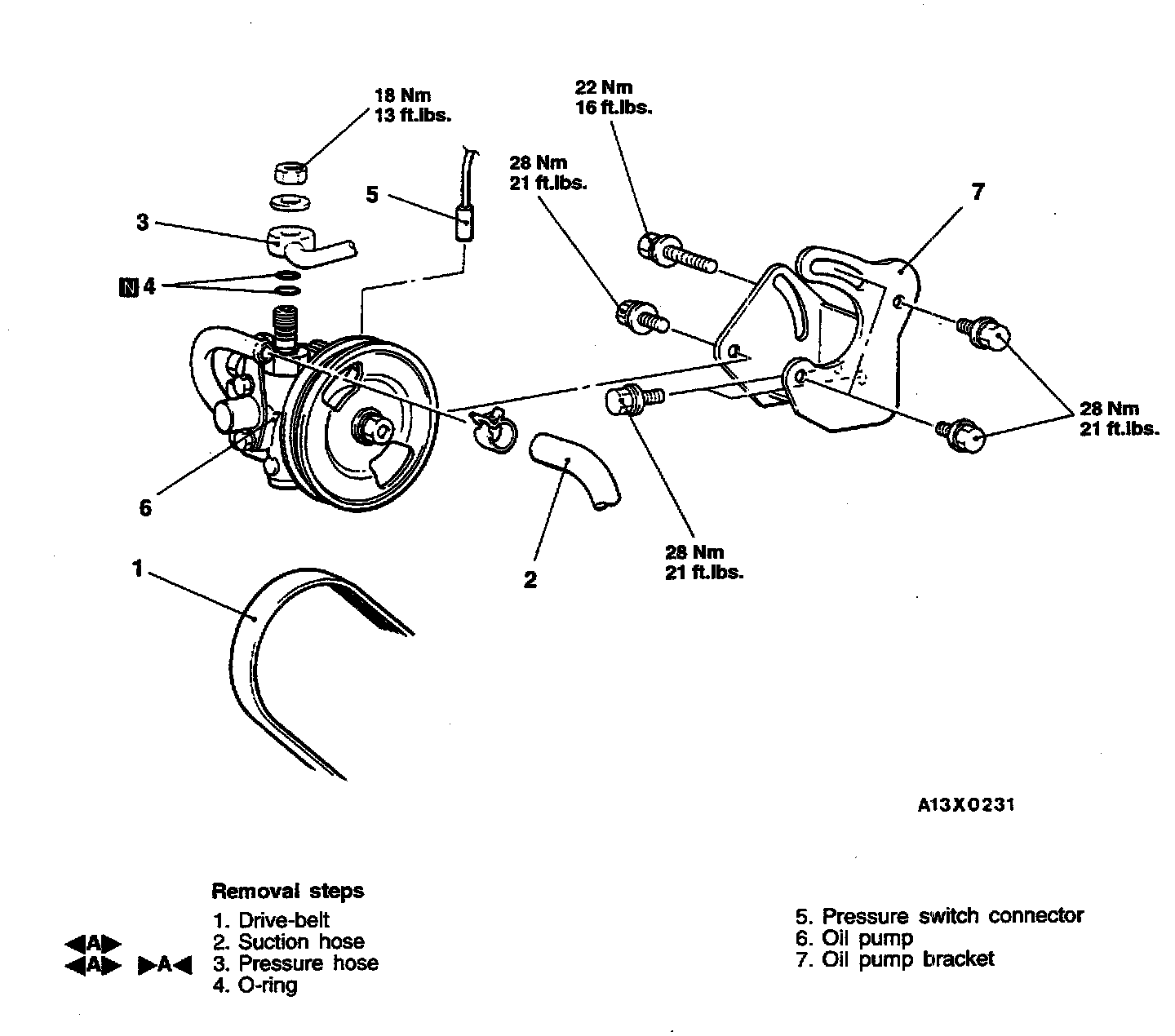

2. Follow removal steps outlined in illustration.

Removal Service Points





[A] Suction Hose/Pressure Hose Removal (2 & 3).

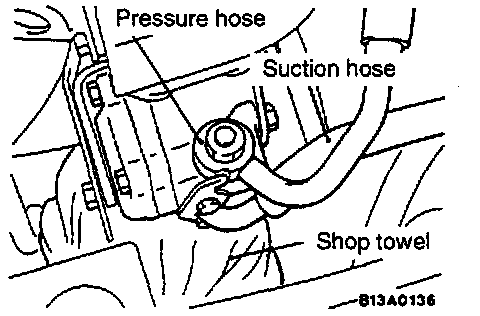

CAUTION: Generator is below the oil pump, so cover the generator with a shop towel before removing any of the hoses.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points





]A[ Pressure Hose Installation (3).

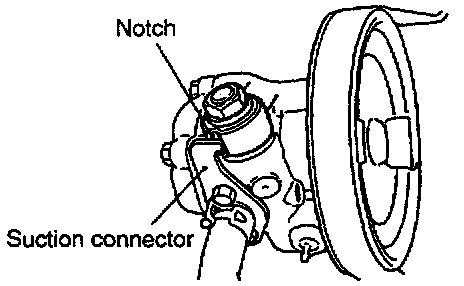

Connect the pressure hose so that its notch part contacts the suction connector.

Post-installation Operation
1. Power Steering Fluid Supplying.
2. Drive-belt Tension Adjusting.
3. Power Steering Fluid Line Bleeding. Service and Repair
4. Oil Pump Pressure Check.

INSPECTION
- Check the drive-belt for cracks.
- Check the pulley assembly for uneven rotation.
