Rear

REAR WHEEL ALIGNMENT CHECK AND ADJUSTMENT
Measure wheel alignment with alignment equipment on level ground.
The front suspension, steering system, and wheels should be serviced to normal condition prior to measurement of wheel alignment.
The rear suspension and wheels should be serviced to normal condition prior to wheel alignment.





Toe-In

Standard value: 3 ± 3 mm (0.12 ± 0.12 inch)

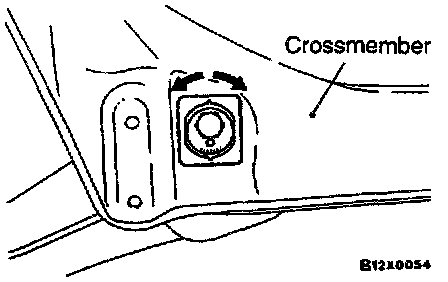

Turn the toe control arm mounting bolt to the left or right by equal amounts to adjust.

L.H.: Turning clockwise toe-out direction
R.H.: Turning clockwise toe-in direction

Furthermore, toe adjustment can be made at graduations of approximately 1.3 mm (0.05 inch).

Camber

Standard value:
-1° 40' ± 30' FWD (Vehicles With 16-inch wheels)
-1° 20' ± 30' FWD (Vehicles With 14-inch wheels), AWD

NOTE:
1. Camber is preset at the factory and cannot be adjusted.
2. If camber is not within the standard value, check and replace bent or damaged parts.
