Initial Inspection and Diagnostic Overview

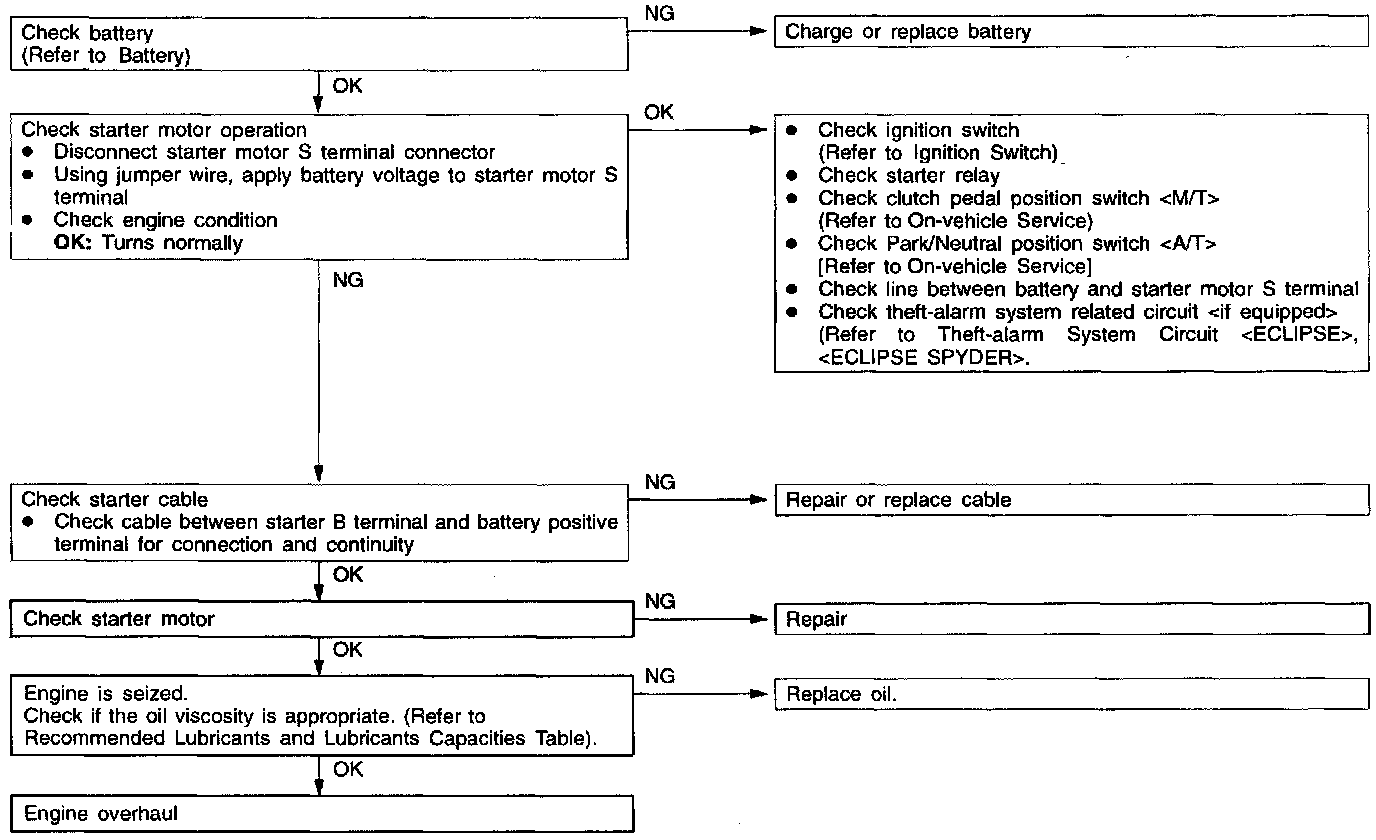

The
starting system
troubleshooting guide is shown in the following chart.
