Removal and Replacement




Pre-Removal and Post-Installation Operation
Battery Removal and Installation

Removal

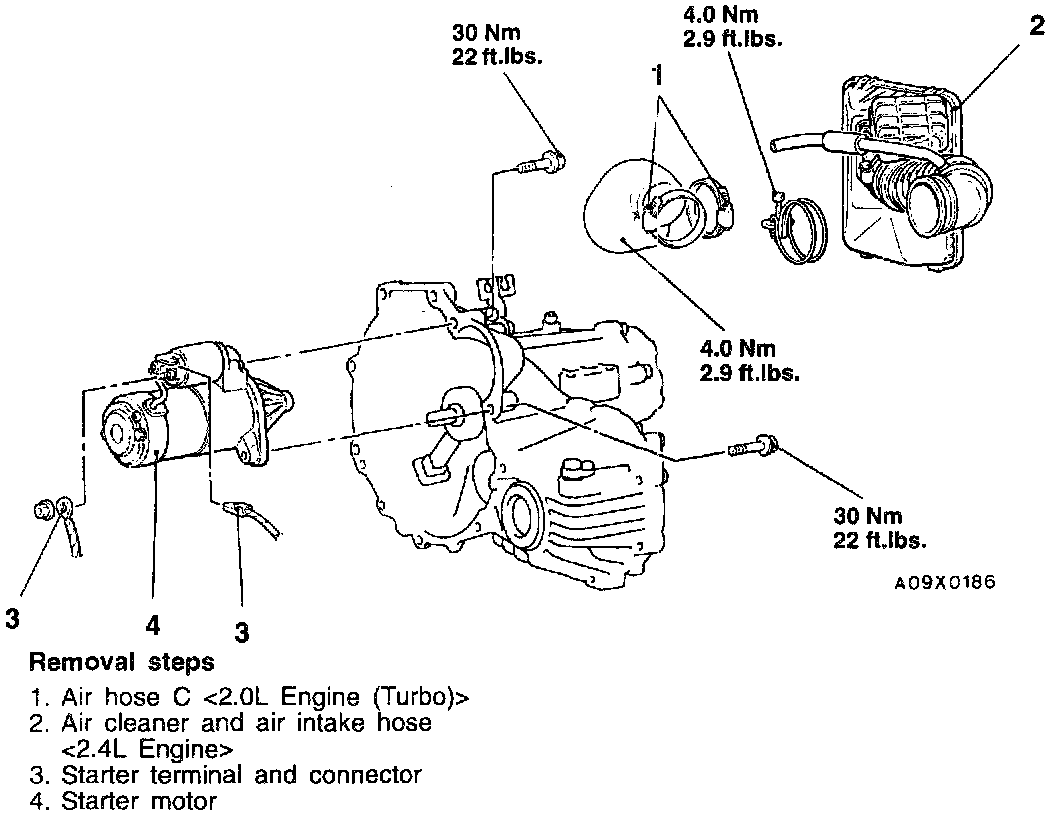

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
