Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> Vehicle Without Theft-Alarm System

Vehicle Without Theft-Alarm System

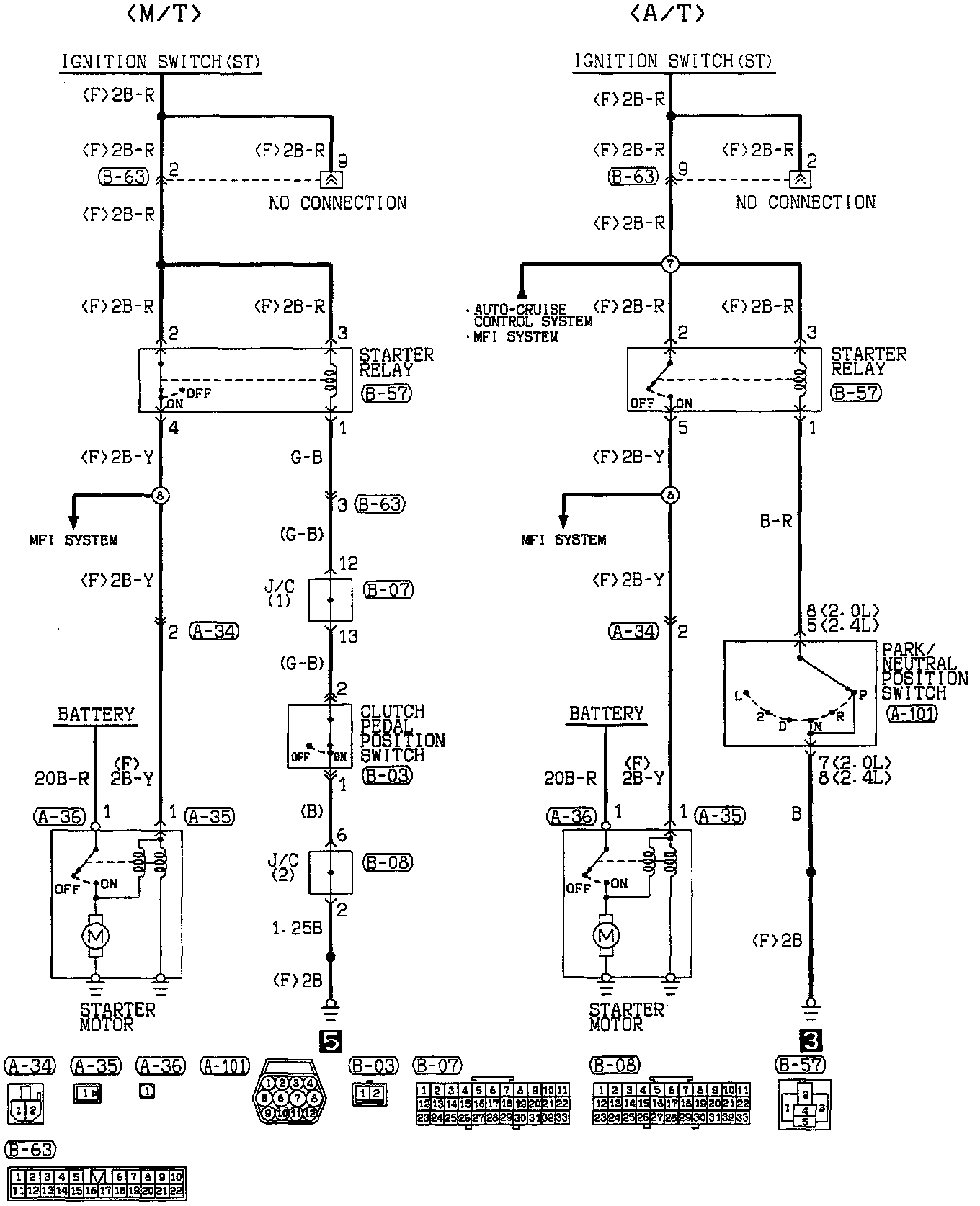

Starting System <Vehicles Without Theft-Alarm System>:
