Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
Input Shaft, M/T
>>
Snap Rings and Spacers For Adjustment
Snap Rings and Spacers For Adjustment

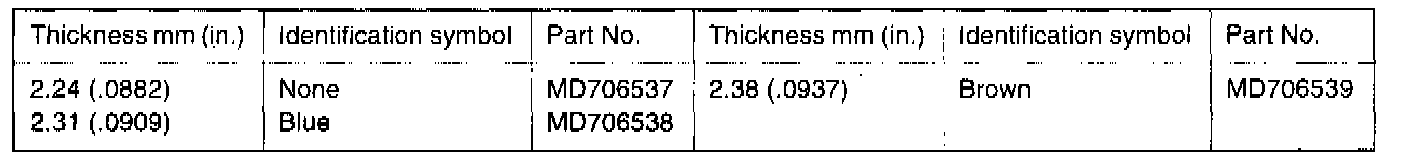

Snap Ring (For Adjustment Of Input Shaft Front Bearing, End Play)

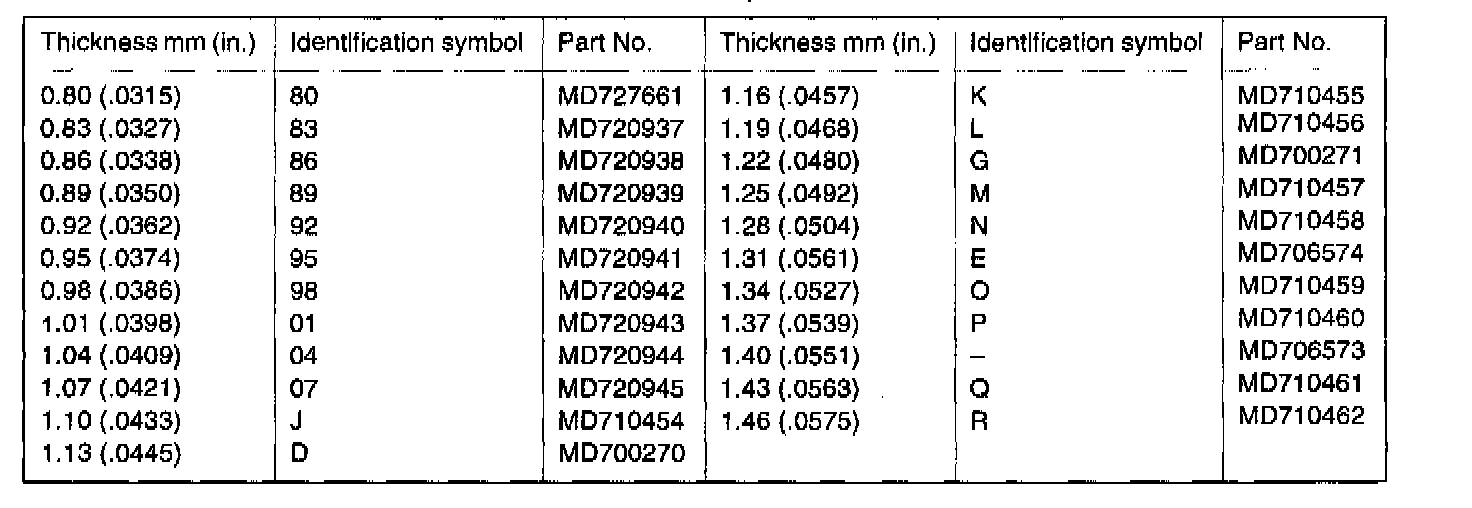

Snap Ring (For Adjustment Of Input Shaft Rear Bearing End Play)

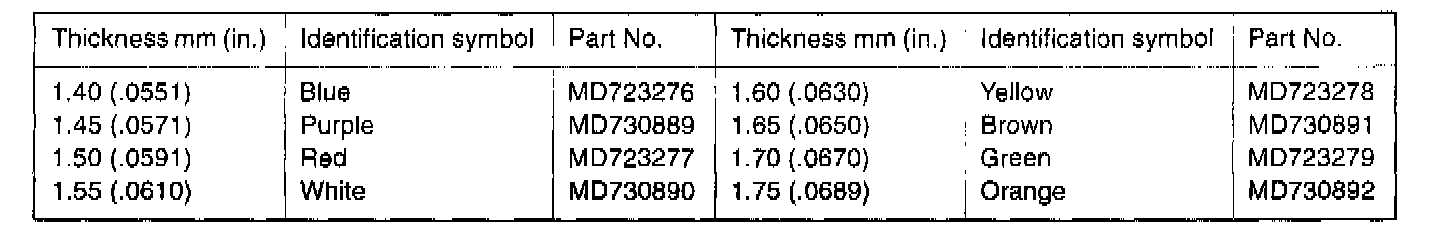

Spacer (For Adjustment Of Input Shaft End Play)
