Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Clutch, A/T >> Low Reverse Clutch >> Pressure Plates, Snap Rings and Spacers For Adjustment

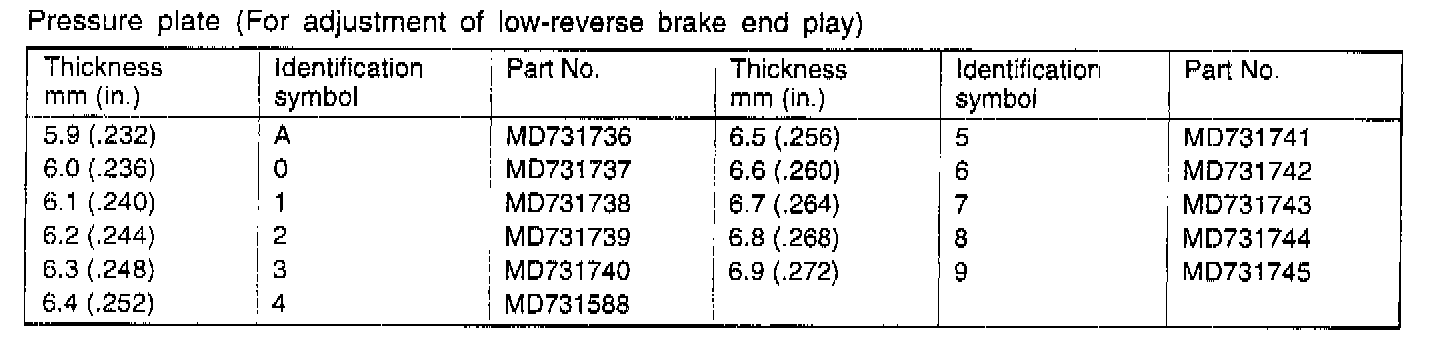

Pressure Plates, Snap Rings and Spacers For Adjustment
