Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

1. Disconnect the volume air flow sensor connectors.

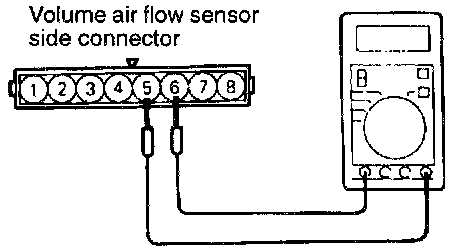

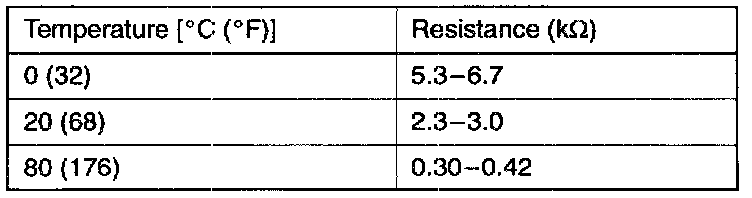

2. Measure resistance between terminals 5 and 6.

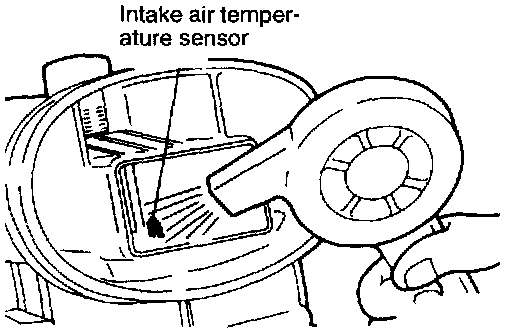

3. Measure resistance while heating the sensor using a hair drier.




4. If resistance does not decrease as heat increases the resistance remains unchanged, replace the volume air flow sensor assembly.
