Stop Lights - Switch Adjustment Procedure Revised
NO.: TSB-98-35-002DATE: March, 1998
MODEL: See Below
SUBJECT:
REVISED STOP LIGHT SWITCH ADJUSTMENT PROCEDURES - SERVICE MANUAL REVISION
[TSB Revision TSB-98-35-002]
PURPOSE
Beginning with November 3, 1997 production, the stop light switch on affected vehicles was changed from a switch mounted with a securing nut to one that is mounted with a securing clip. The relevant service procedures are changed. This bulletin has new information relating to the new-type switch.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1998 Eclipse & Eclipse Spyder produced after November 3, 1997
1998 Galant produced after November 3,1997
AFFECTED SERVICE MANUAL
1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Pages 35A-8, 9, 24
1998 Galant Service Manual, Volume 2, Pages 35A-8, 9, 18
SERVICE MANUAL REVISIONS

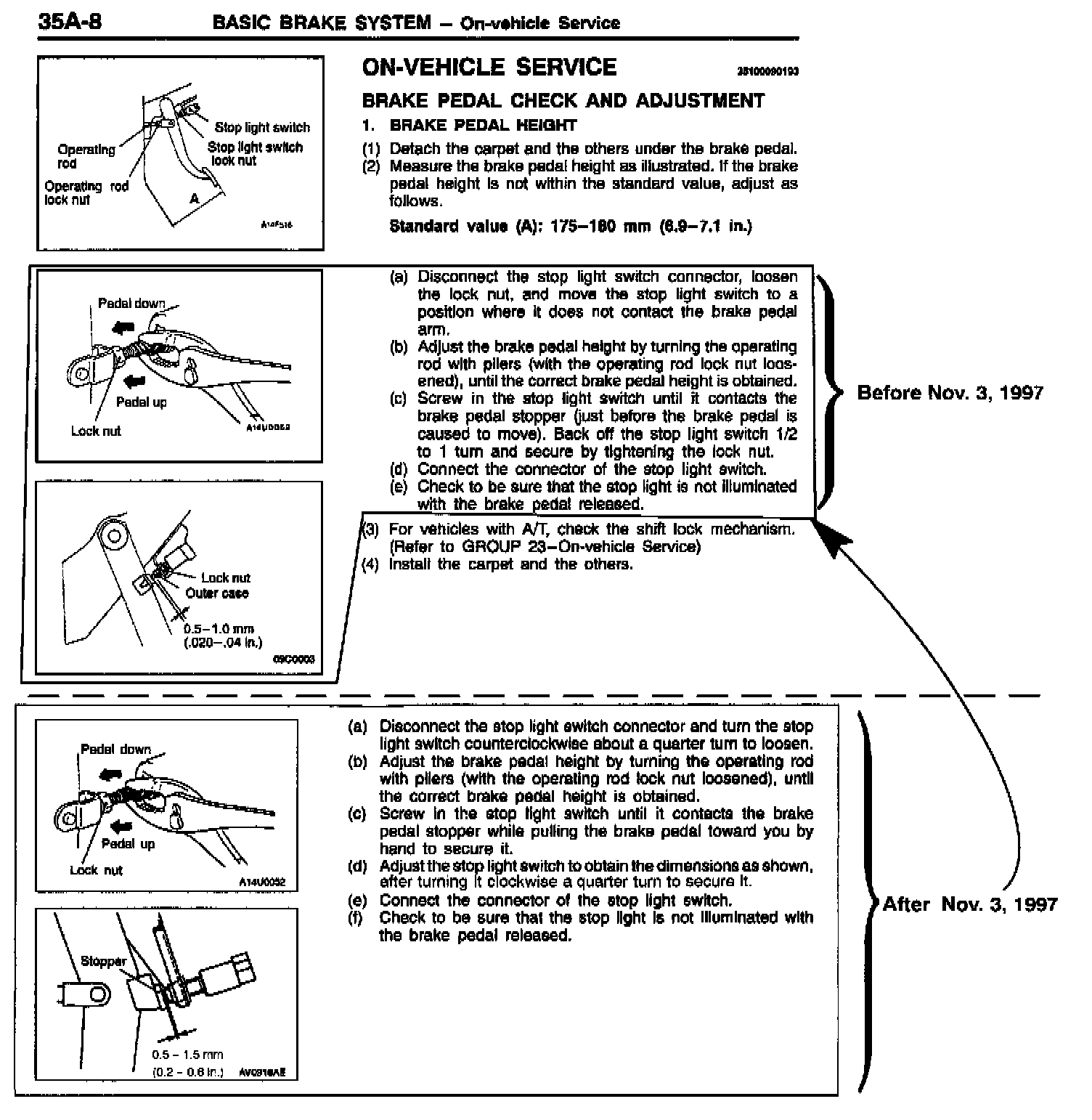

1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 35A-8
Add the new stop light switch related information as shown:

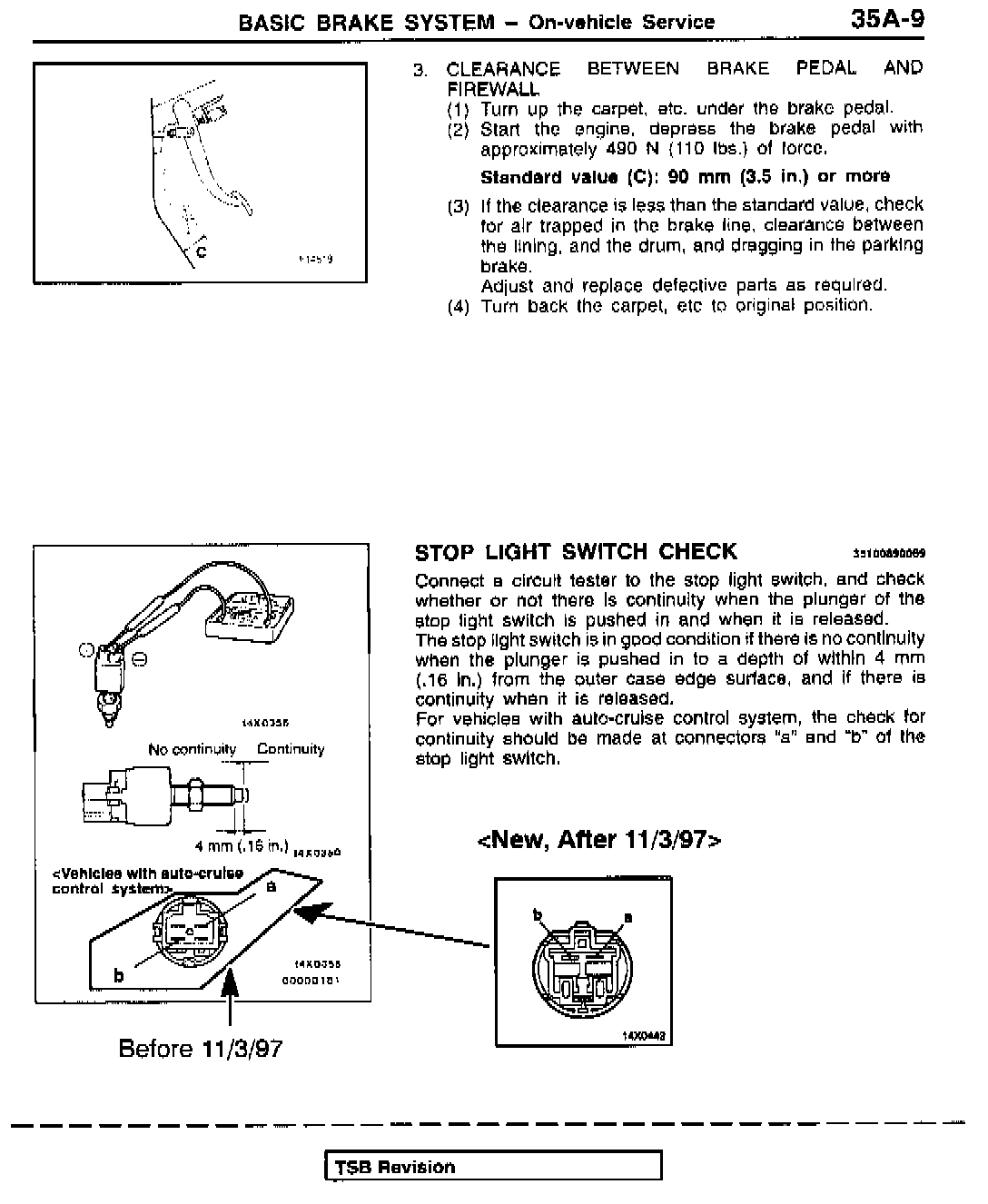

1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 35A-9
Add the new stop light switch related information as shown:

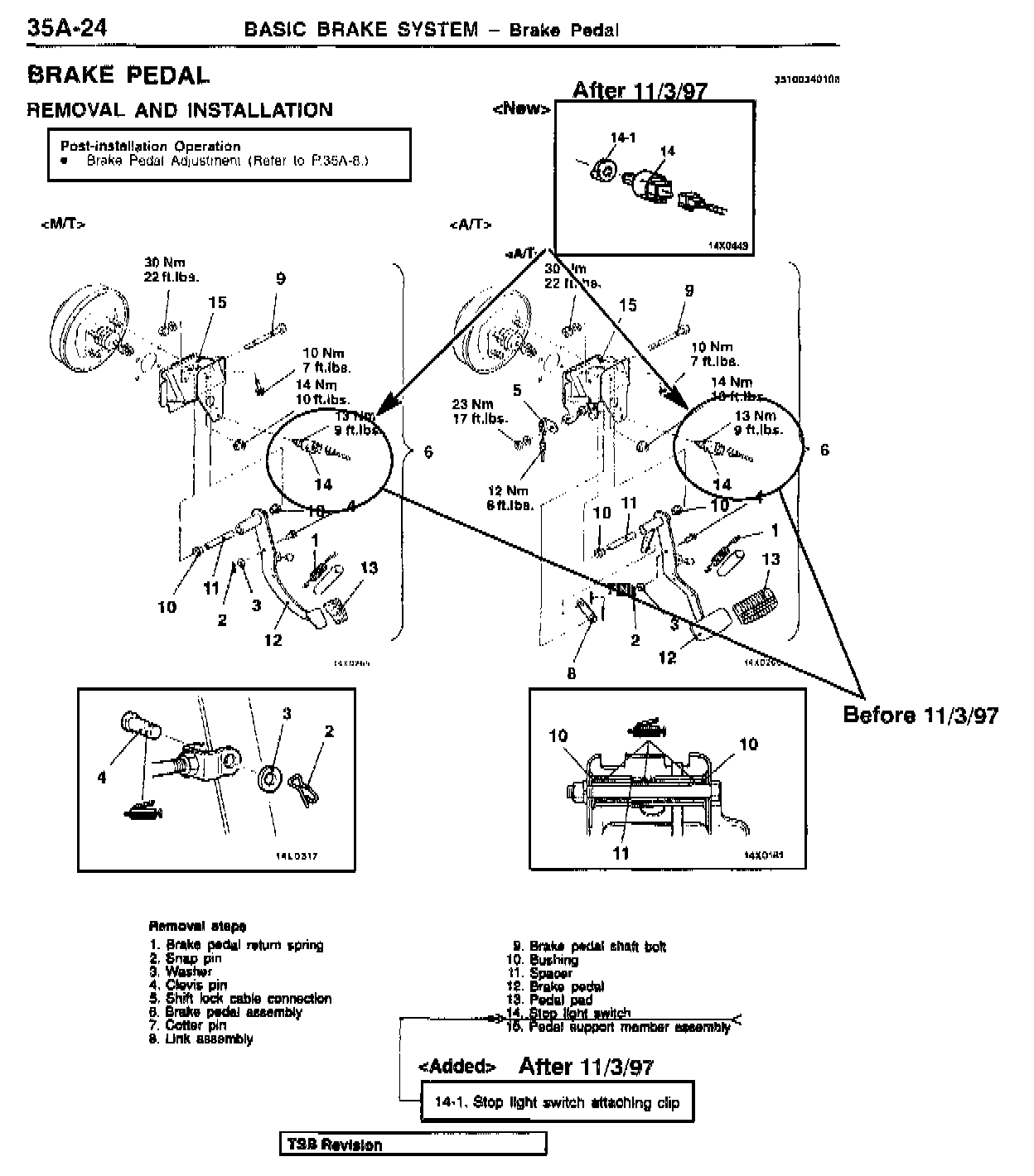

1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 35A-24
Add the new stop light switch related information as shown:

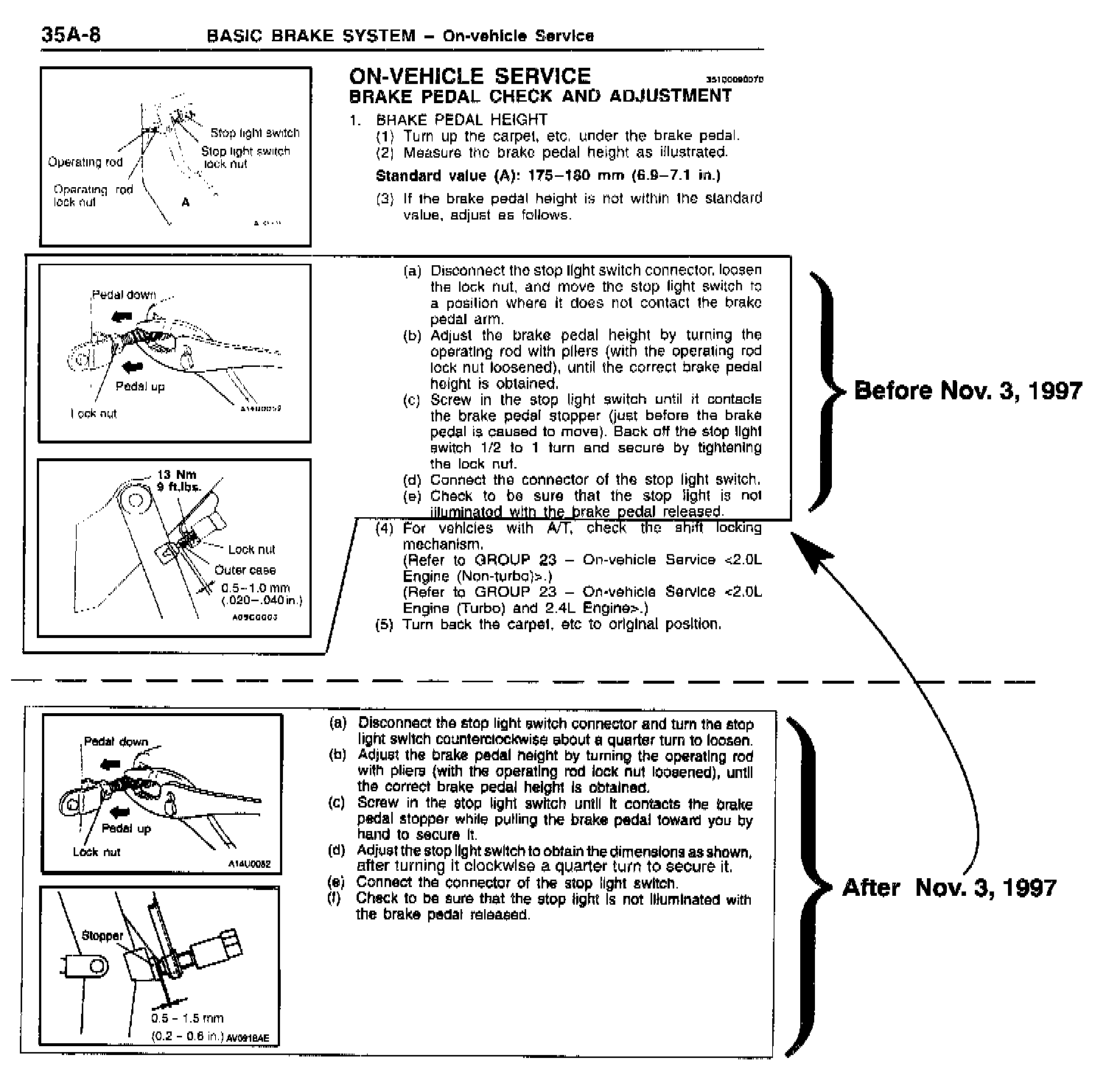

1998 Galant Service Manual, Volume 2, Page 35A-8
Add the new stop light switch related information as shown:

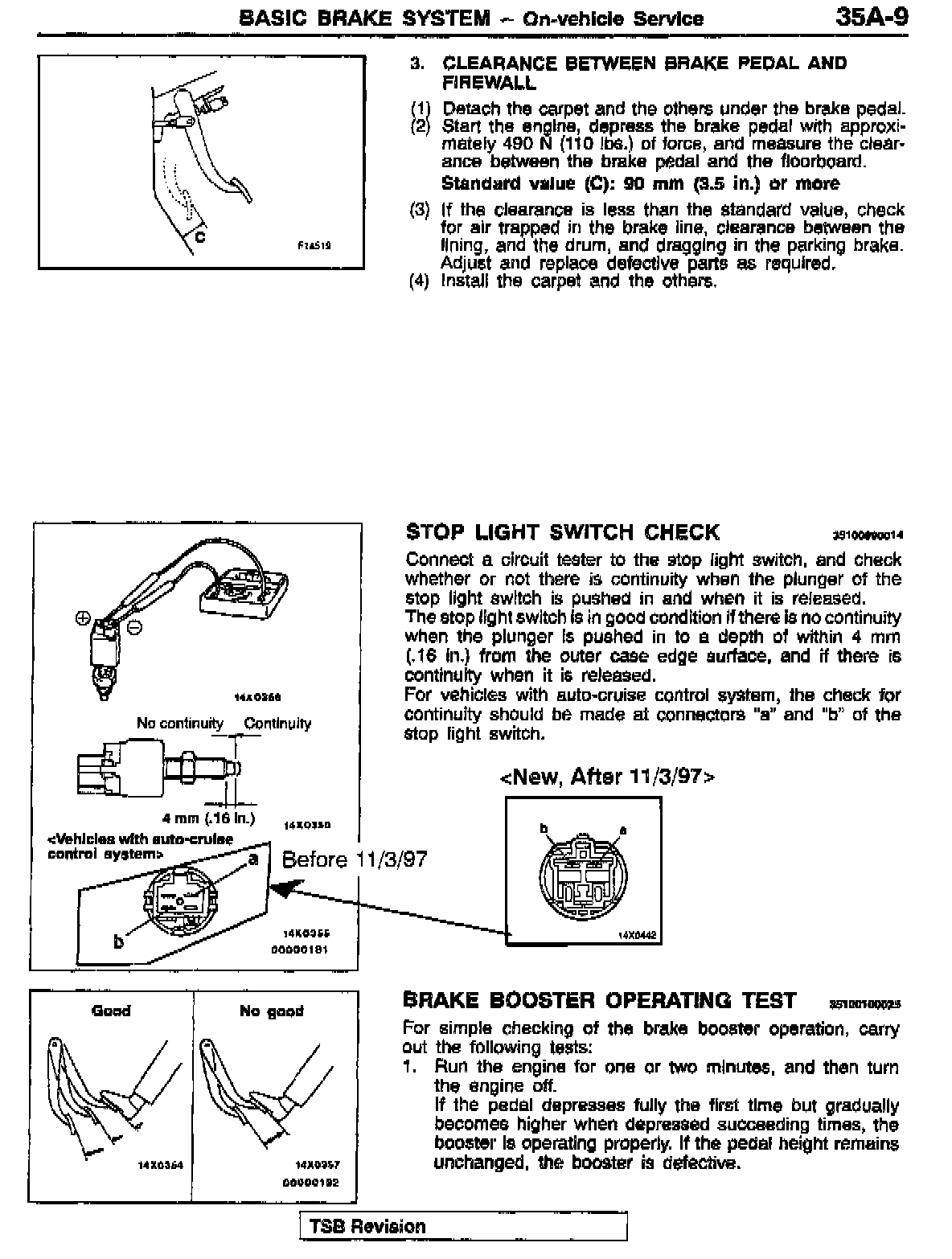

1998 Galant Service Manual, Volume 2, Page 35A-9
Add the new stop light switch related information as shown:

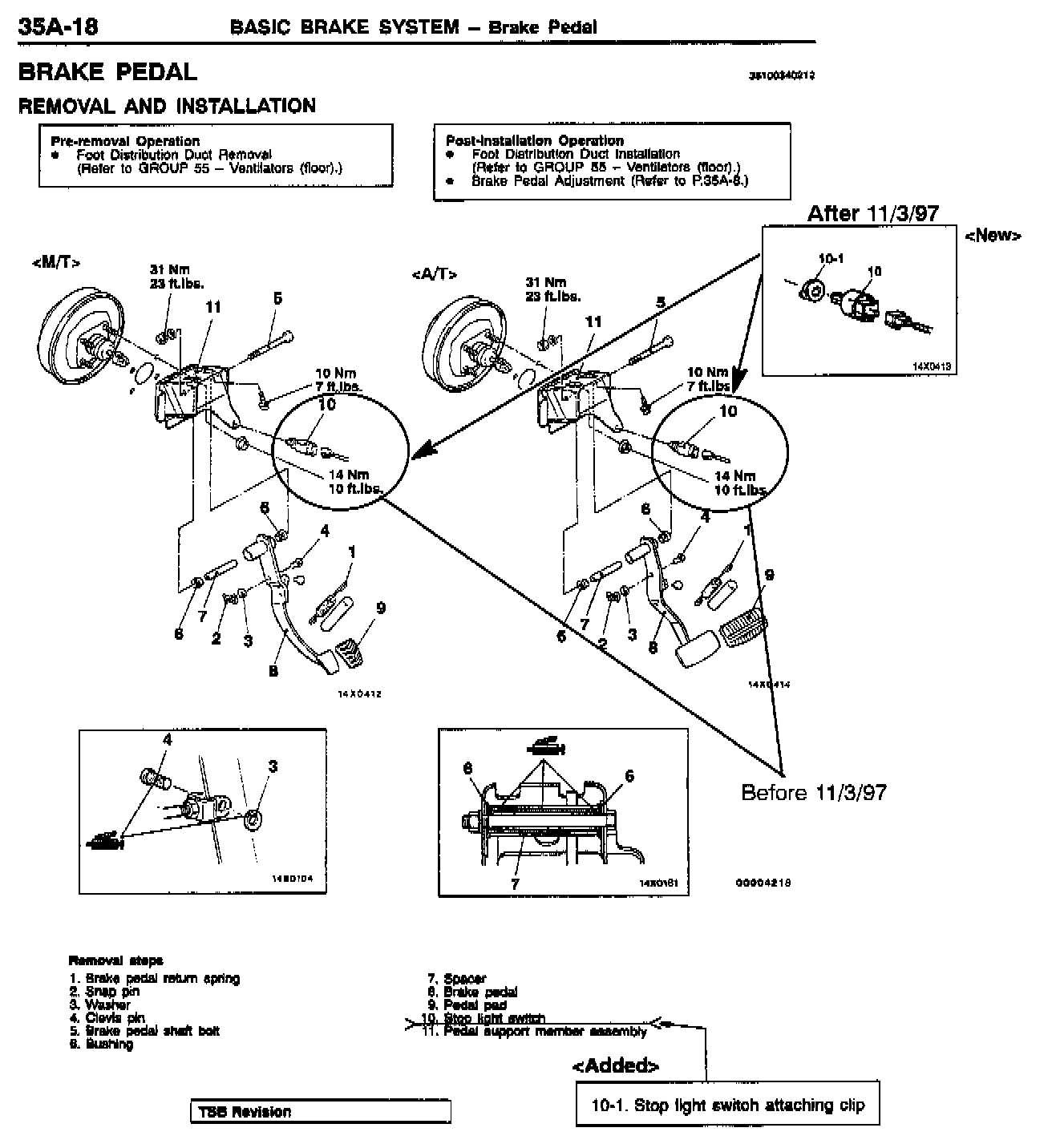

1998 Galant Service Manual, Volume 2, Page 35A-18
Add the new stop light switch related information as shown:
