Sub

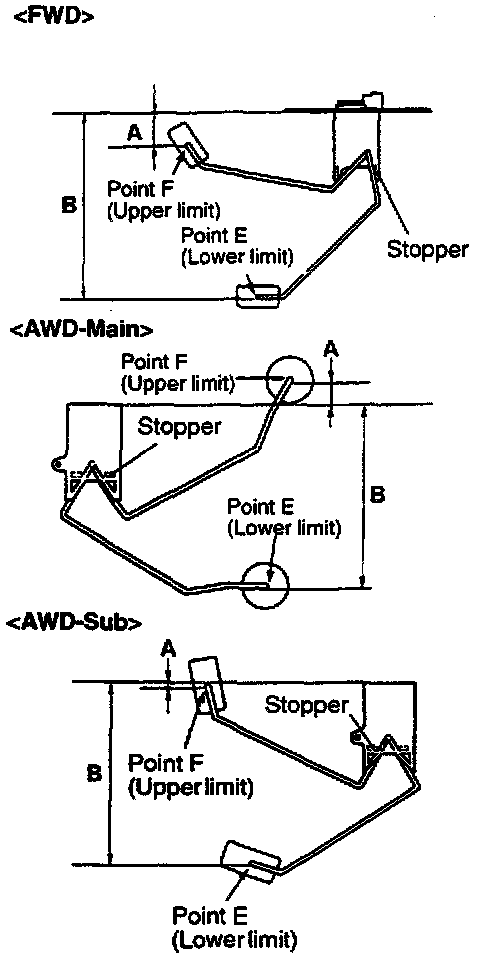

Move the float and measure the height A at point F (highest) and B at point E (lowest) with float arm touching stopper.
Standard value:
A: 3.0 ± 3 mm (0.12 ± 0.12 in.)
B: 126.7 ± 3 mm (5.0 ± 0.12 in.)
