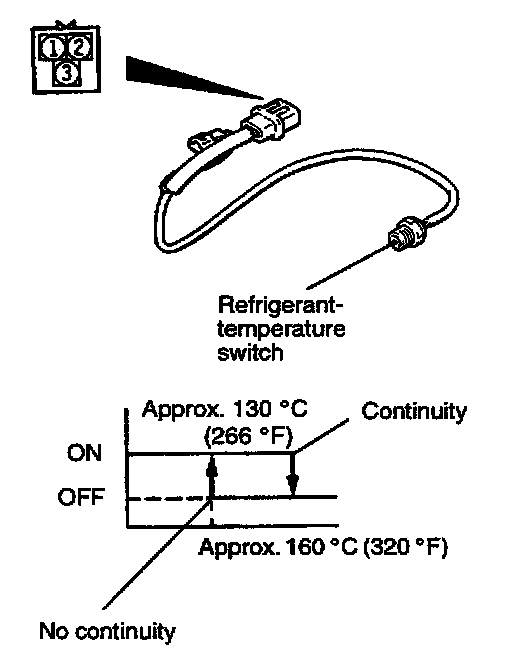

Refrigerant Temperature Sensor: Testing and Inspection

1. Immerse the refrigerant-temperature switch in engine oil.
2. Use an ohmmeter to check the continuity between the terminals 1 or 2 when the engine oil has become heated.

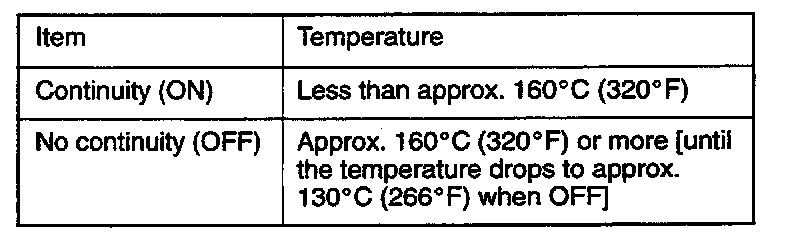

Standard value:

CAUTION: Do not heat the oil more than necessary.
