Air Conditioning Switch: Service and Repair

INSTALLATION SERVICE POINT

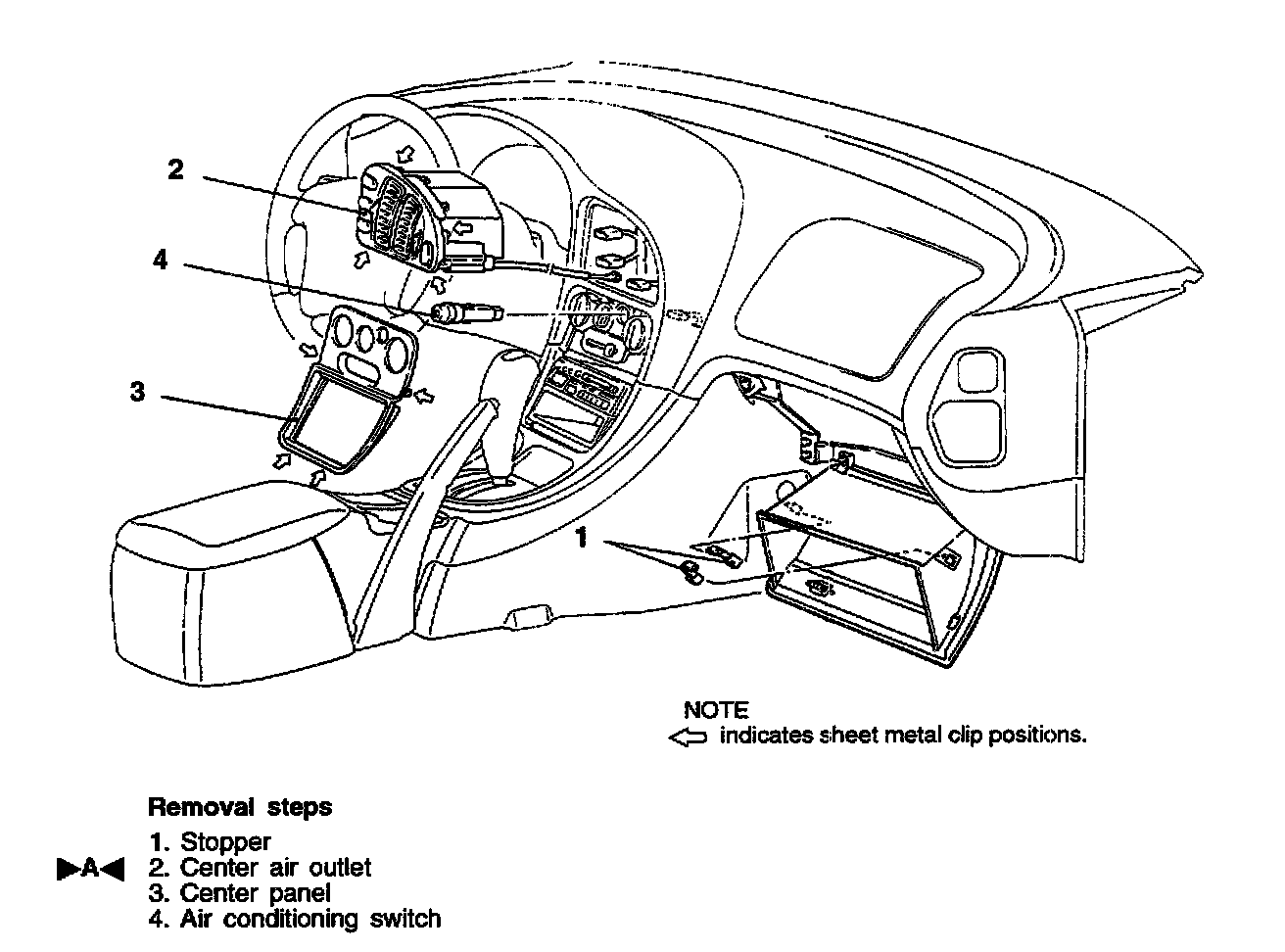

A CENTER AIR OUTLET INSTALLATION

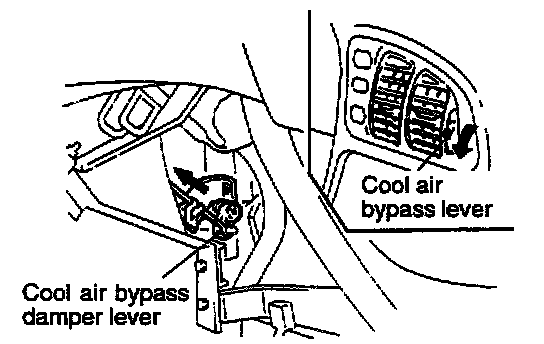

1. Turn the cool air bypass lever of the center air outlet fully downward.
2. Pull the cool air bypass damper lever on the heater unit side all the way toward you, and then connect the cable to the lever pin.
3. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with the clip.
