Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 2. Communication With Scan Tool Impossible (SRS Only)

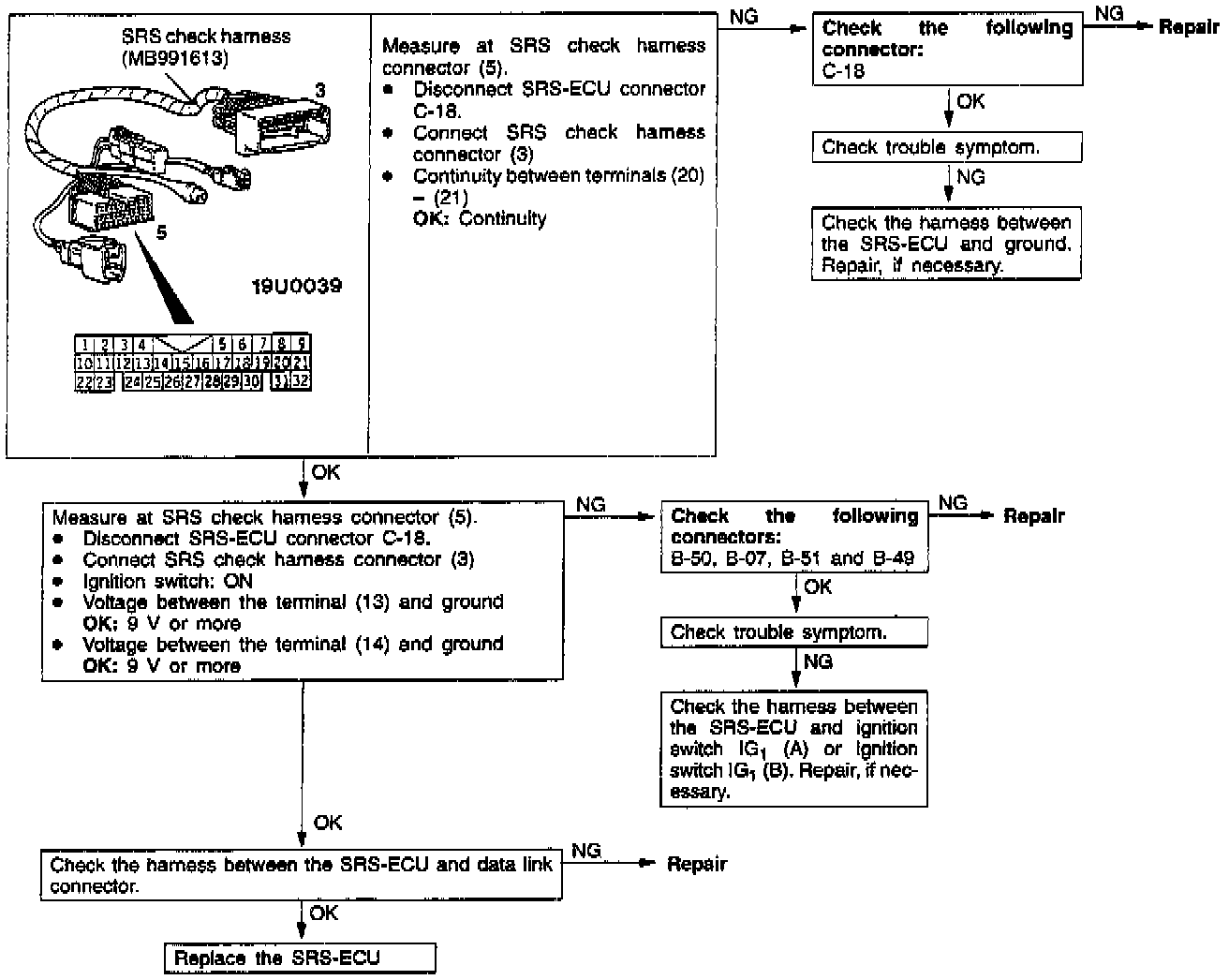

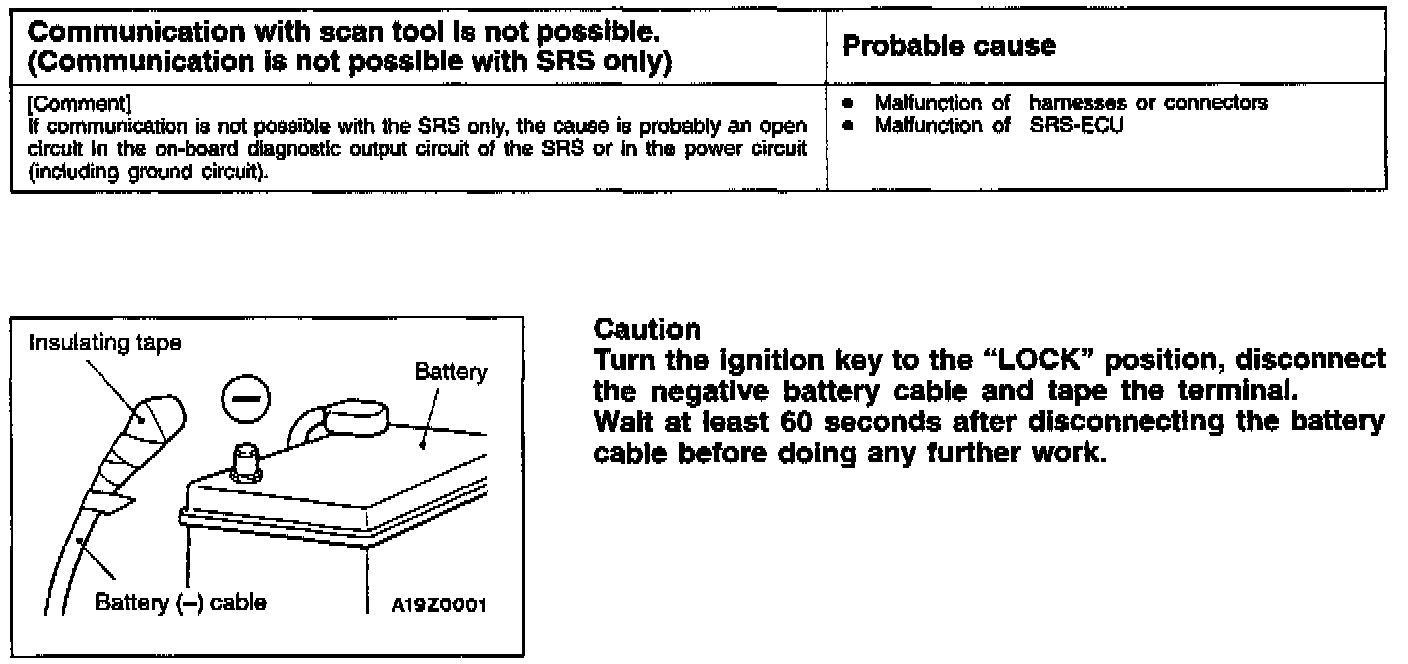

2. Communication With Scan Tool Impossible (SRS Only)

Part No 1 Of 2:



Part No 2 Of 2:
