Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Data List Reference Table

Data List Reference Table

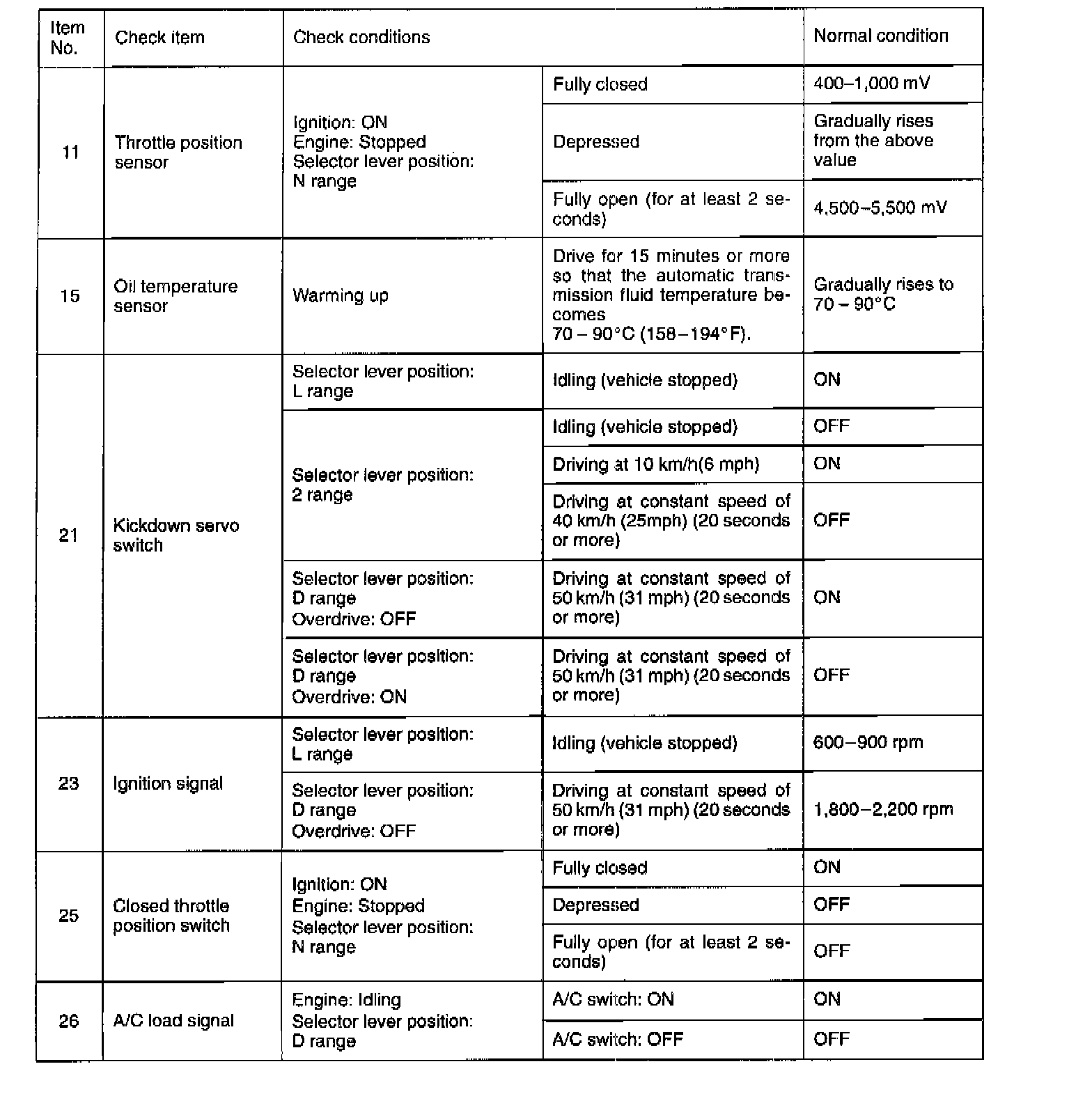

PART 1 OF 3

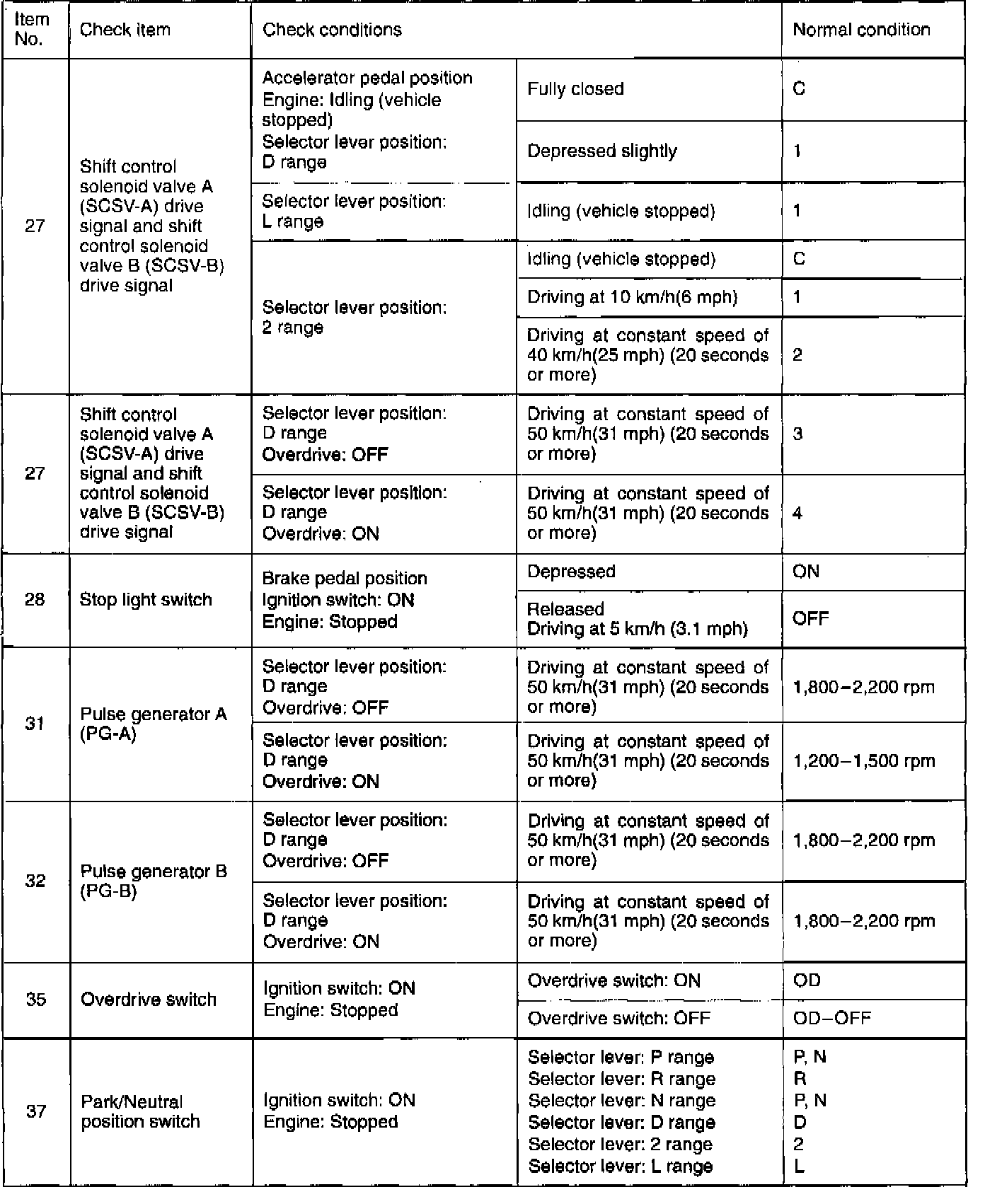

PART 2 OF 3






PART 3 OF 3
