Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Oscilloscope Patterns and Waveforms

Oscilloscope Patterns and Waveforms

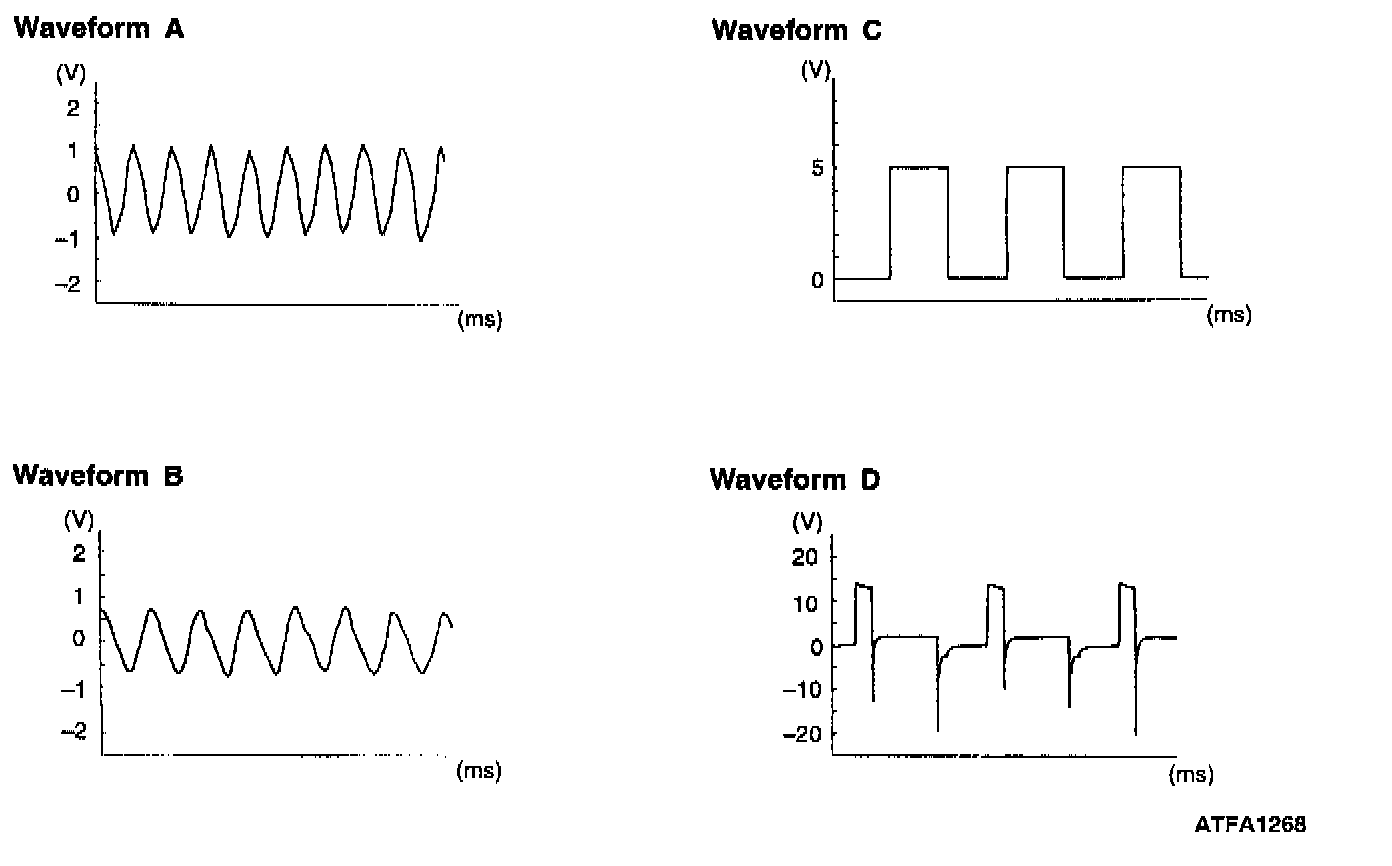

PART 1 OF 2

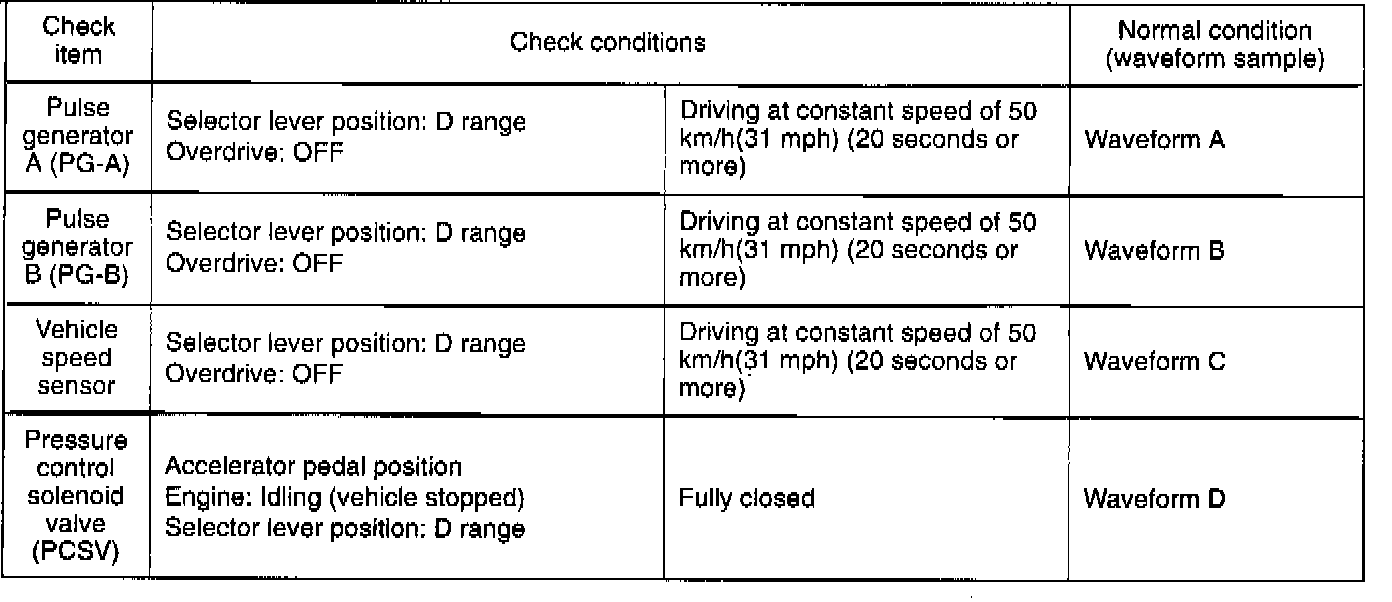

PART 2 OF 2
