Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

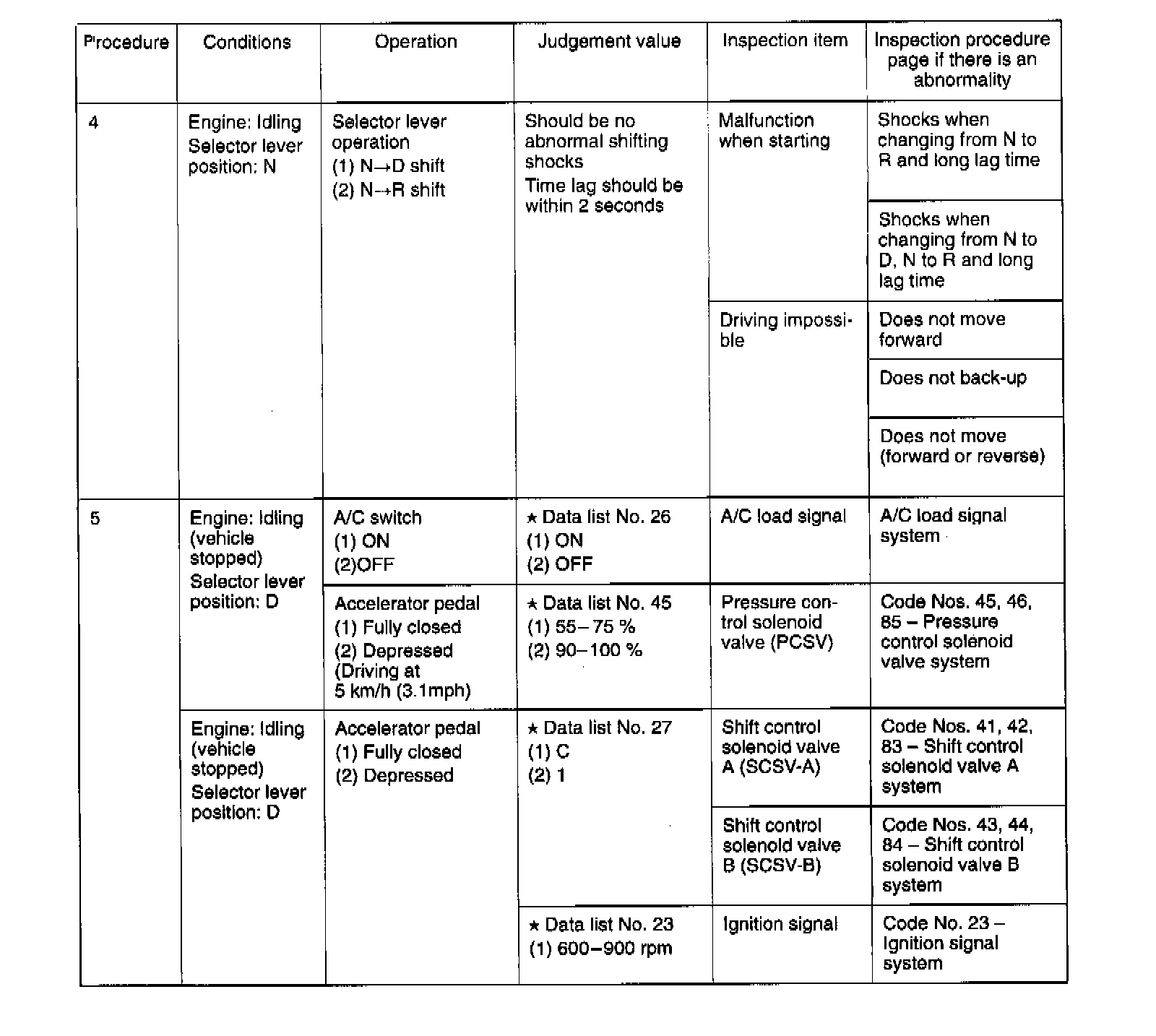

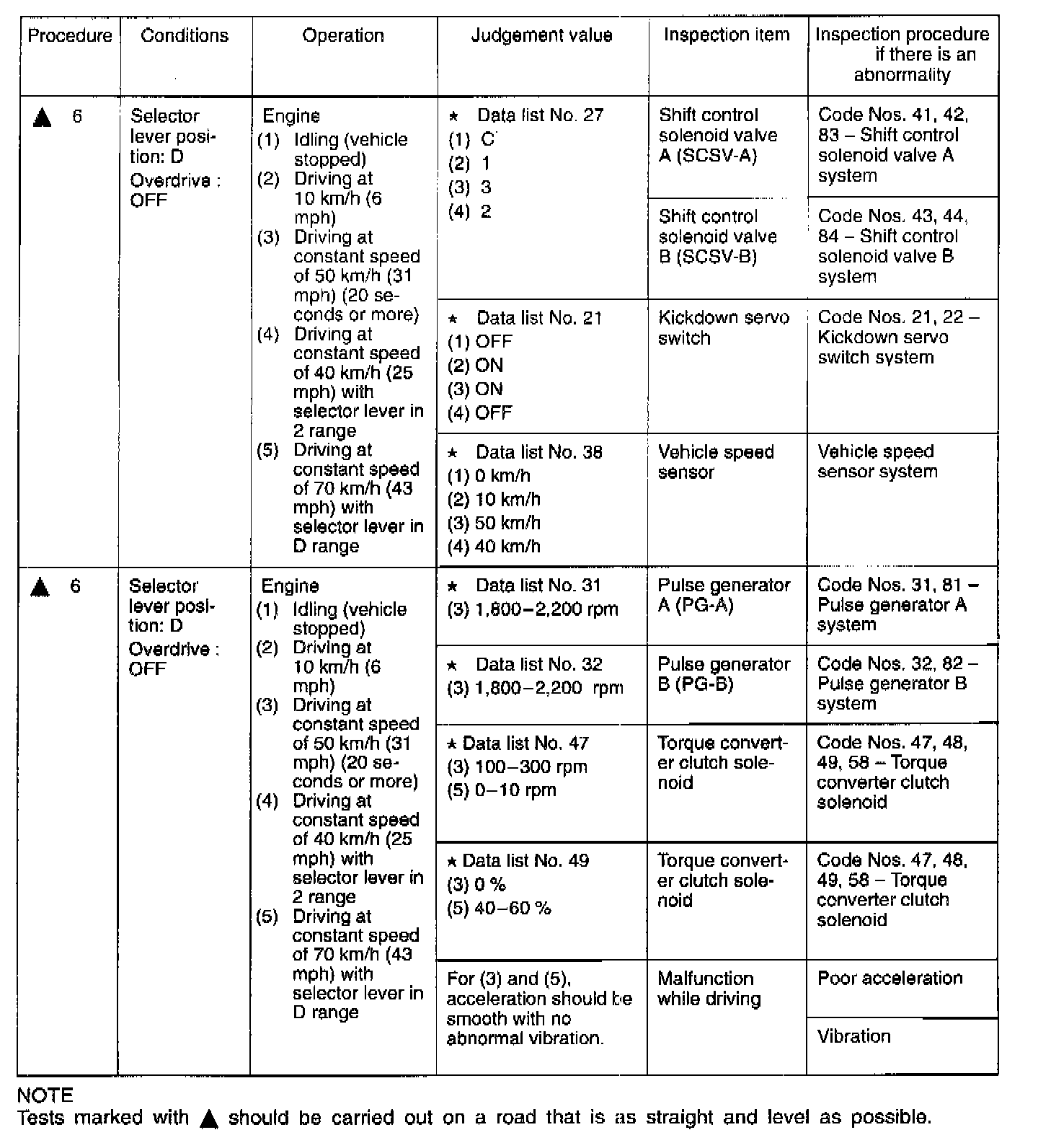

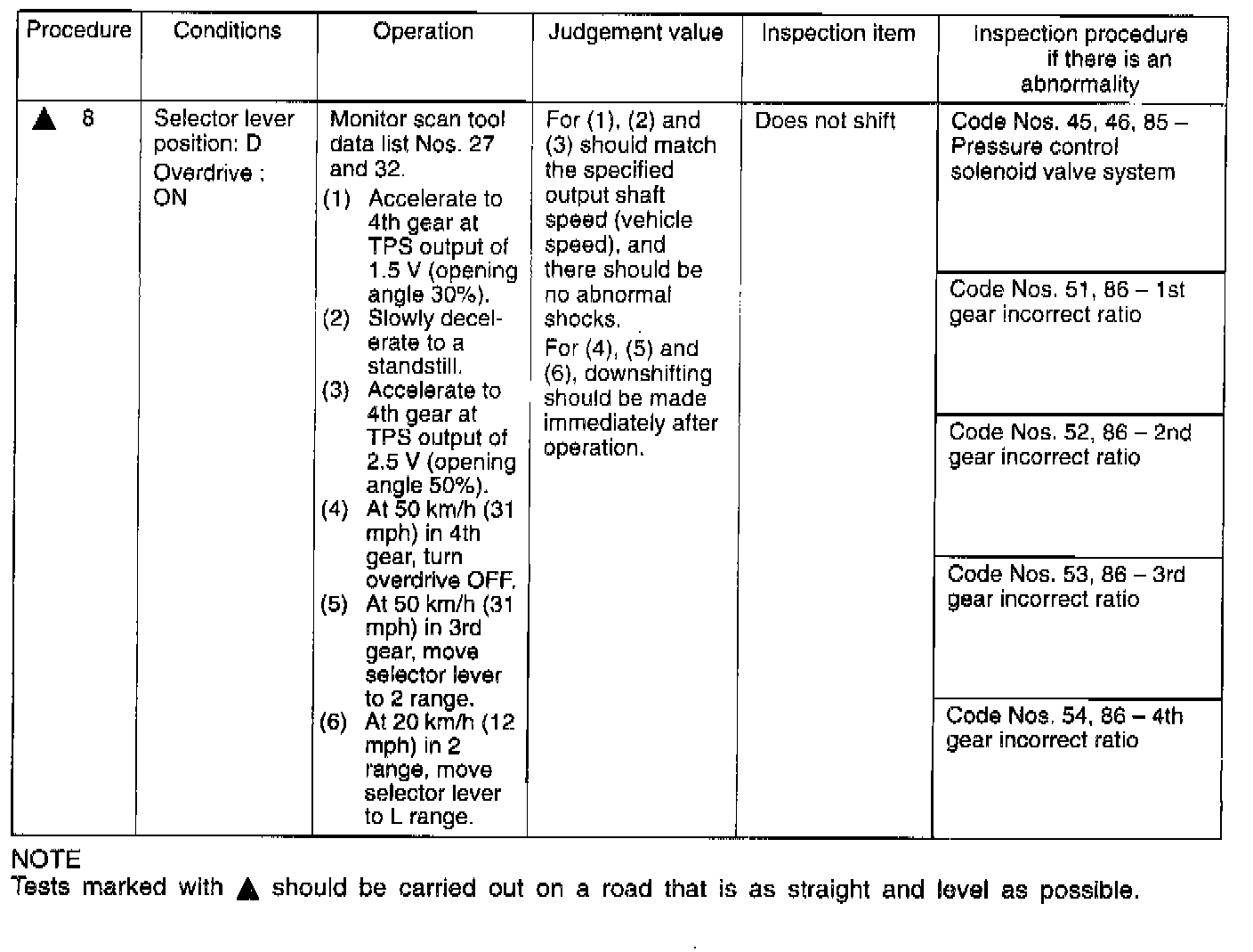

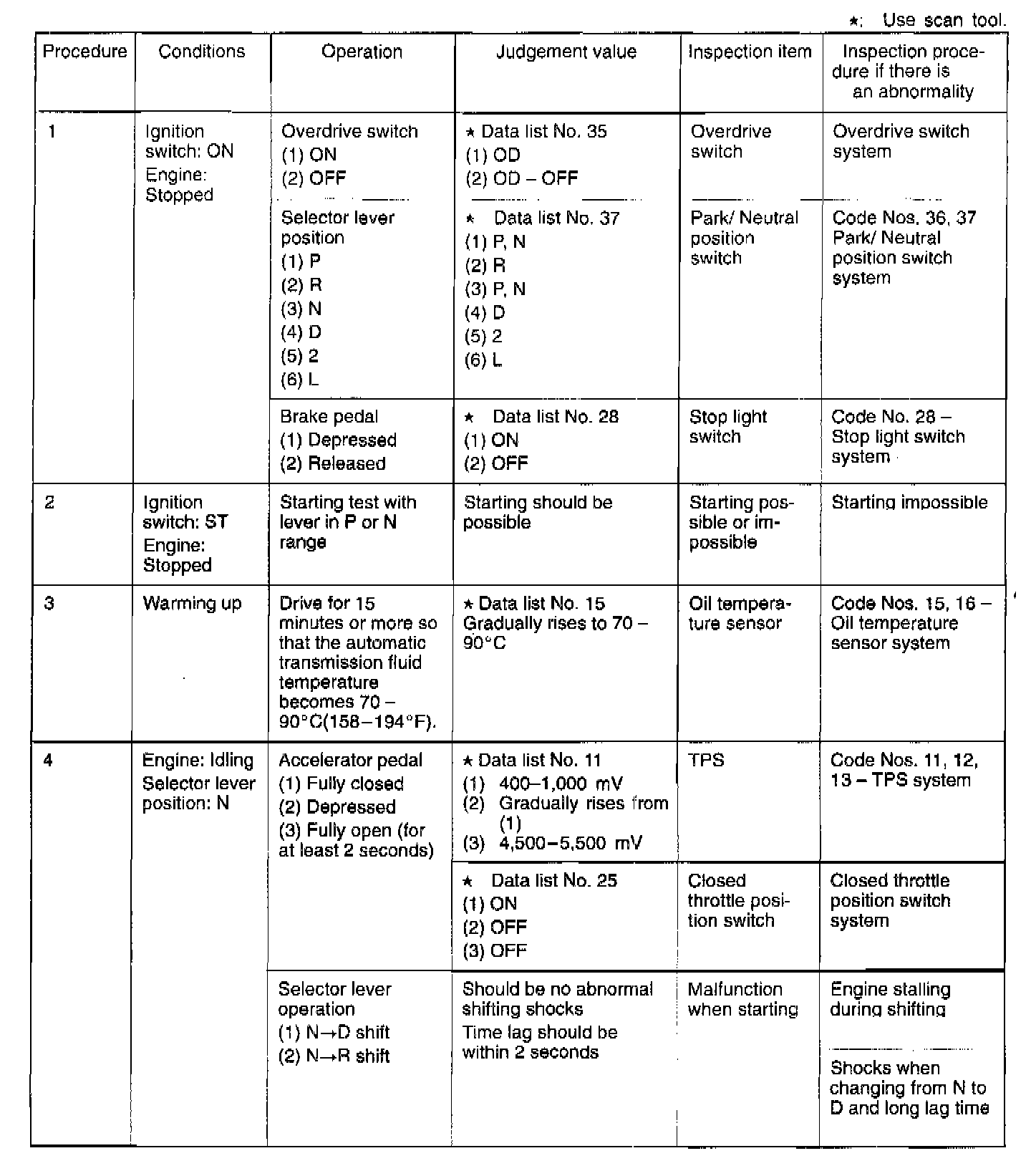

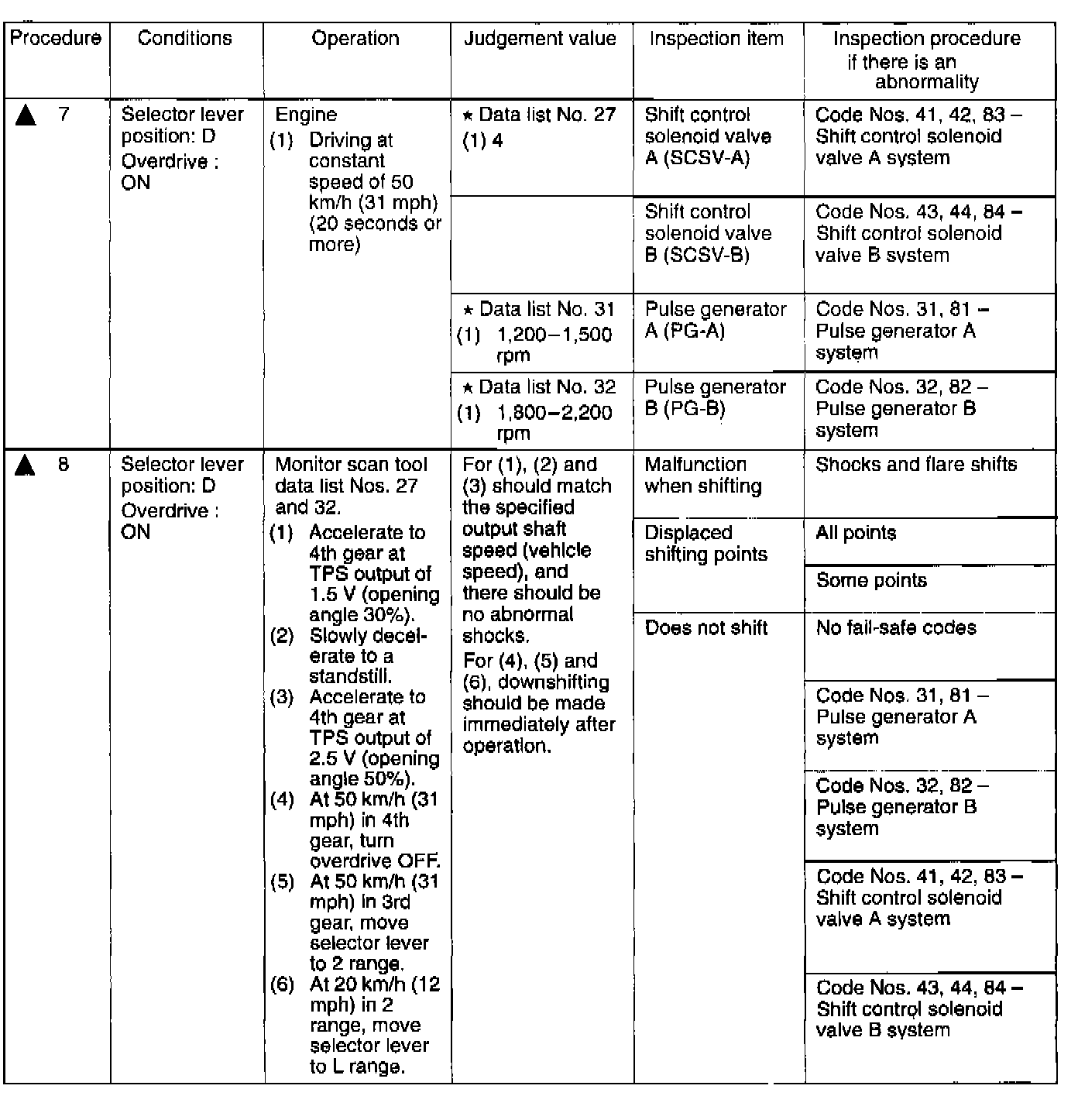

ROAD TEST PART 1 OF 5






ROAD TEST PART 1 OF 5






ROAD TEST PART 1 OF 5






ROAD TEST PART 1 OF 5






ROAD TEST PART 1 OF 5

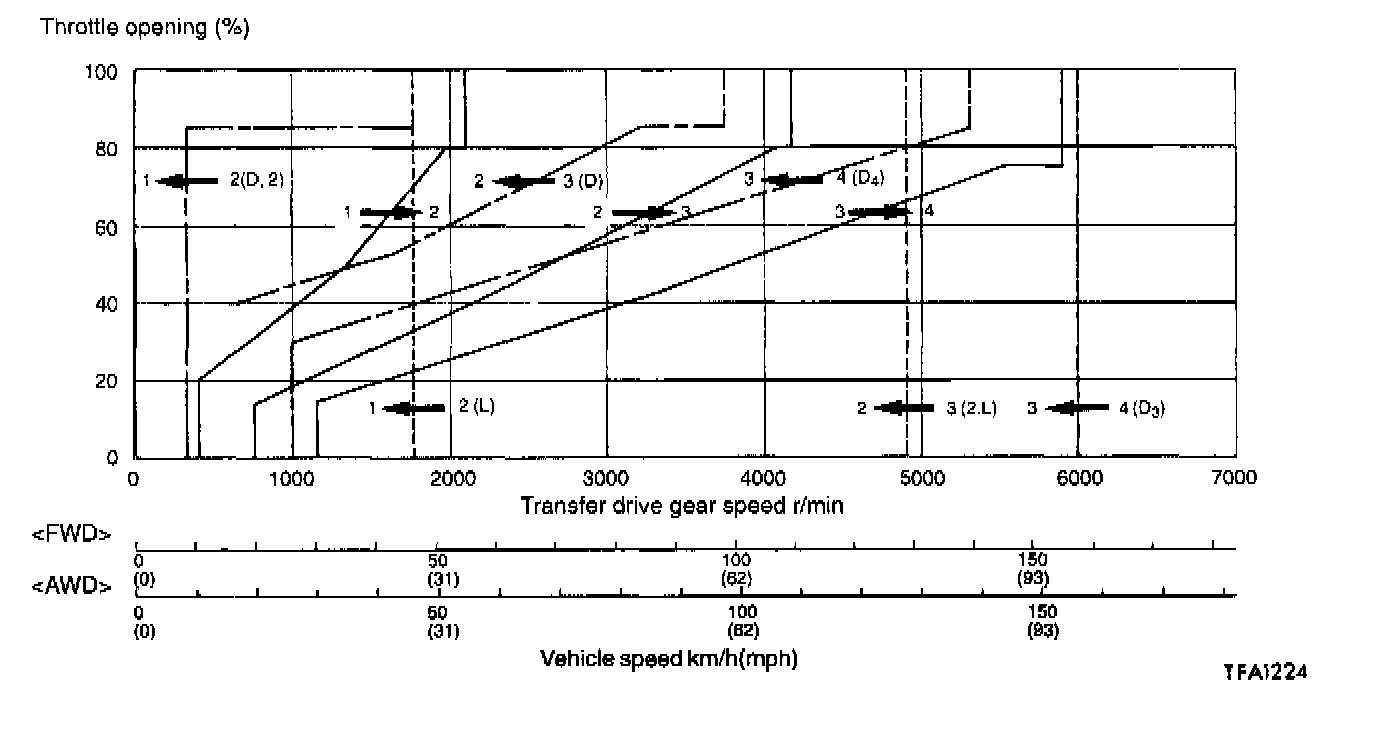

SHIFT PATTERN
