Pressure Regulating Solenoid: Testing and Inspection

PRESSURE CONTROL SOLENOID VALVE (PCSV) CHECK





1. Disconnect the PCSV connector.

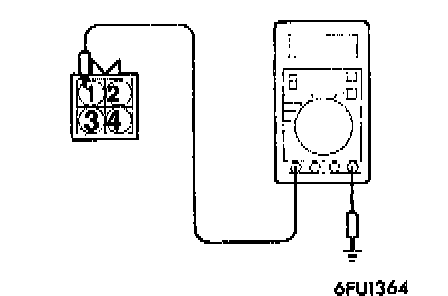

2. Measure the resistance between the PCSV side connector terminal 1 and the body ground.

Standard value: Approximately 3 ohms let 20°C (68°F)]

3. If the resistance is outside the standard value, replace the solenoid valve assembly.
