Component Tests and General Diagnostics

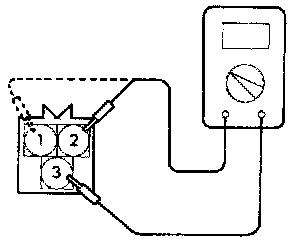

Primary Coil Resistance
Measure the resistance between connector terminal 3 (power) and each coil terminal.
Measuring point:
No. 1 - No. 4 cylinder side coil; 2-3
No. 2 - No. 3 cylinder side coil; 1-3
Standard value: O.7O-O.86 Ohm

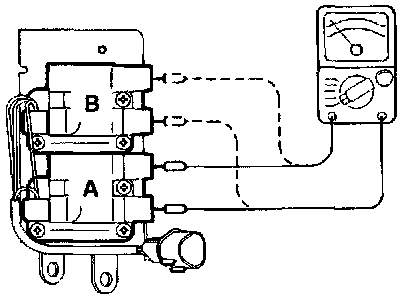

Secondary Coil Resistance
Measure the resistance between coil high voltage terminals.
Measuring point:
No. 1 - No. 4 cylinder side coil; A
No. 2 - No. 3 cylinder side coil; B
Standard value: 11.3-15.3 k Ohm
