Intercooler: Service and Repair

REMOVAL
Pre-removal Operation:
- Front Bumper Removal.

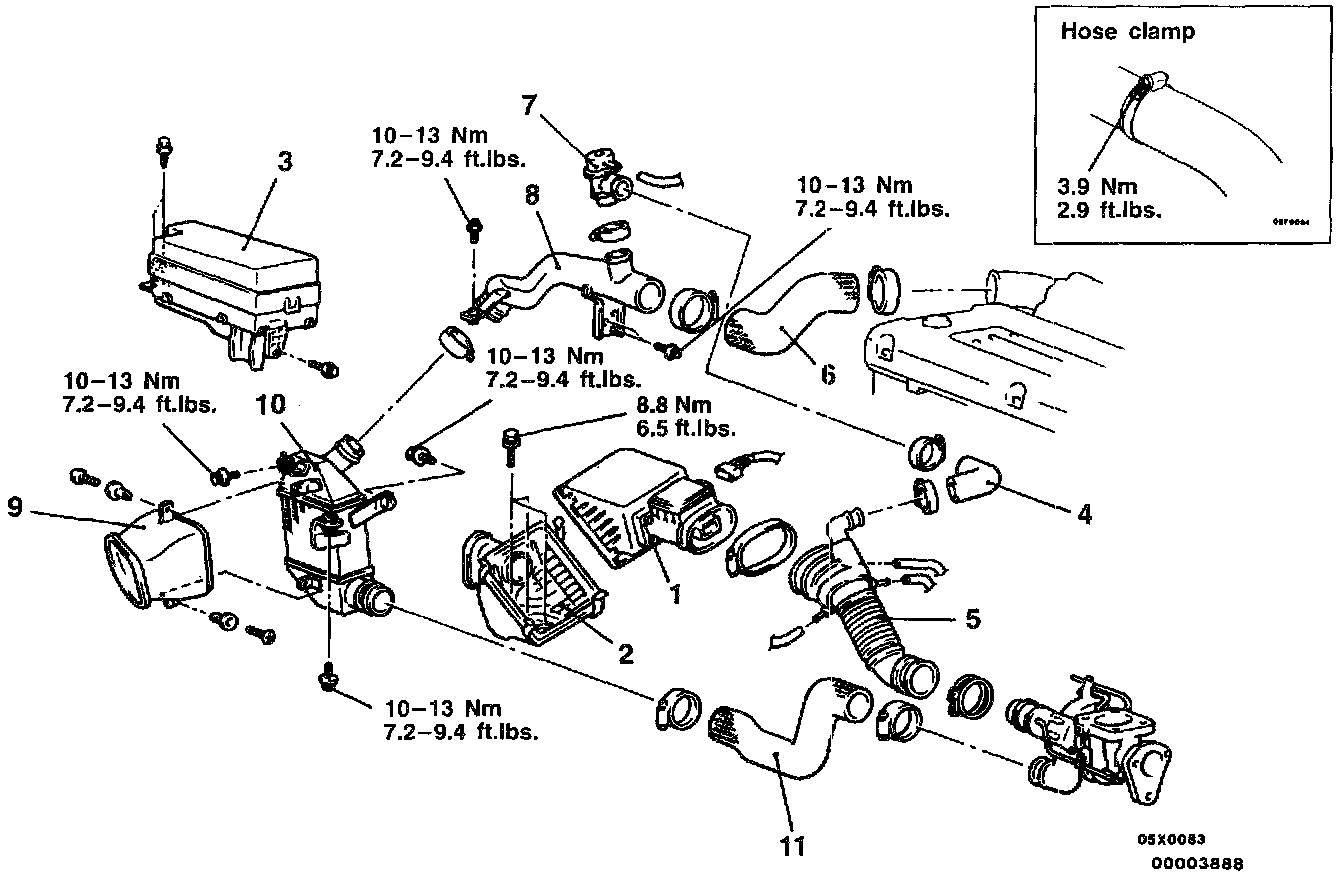

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation:
- Front Bumper Installation.

INSPECTION
- Check the charge air cooler fins for bending, damage, or foreign matter.
- Check the charge air cooler hoses for cracking, damage, or wear.
