Air Bypass Valve: Testing and Inspection

1. Remove the turbocharger bypass valve.
2. Connect the hand vacuum pump to the nipple of the turbocharger bypass valve.

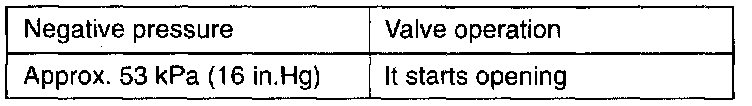

3. Apply a negative pressure of approximately 53 kPa (16 inch Hg) and check operation of the valve. Also check that air tightness is maintained.
