Replacement

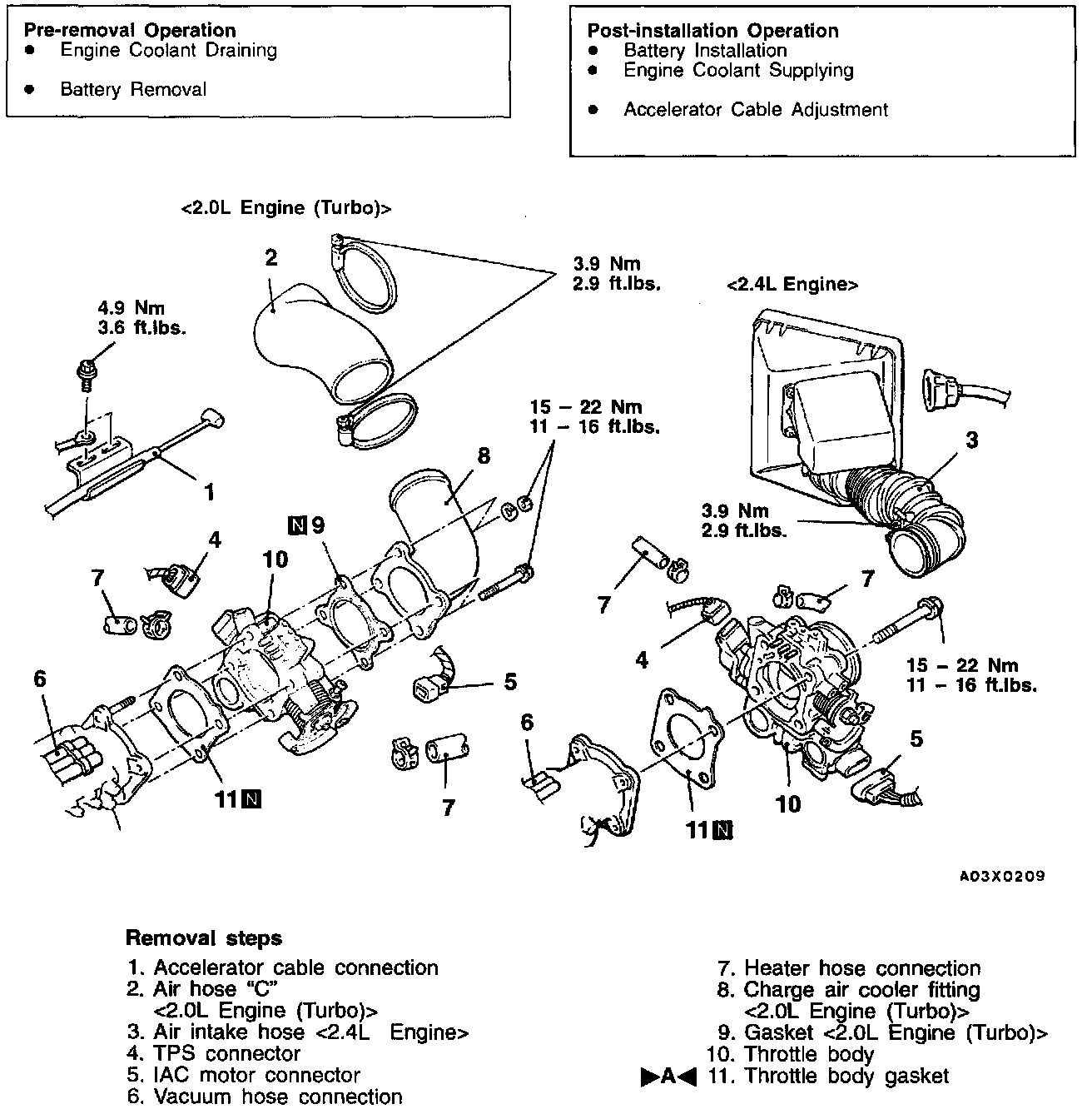

REMOVAL AND INSTALLATION




THROTTLE BODY GASKET INSTALLATION

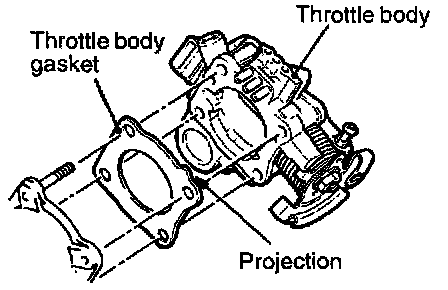

Install the throttle body gasket so that the projection is where shown in the illustration.

CAUTION: Poor idling etc.. may result if the throttle body gasket is installed incorrectly.




DISASSEMBLY AND REASSEMBLY

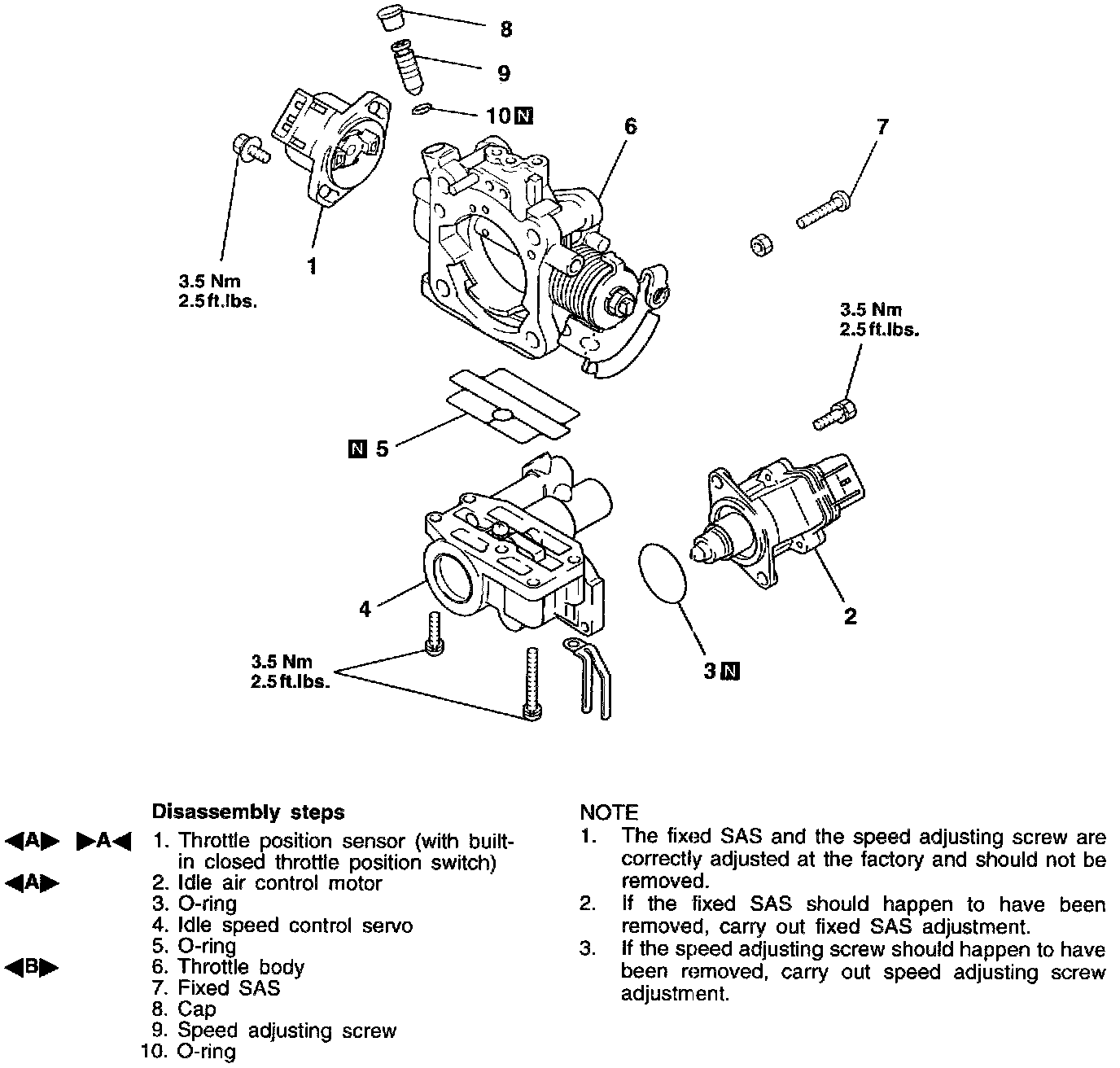

THROTTLE POSITION SENSOR AND IDLE AIR CONTROL MOTOR REMOVAL
1. Do not disassemble the sensor and motor.
2. Do not immerse solvent to clean the sensor and motor. Clean then with shop towel.

CAUTION:
1. Do not remove the throttle valve.
2. Check it the vacuum port or passage is clogged. Use compressed air to clean the vacuum passage.




THROTTLE POSITION SENSOR INSTALLATION

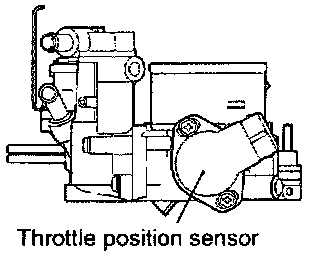

(1) Install the throttle position sensor to the throttle body as shown in the diagram.

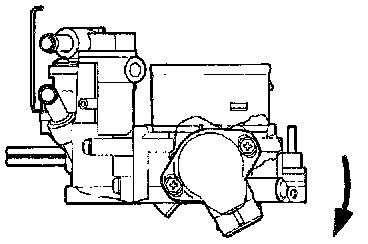

(2) Turn throttle position sensor 90° clockwise to set it, and tighten screws.

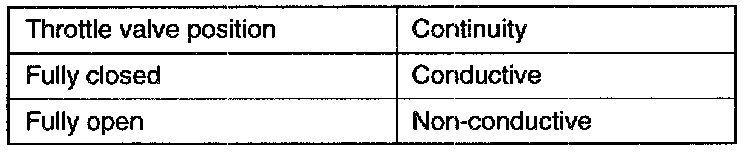

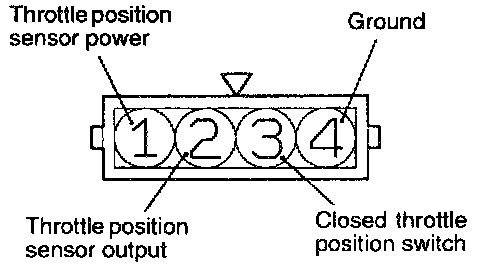

(3) Check for continuity between terminals No. 3 (closed throttle position switch) and No.4 (ground).




(4) If there is not continuity with the throttle valve fully closed, turn the throttle position sensor counterclockwise, and then check again.
