Fuel Injector Resistor: Testing and Inspection

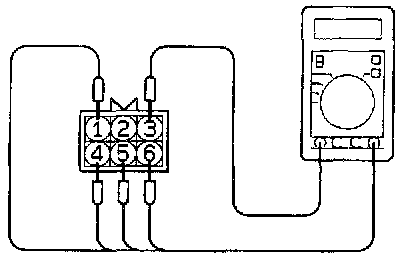

MEASUREMENT OF RESISTANCE BETWEEN TERMINALS
1. Disconnect the resistor connector.

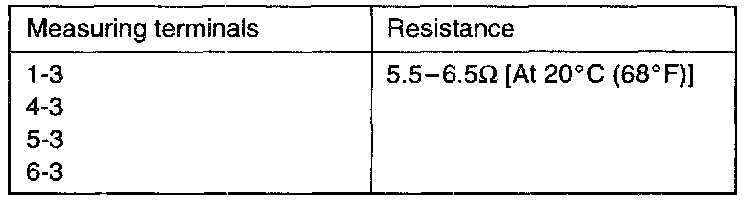

2. Measure the resistance between terminals.




3. If the resistance is out of specification, replace the resistor.
