Fuel Filter: Service and Repair

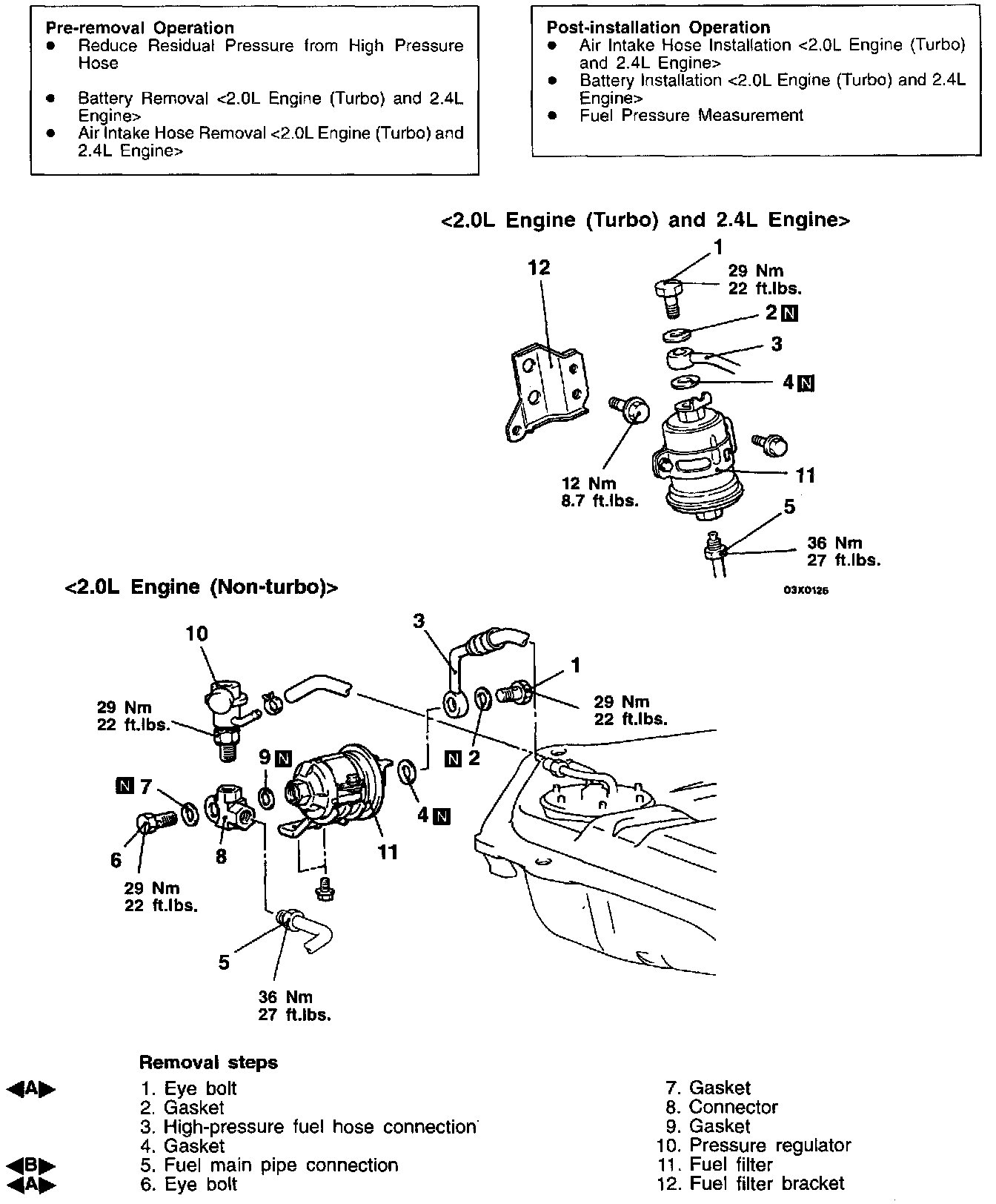

REMOVAL AND INSTALLATION




EYE BOLT REMOVAL
Hold the fuel filter with a spanner arid remove the eye bolt

CAUTION: As there will be some pressure remaining in the fuel pipe line, cover it with a shop towel to prevent fuel from spraying out.




FUEL MAIN PIPE DISCONNECTION
Hold the fuel filter with a spanner and loosen the flare nut. Then disconnect the fuel main pipe.
