Purge Port Vacuum

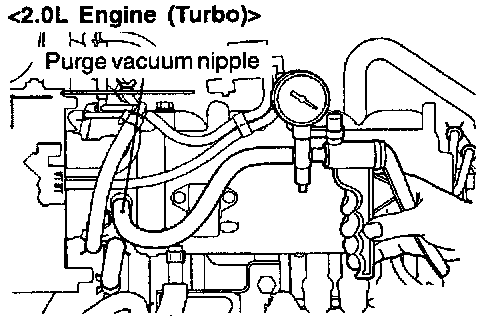

1. Disconnect the vacuum hose from the intake manifold purge vacuum nipple and connect a hand vacuum pump to the nipple.

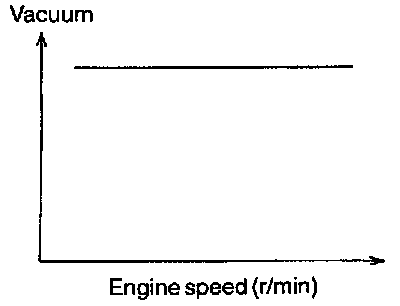

2. Vacuum is kept constant despite the increased engine speed.

NOTE: If no vacuum is generated, the intake manifold purge port may be clogged.
