Canister Vent Valve: Testing and Inspection

EVAPORATIVE EMISSION VENTILATION SOLENOID CHECK

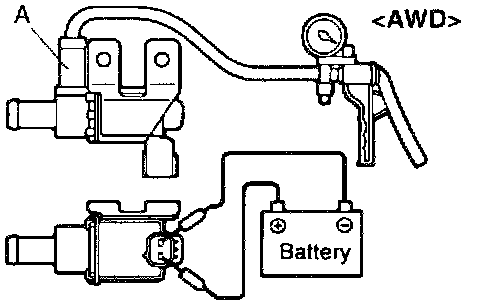

(1) Connect a hand vacuum pump to nipple (A) of the solenoid.

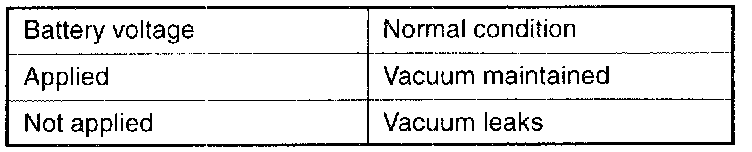

(2) Check airtightness by applying a vacuum with voltage applied directly from the battery to the evaporative emission ventilation solenoid and without applying voltage.

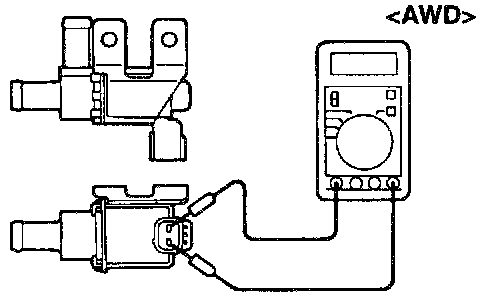

(3) Measure the resistance between the terminals of the solenoid.

Standard value: 17-21 ohms at 20°C (68°F)
