Input/Output State Tests Reference Tables

CAUTION:
1. Always apply the brakes when shifting the selector lever to D range, or vehicle will move forward.
2. Driving tests always need another person.

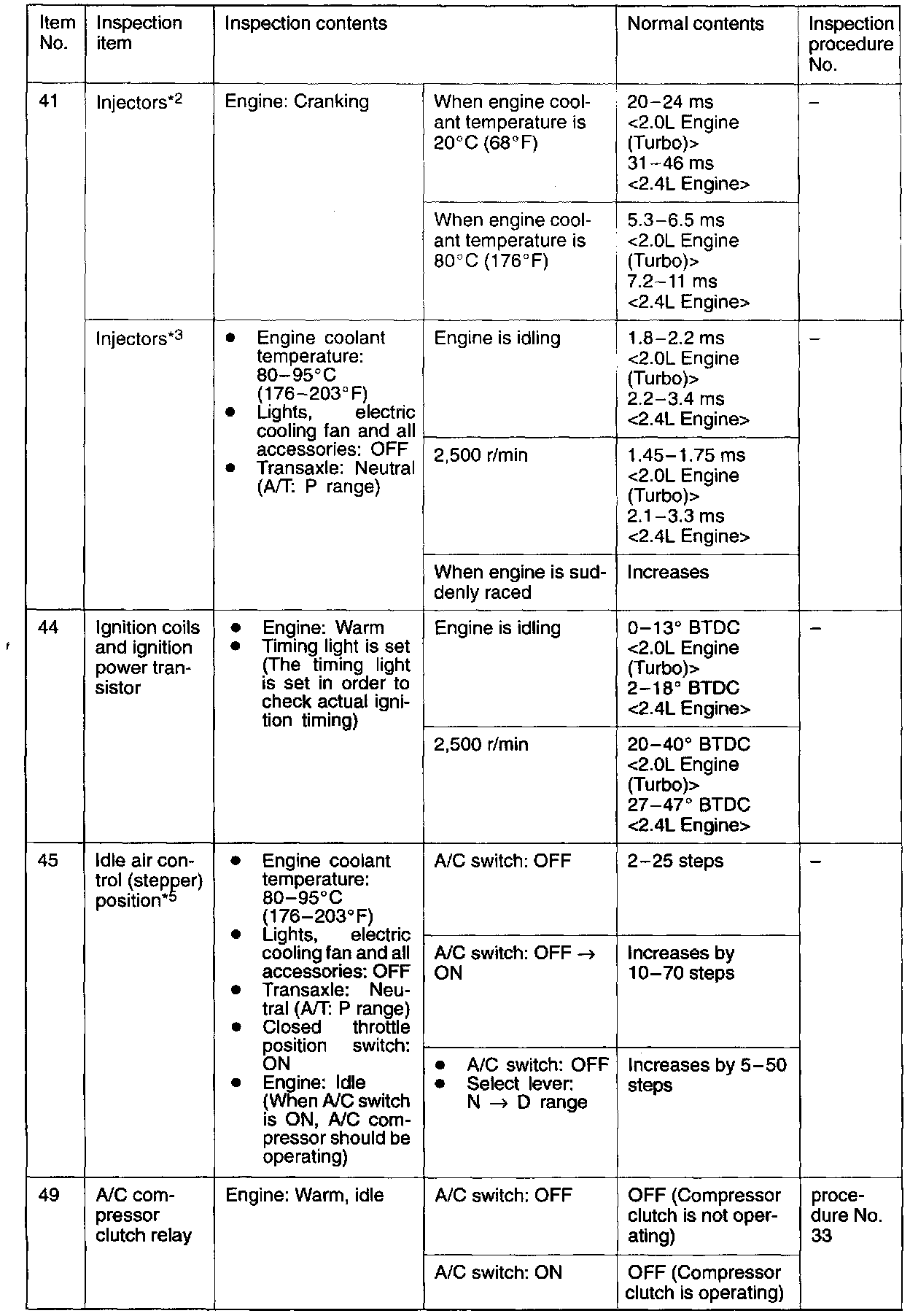

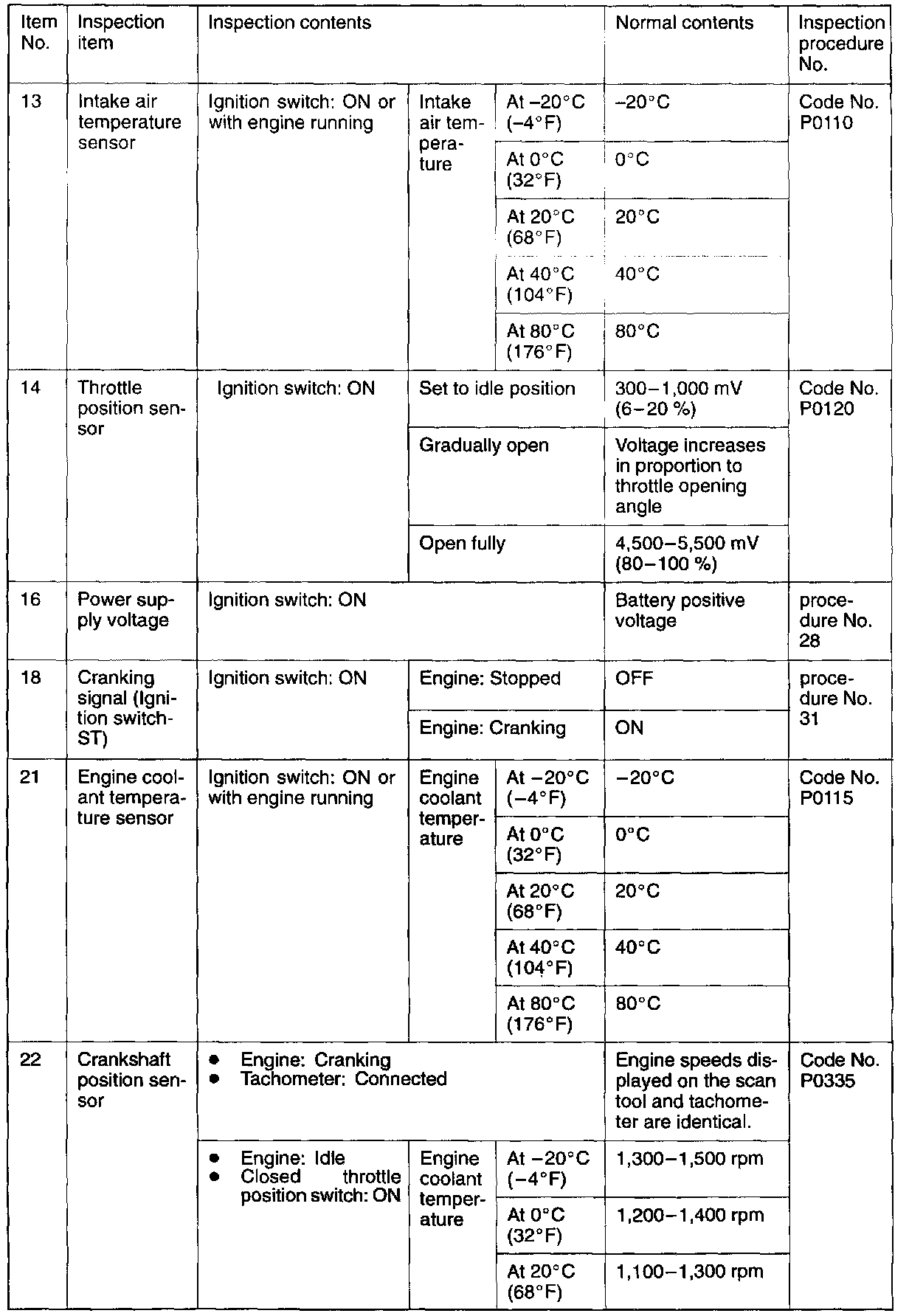

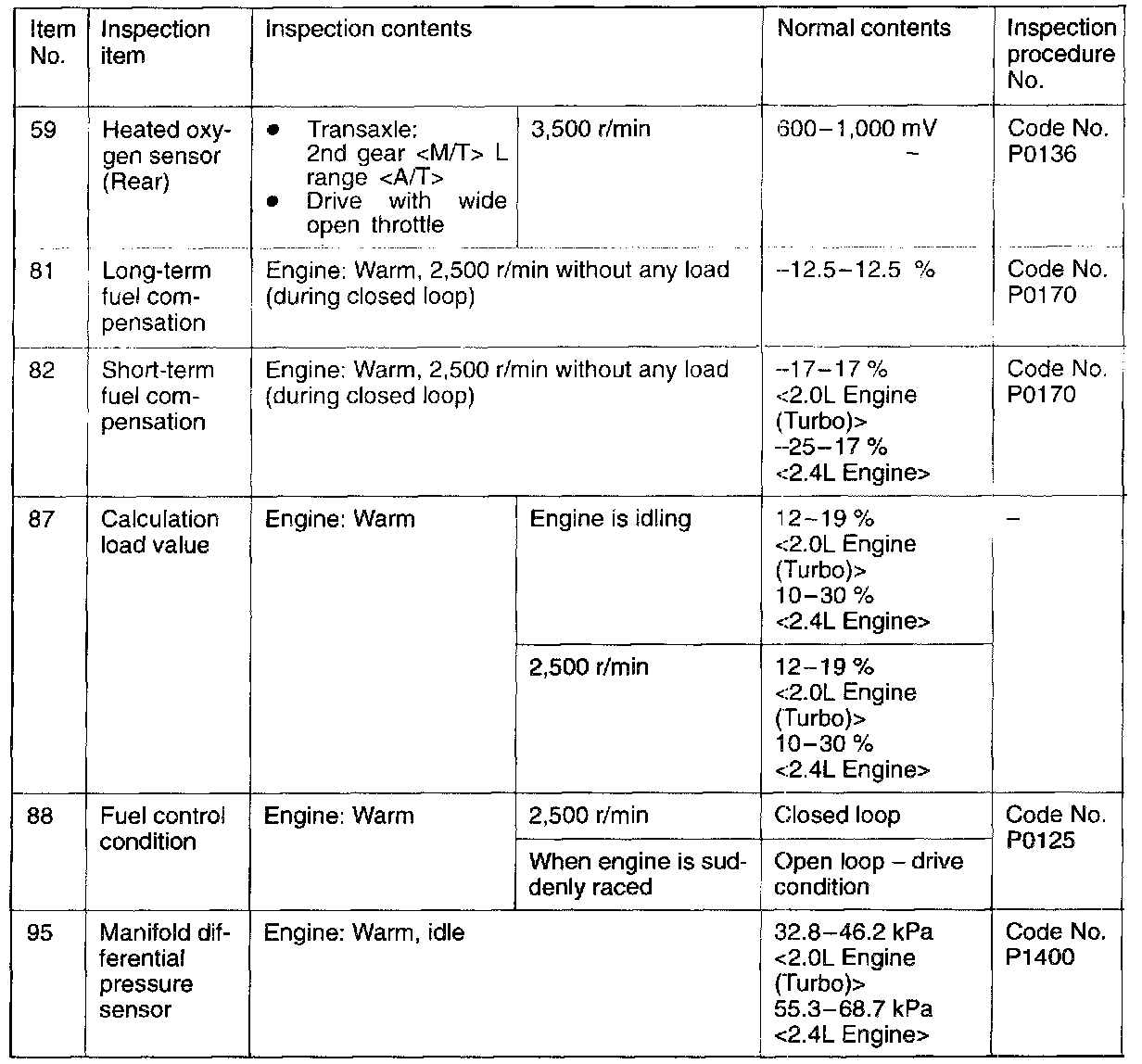

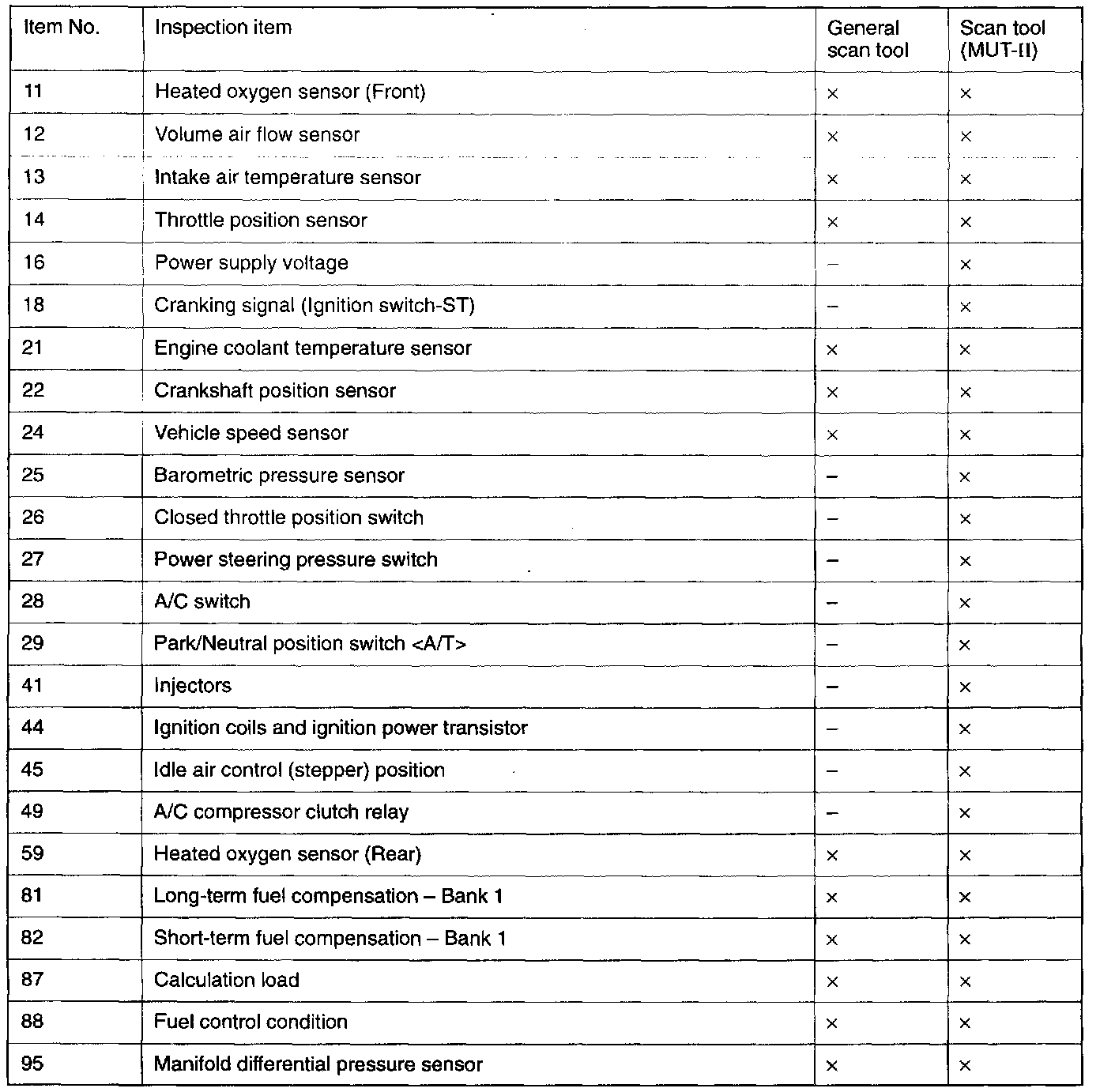

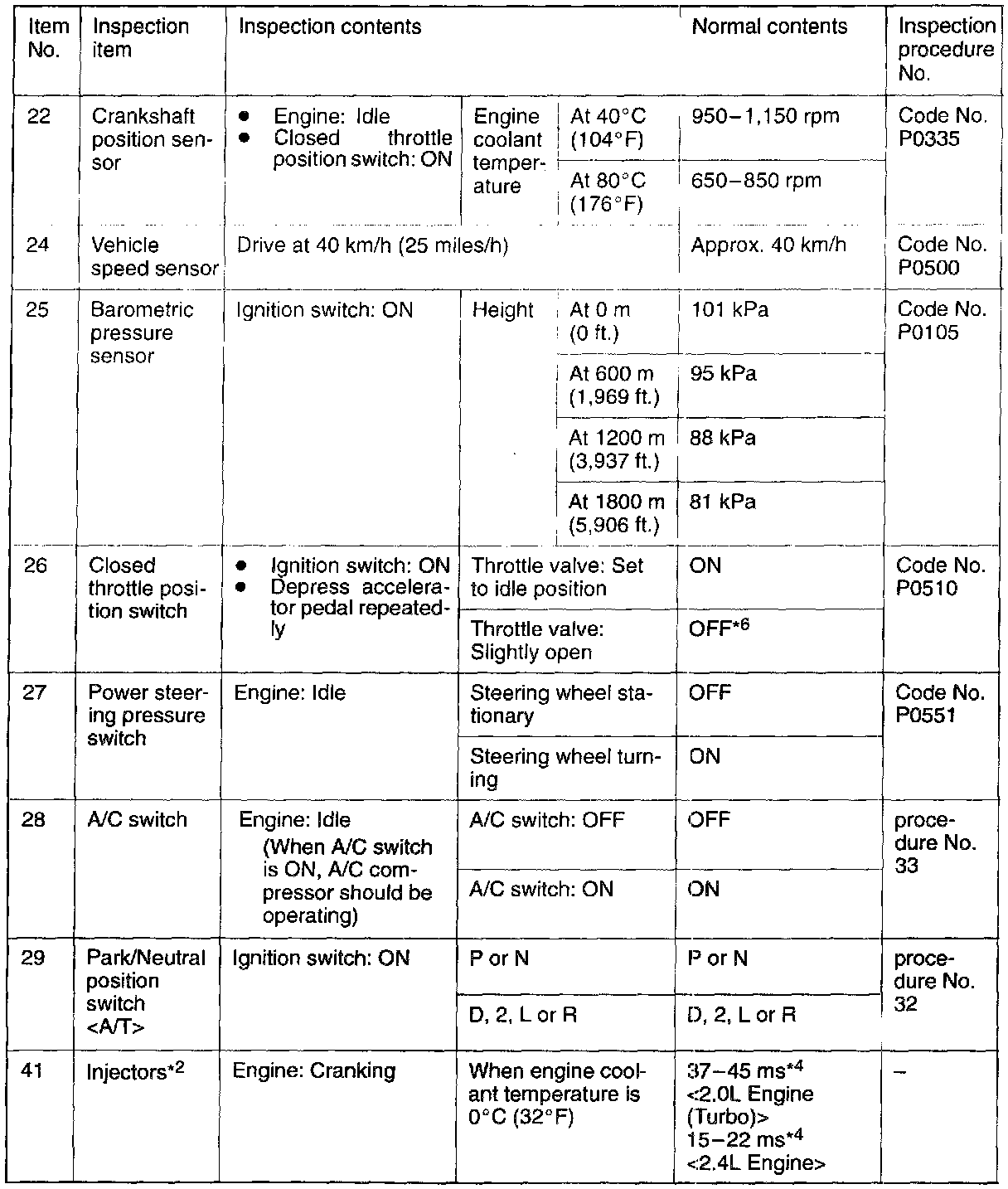

DATA LIST REFERENCE TABLE

NOTE:
*1: In a new vehicle [driven approximately 500 km (300 mile) or less] the volume air flow sensor output frequency is sometimes 10 % higher than the standard frequency.
*2: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 V.
*3: In a new vehicle [driven approximately 500 km (300 mile) or less], the injector drive time is sometimes 10 % longer than the standard time.
*4: Fuel is injected into all cylinders simultaneously.
*5: In a new vehicle [driven approximately 500 km (300 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.
*6: If the throttle position sensor voltage rises 50 - 100 mV from the voltage when the engine is at idle and the closed throttle position switch turns from on to off at this time, the sensors are normal. If the throttle position sensor voltage rises 100 mV from the voltage when the engine is at idle, the throttle valve opens, and the closed throttle position switch turns from on to off at this time, the sensors should be adjusted.
















TROUBLESHOOTING GUIDE
