Component Tests and General Diagnostics

VACUUM HOSE CHECK

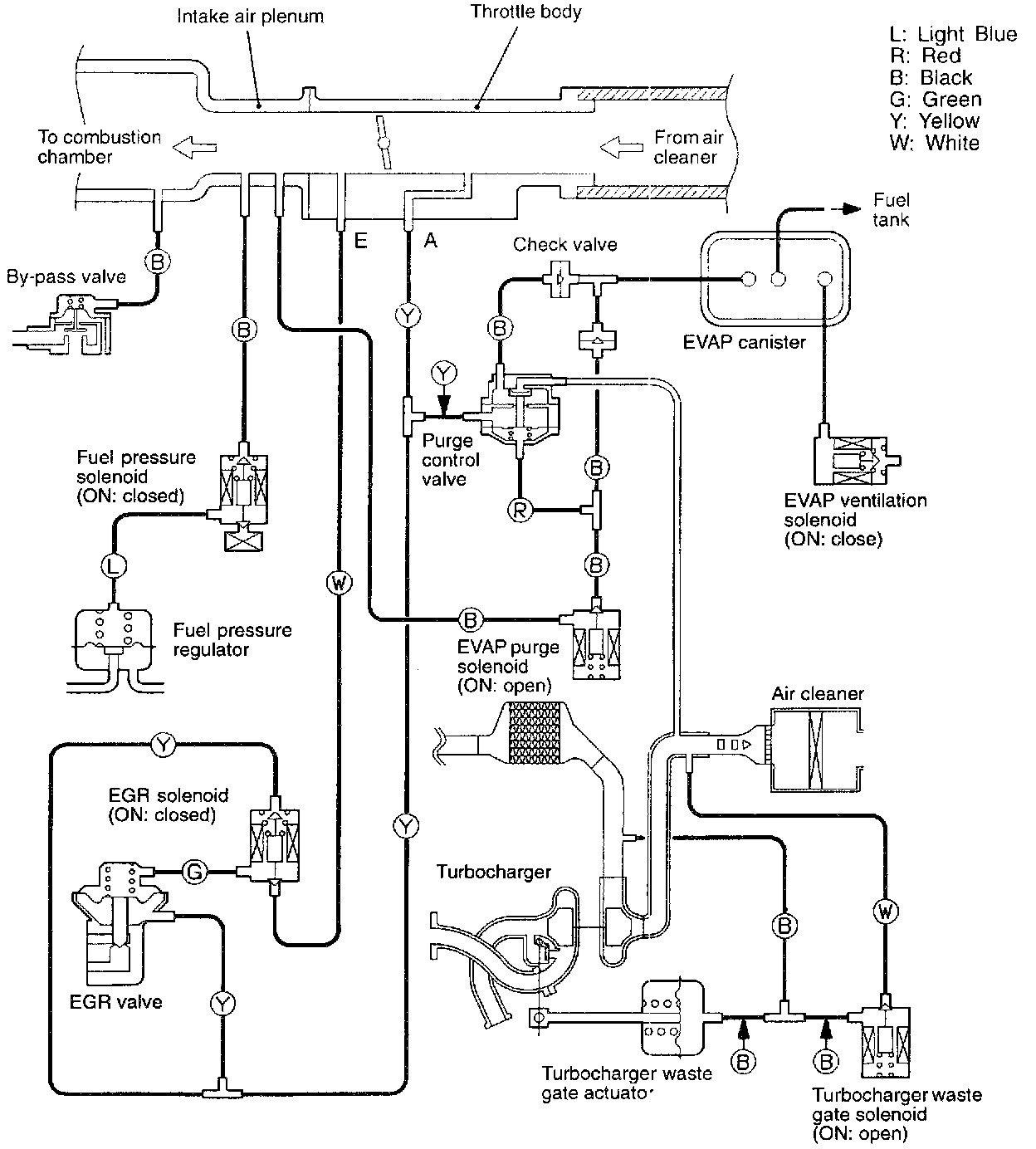

Using the VACUUM HOSE ROUTING as a guide, check that the vacuum hoses are correctly connected, and that there are no bends or damage to the hoses.

VACUUM HOSE INSTALLATION
When connecting the vacuum hoses, they should be securely inserted onto the nipples, use the VACUUM HOSE ROUTING as a guide.
