Electrical Diagrams

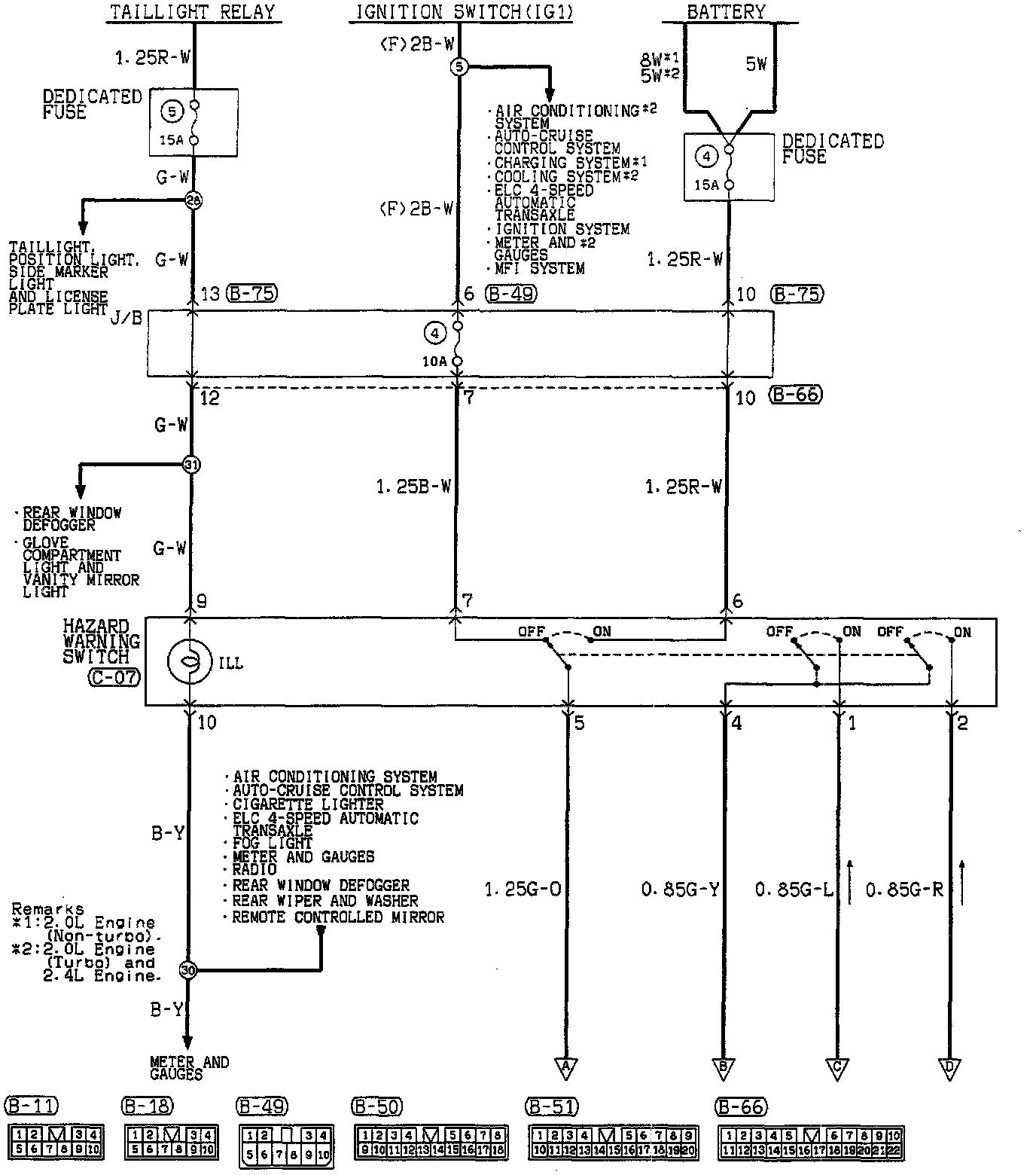

Turn-Signal And Hazard Warning Light (Part 1 Of 4):

Dedicated Fuse
Hazard Warning Switch
J/B

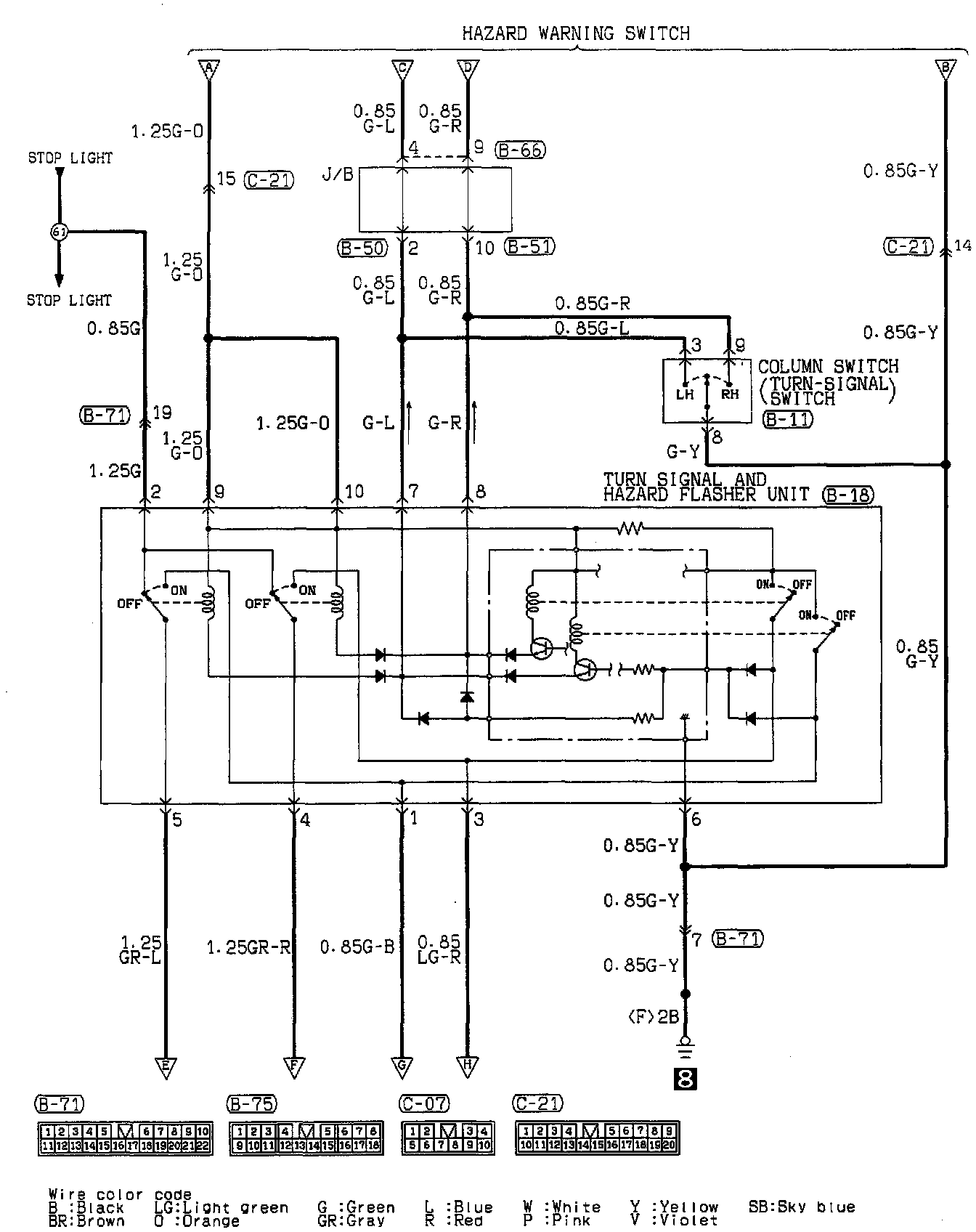

Turn-Signal And Hazard Warning Light (Part 2 Of 4):

Column Switch(Turn-Signal Switch)
J/B
Turn Signal And Hazard Flasher Unit

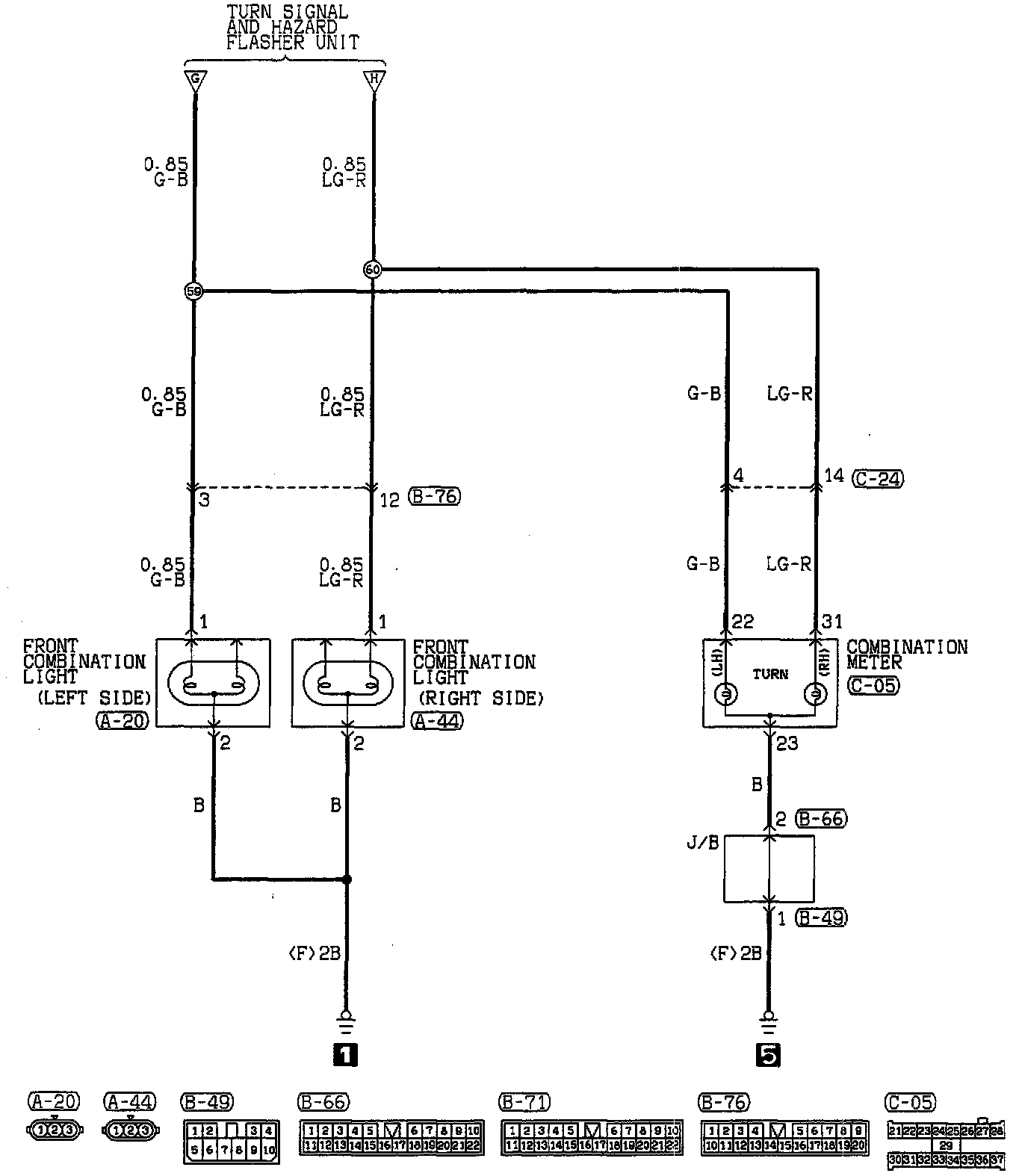

Turn-Signal And Hazard Warning Light (Part 3 Of 4):

Combination Meter
Front Combination Light (Left & Right Side)
J/B

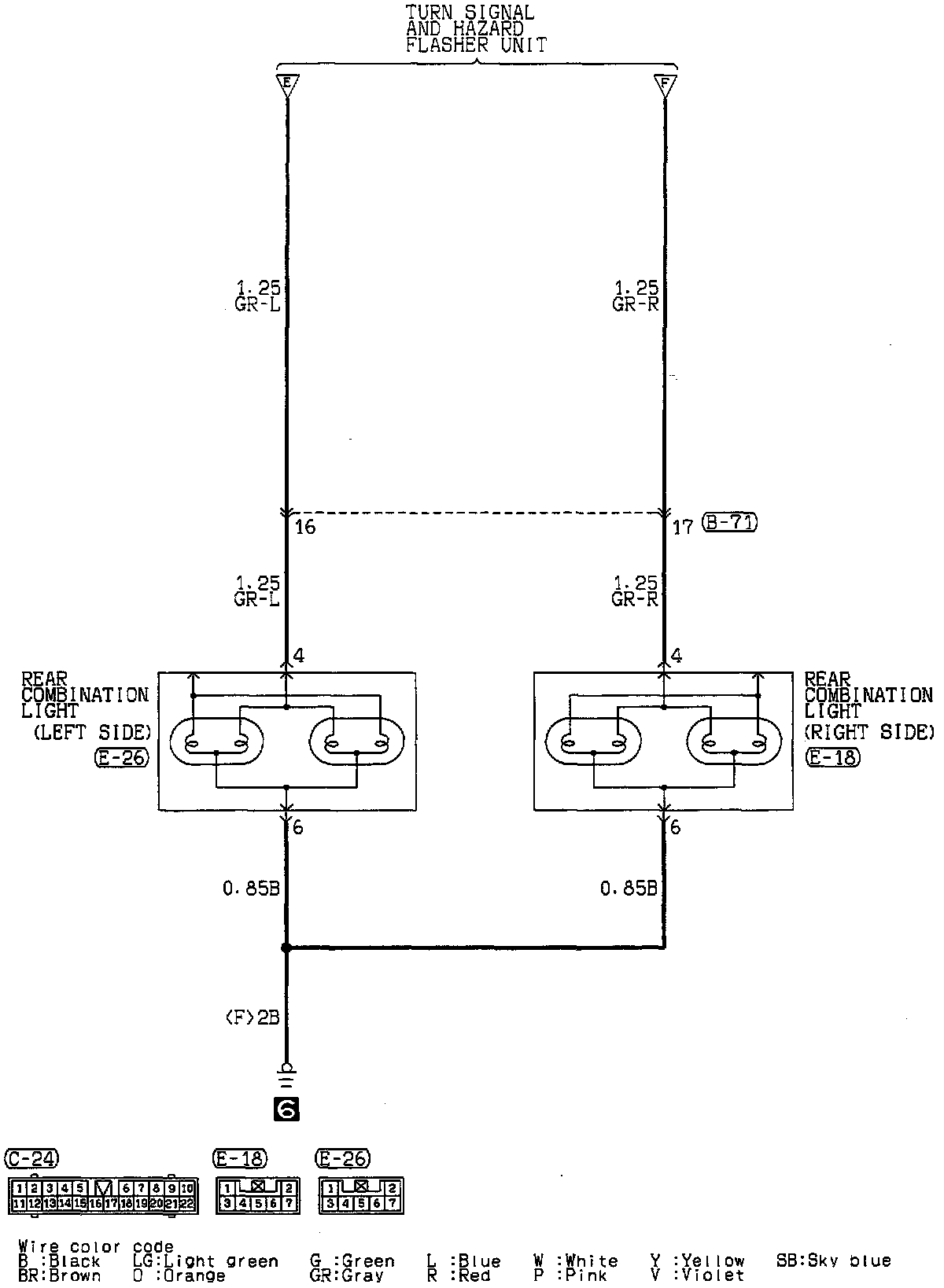

Turn-Signal And Hazard Warning Light (Part 4 Of 4):

Rear Combination Light (Left & Right Side)
