Electrical Diagrams

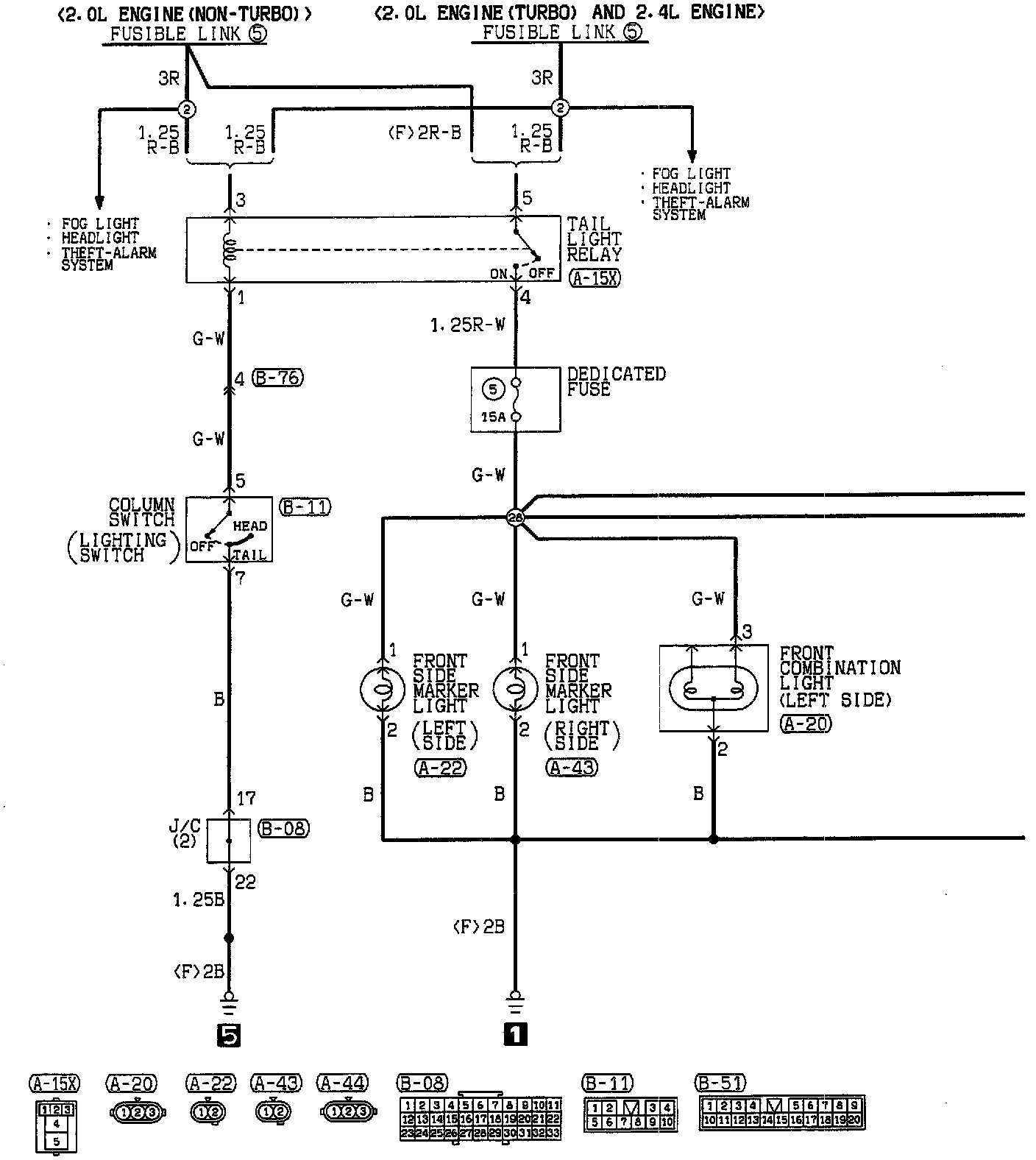

Tail, Position, Side-Marker And License Plate Light (Part 1 Of 3):

Column Switch (Lighting Switch)
Dedicated Fuse
Front Combination Light(Left Side)
J/C(2)
Tail Light Relay

Tail, Position, Side-Marker And License Plate Light (Part 2 Of 3):

Front And Rear Combination Light (Right Side)
J/B
Rear Side Marker Light (Right Side)

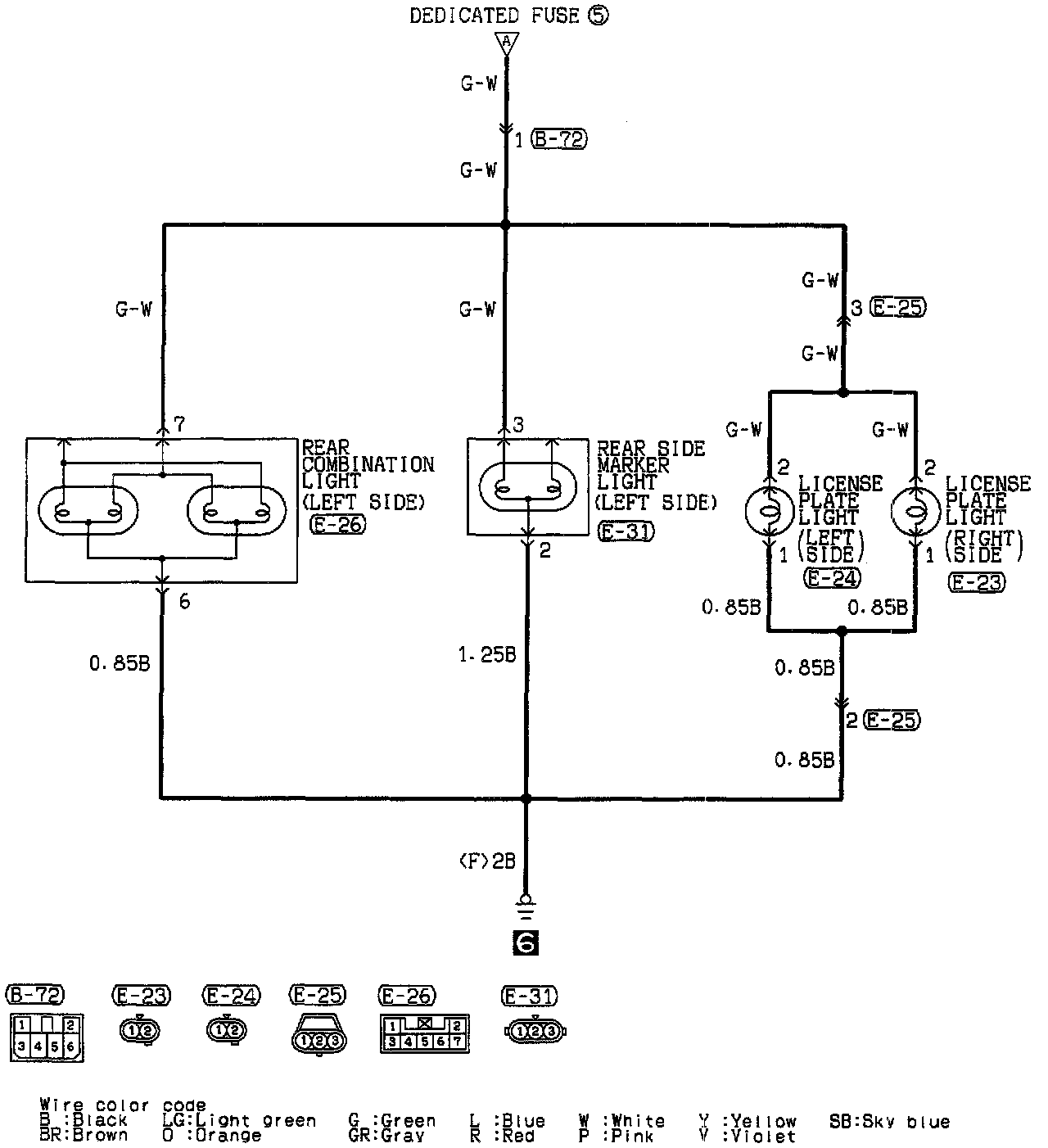

Tail, Position, Side-Marker And License Plate Light (Part 3 Of 3):

Rear Combination Light (Left Side)
Rear Side Marker Light (Left Side)
