Turbo Boost Gauge: Testing and Inspection

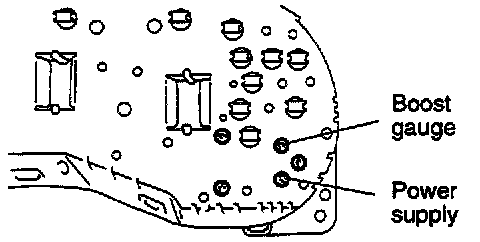

1. Use an ohmmeter to measure resistance between terminals.
Standard value: 75.8 ± 7.6 Ohm
2. If within the standard value, the boost gauge is OK. If not within the standard value, replace the boost gauge.
