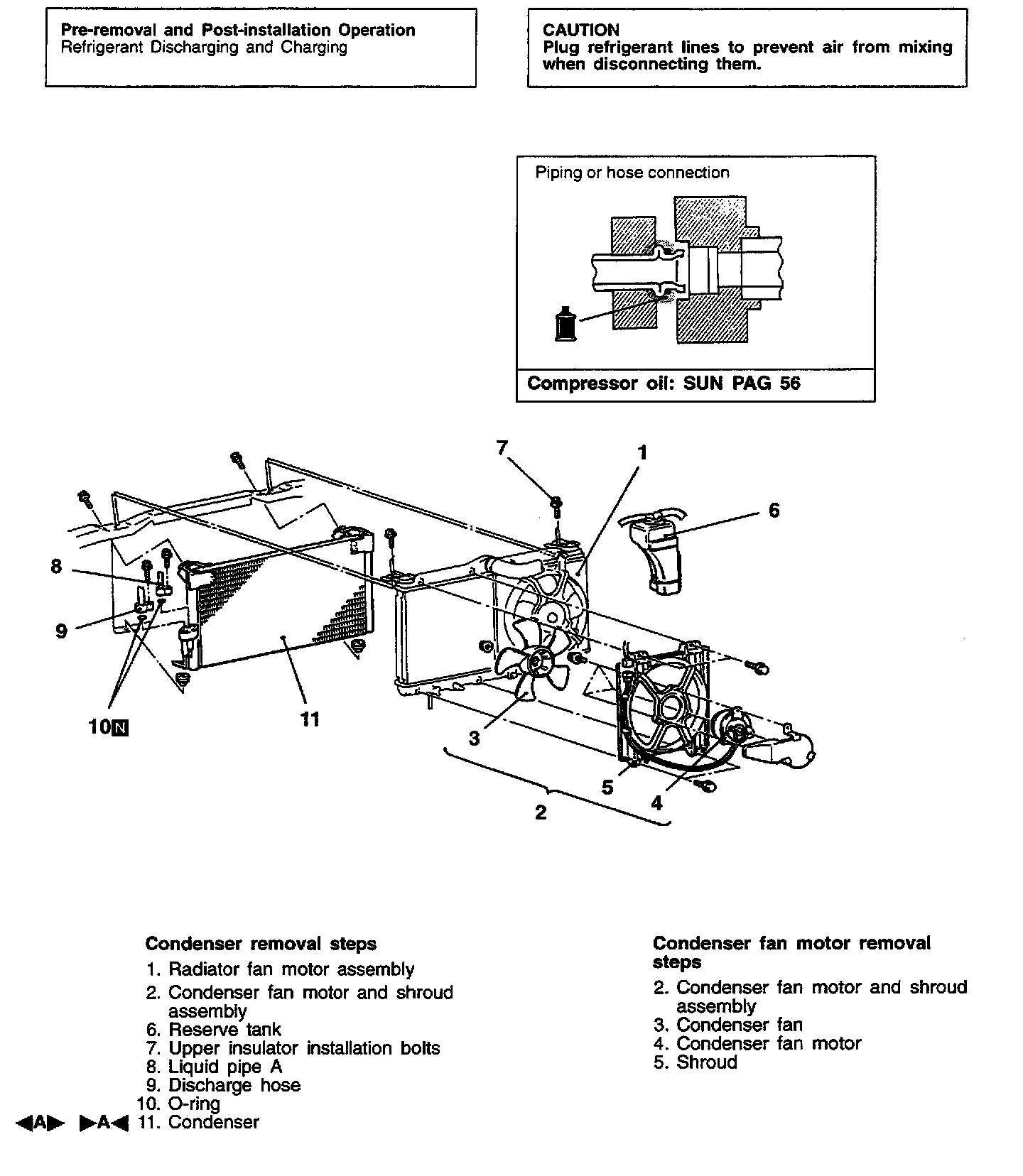

Condenser Fan: Service and Repair

REMOVAL SERVICE POINT

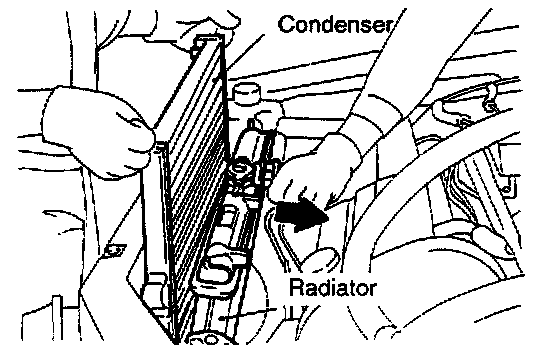

A CONDENSER REMOVAL
Move the radiator to the engine side and then lift up the condenser to remove it.

INSTALLATION SERVICE POINT
A CONDENSER INSTALLATION
When replacing the condenser with a new one, refill the condenser with a specified amount of compressor oil.
Compressor oil: SUN PAG 56
Quantity: 15 cu cm (.51 fl.oz.)
