Water Pump: Service and Repair

<2.0L ENGINE (NON-TURBO)>
WATER PUMP






Removal
Pre-removal Operation:
- Engine Coolant Draining.
- Timing Belt Rear Cover Removal.

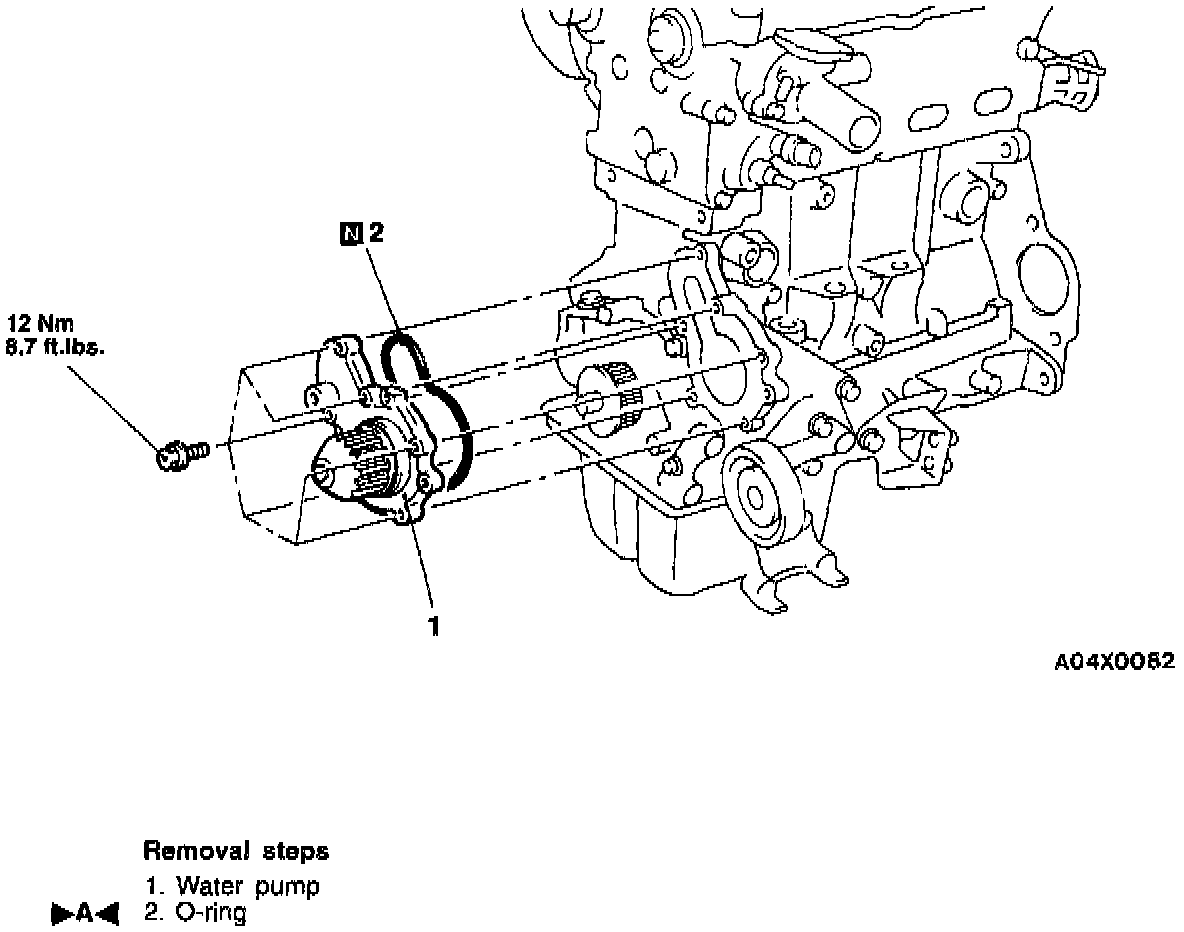

Follow removal steps outlined in illustration.

Installation
Installation in reverse order as removal.

Installation Service Point





]A[ O-Ring Installation.

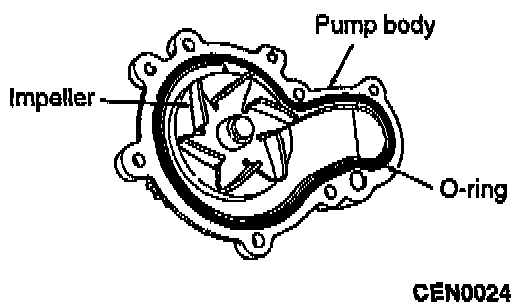

Insert the O-ring to the water pump groove, and coat the circumference of the O-ring with water or engine coolant. By coating with water or engine coolant, the insertion to the cylinder block will become easier.

CAUTION:
1. Do not allow engine oil or other grease to adhere to the O-ring.
2. When inserting the water pump, check that there is no sand, dirt, etc. on its inner surface.

Post-installation Operation:
- Engine Coolant Supplying.
- Timing Belt Rear Cover Installation.

<2.0L ENGINE (TURBO) AND 2.4L ENGINE>
WATER PUMP






Removal
Pre-removal Operation:
- Engine Coolant Draining and Supplying.
- Timing Belt Removal.

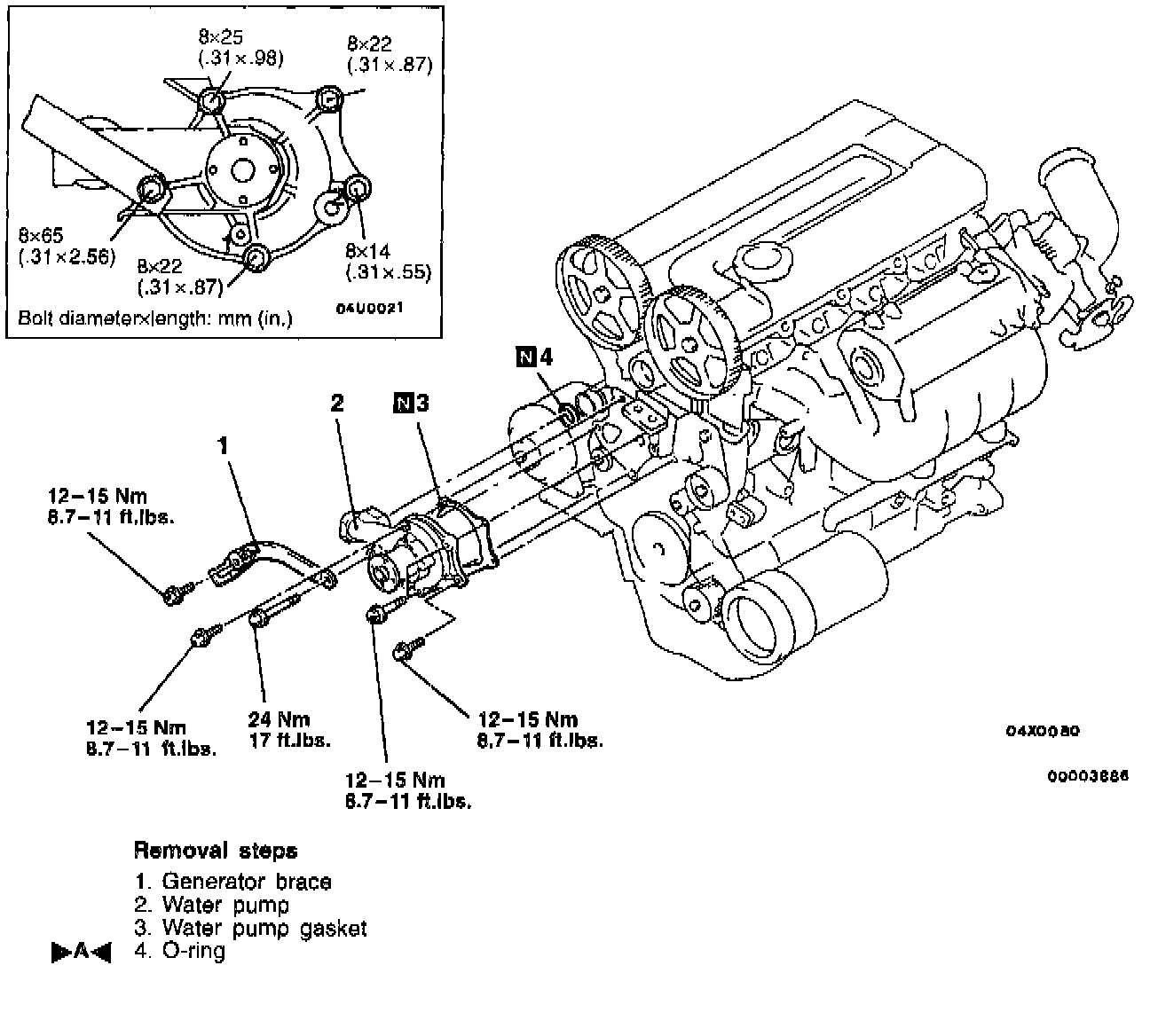

Follow removal steps outlined in illustration.

Installation
Installation in reverse order as removal.





]A[ O-Ring Installation.
Insert the O-ring to the water inlet pipe, and coat the outer circumference of the O-ring with water or engine coolant. By coating with water or engine coolant, the insertion to the water pump will become easier.

CAUTION:
1. Do not allow engine oil or other grease to adhere to the O-ring.
2. When inserting the pipe, check that there is no sand, dirt, etc, on its inner surface.

Post-installation Operation:
- Engine Coolant Draining and Supplying.
- Timing Belt Installation.
