External Components
GENERATOR AND IGNITION SYSTEM

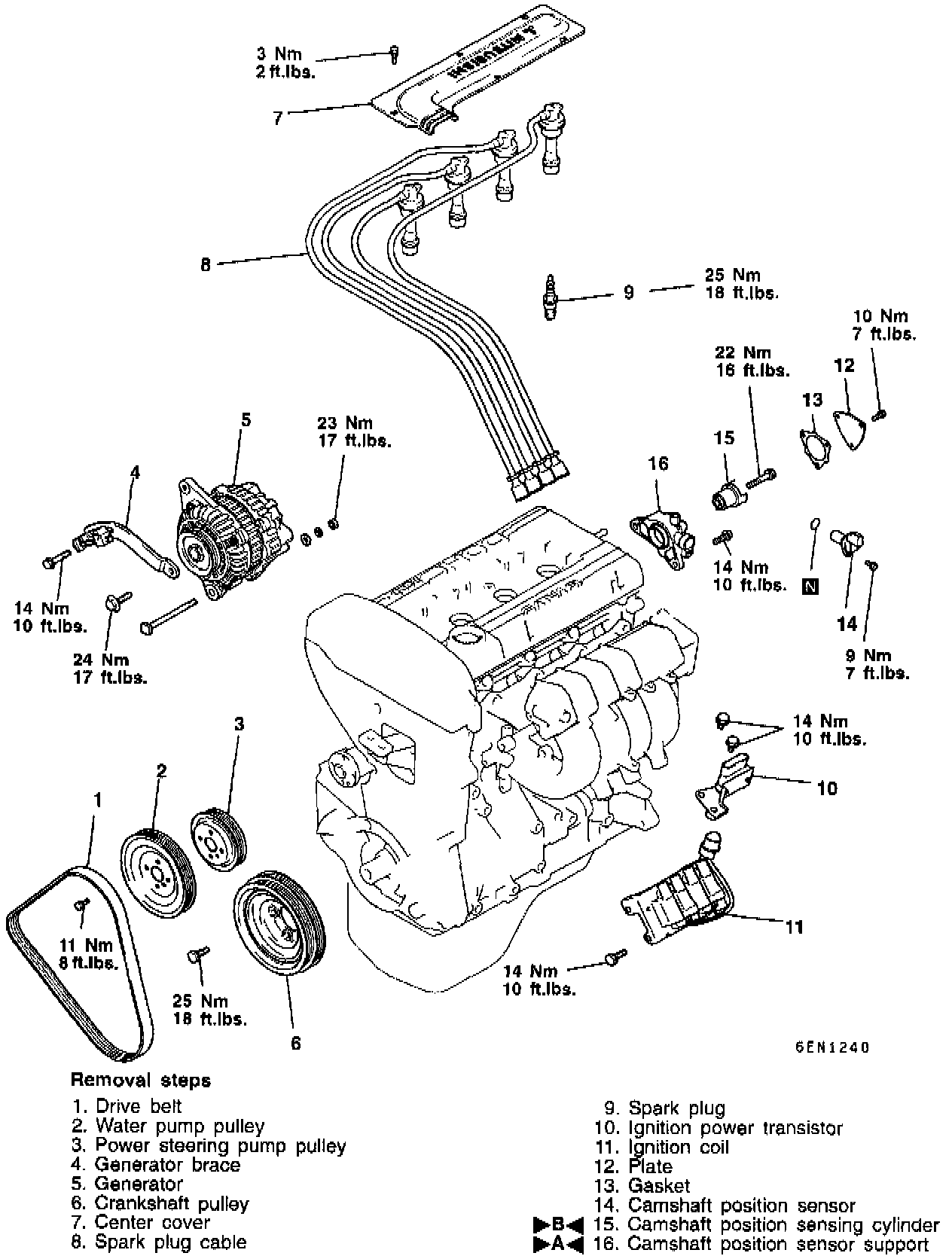

Removal
Follow removal steps outlined in illustration.
Installation
Installation in reverse order as removal.
Installation Service Points

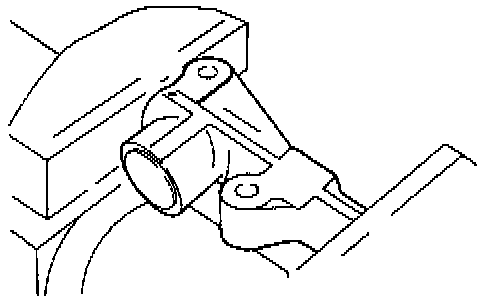

]A[ Camshaft position sensor support installation.
1. Apply a 3 mm bead of form-in-place gasket (FIPG) to the area shown.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent.
]B[ Camshaft position sensing cylinder installation.
1. Set the No. 1 cylinder to the compression top dead center position (so that the dowel pin of the exhaust camshaft is at the top).

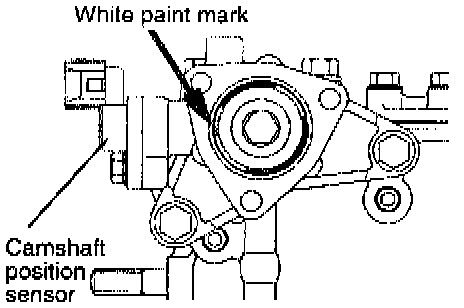

2. Install the camshaft position sensing cylinder so that the white paint mark is facing in the direction shown in the illustration.
TIMING BELT
Removal

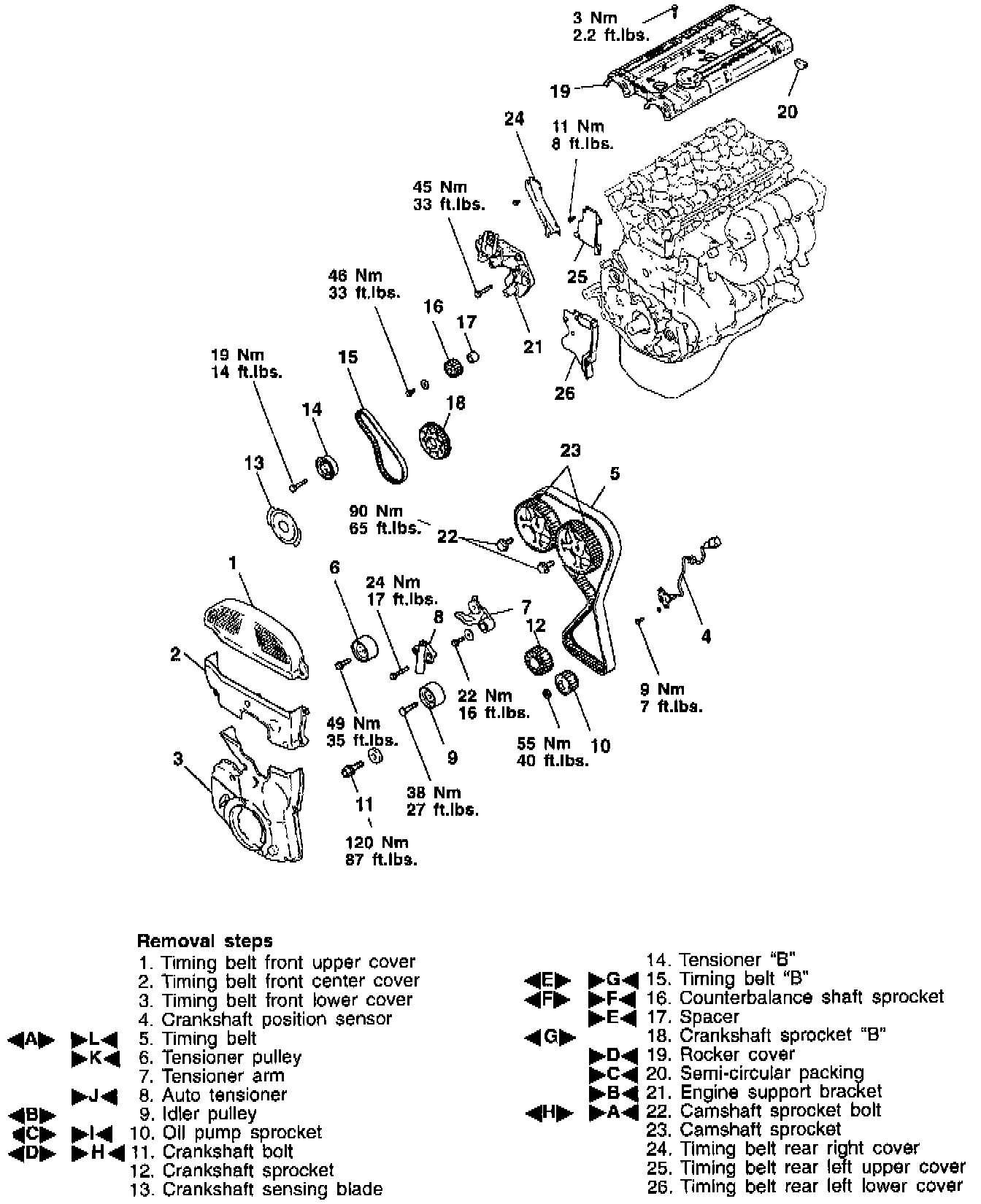

Follow removal steps outlined in illustration.
Removal Service Points
[A] Timing belt removal.

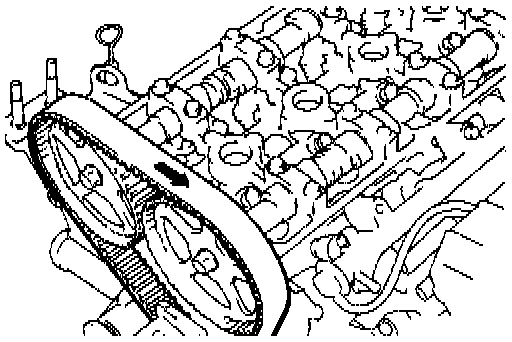

1. Mark the belt running direction for reference in reinstallation.
NOTE:
1. Water or oil on the belt shorten its life drastically, so the removed timing bell: sprocket, and tensioner must be tree from oil and water. These parts should not be washed. Replace parts if seriously contaminated.
2. If there is oil or water on each part check front case oil seals, camshaft oil seal and water pump for leaks.
[B] Oil Pump Sprocket Removal.

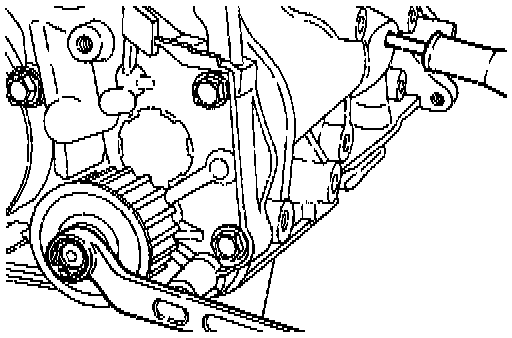

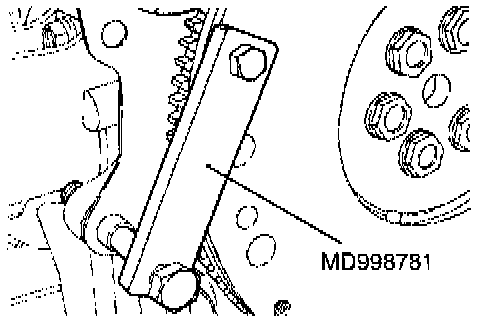

[C] Crankshaft Bolt Loosening.

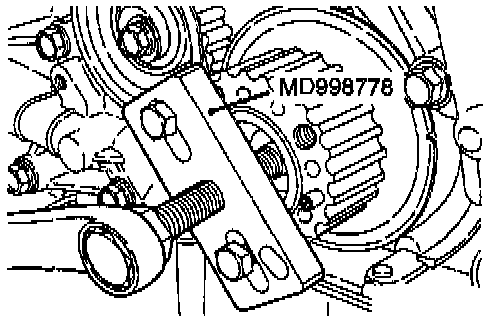

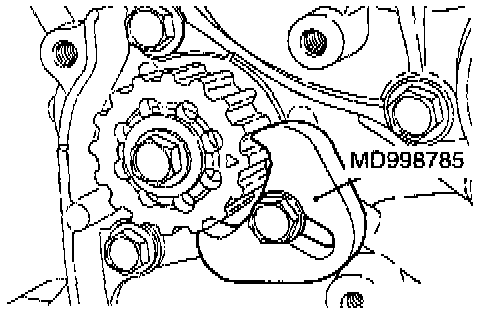

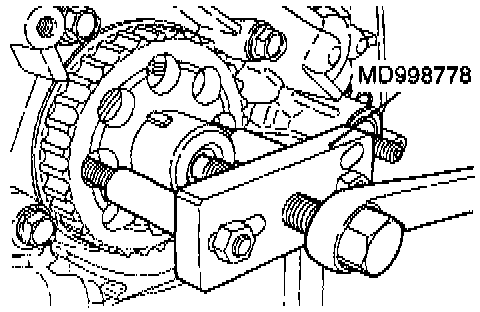

[D] Crankshaft Sprocket Removal.
[E] Timing Belt "B" Removal.

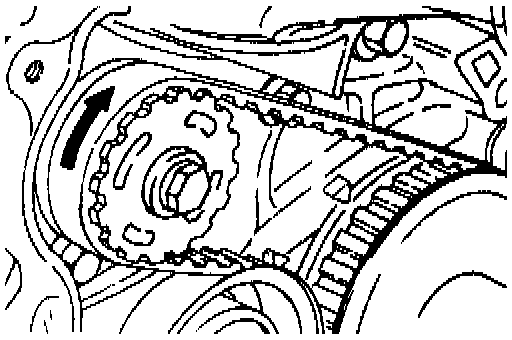

1. Make a mark on the back of the timing belt indicating the direction of rotation so it may be reassembled in the same direction if it is to be reused.
NOTE:
1. Water or oil on the belt shortens its life drastically, so the removed timing belt, sprocket, and tensioner must be free from oil and water. These parts should not be washed. Replace parts if seriously contaminated.
2. If there is oil or water on each part, check front case oil seals, camshaft oil seal and water pump for leaks.
[F] Counterbalance Shaft Sprocket Removal.
[G] Crankshaft Sprocket "B" Removal.
[H] Camshaft Sprocket Bolt Loosening.

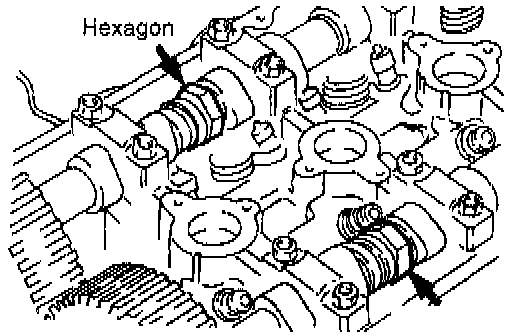

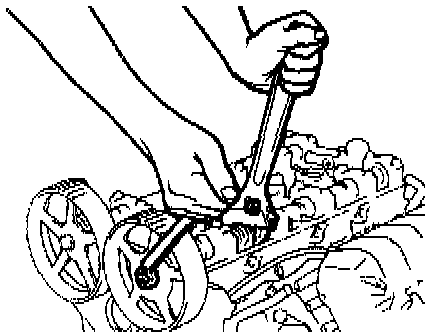

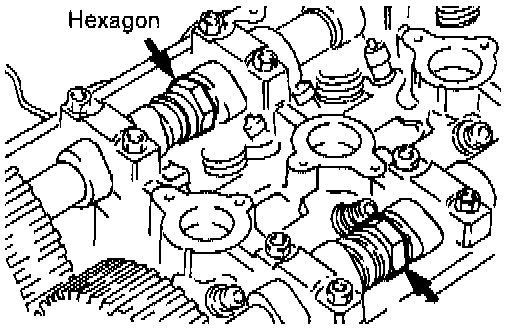

1. Using a wrench, hold the camshaft at its hexagon (between the No. 2 and No. 3 journals) and remove the camshaft sprocket bolt.
CAUTION: Locking the camshaft sprocket with a tool damages the sprocket.
2. Remove the camshaft sprockets.
INSPECTION
Timing Belt

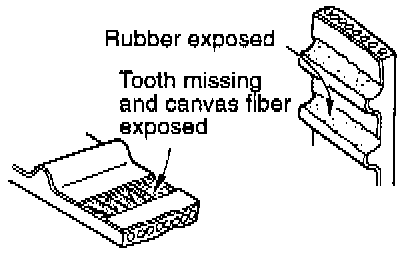

Replace belt if any of the following conditions exist.

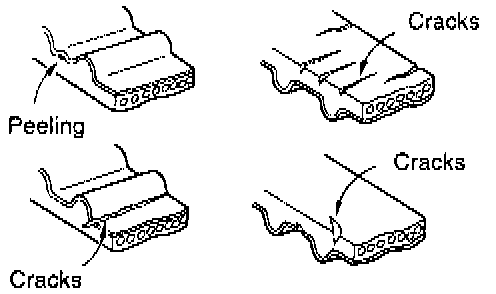

1. Hardening of back rubber.
Back side is glossy without resilience and leaves no indent when pressed with fingernail.
2. Cracks on rubber back.
3. Cracks or peeling of canvas.
4. Cracks on rib root.
5. Cracks on belt sides.
6. Abnormal wear of belt sides. The sides are normal if they are sharp as if cut by a knife.
7. Abnormal wear on teeth.
8. Missing tooth.
Auto Tensioner
1. Check the auto tensioner for possible leaks and replace as necessary.
2. Check the rod end for wear or damage and replace as necessary.
3. Measure the rod protrusion. If it is out of specification, replace the auto tensioner.
Standard value: 12 mm (0.47 inch)

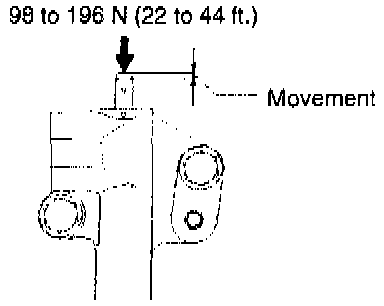

4. Press the rod with a force of 98 to 196 N (22 to 44 ft. lbs.) and measure its protrusion.
5. If the measured value is 1 mm (0.39 inch) or more shorter than the value obtained in step (3), replace the auto tensioner.
INSTALLATION
Installation in reverse order as removal.
Installation Service Points
]A[ Camshaft Sprockets Tightening.

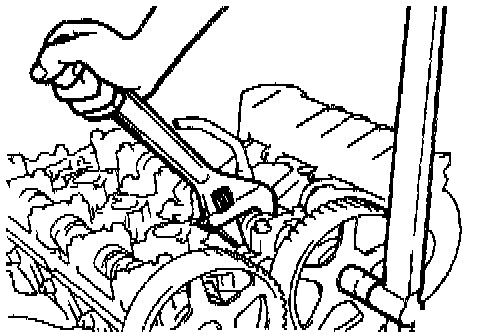

1. Using a wrench, hold the camshaft at its hexagon (between the No 2 and No. 3 journals) and tighten the bolt to the specification Caution Locking the camshaft sprocket with a tool damages the sprocket.
]B[ Engine Support Bracket Installation.
1. Coat the bolts illustrated with sealant before tightening.
Specified sealant:
3M ATD Part No. 8660 or equivalent

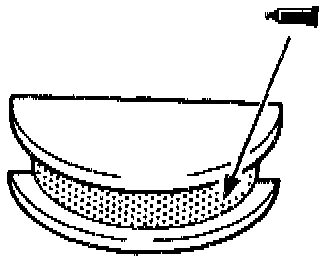

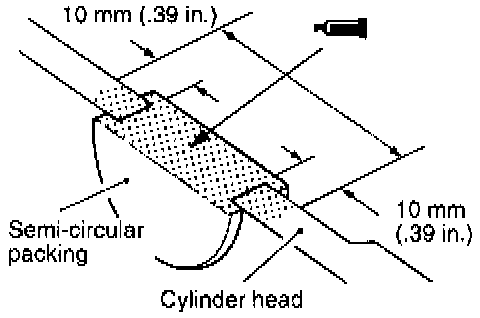

]C[ Sealant Application On Semi-circular Packing.
Specified sealant:
3M ATD Part No. 8660 or equivalent
]D[ Sealant Application On Rocker Cover.

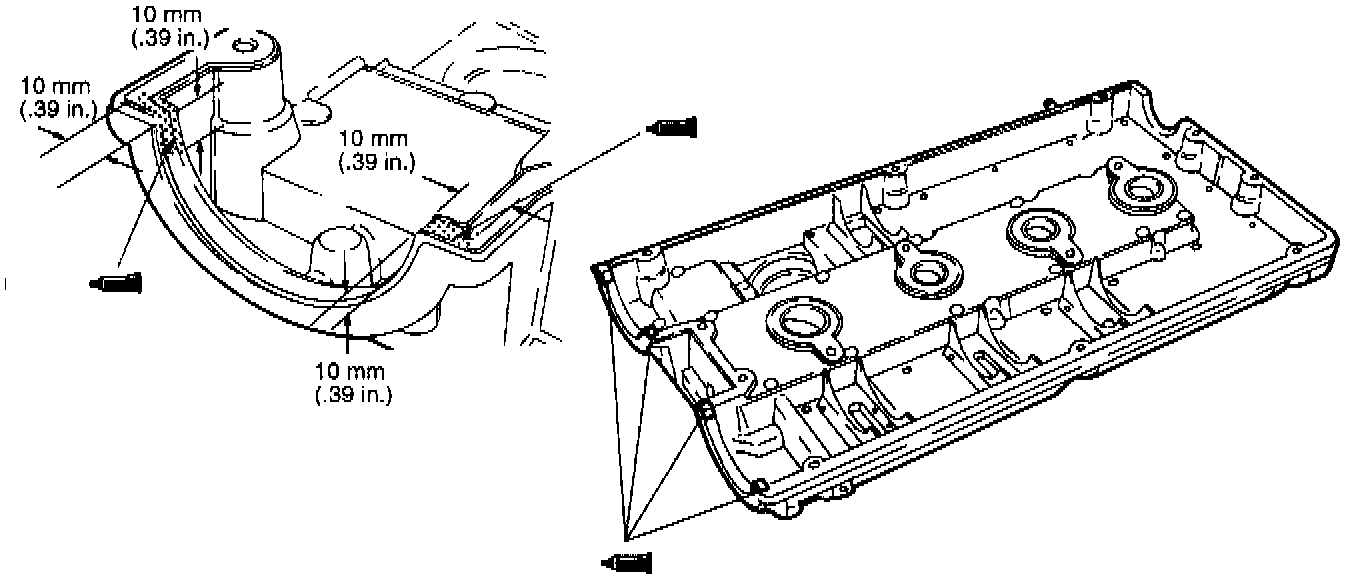

Apply the specified sealant to the areas indicated in the illustration.
Specified sealant: 3
M ATD Part No. 8660 or equivalent
]E[ Spacer Installation.
1. Install the spacer with the chamfered end facing toward the oil seal.
]F[ Counterbalance Shaft Sprocket Installation.
]G[ Timing Belt "B" Installation.

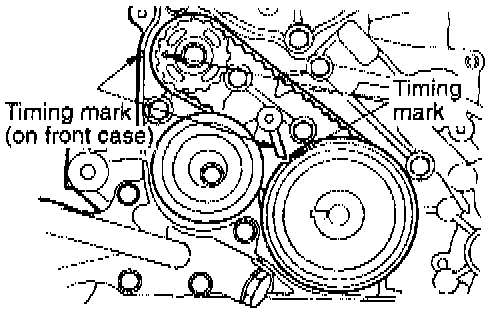

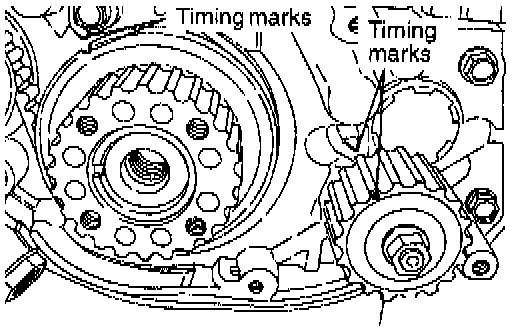

1. Align timing marks on the crankshaft sprocket "B" and counterbalance shaft sprocket with the marks on the front case respectively.
2. Install the timing belt "B" on the crankshaft sprocket "B" and counterbalance shaft sprocket. There should be no slack on the tension side.

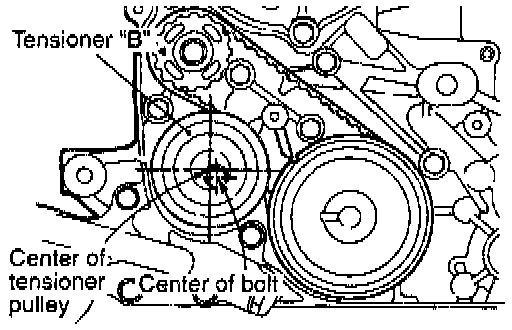

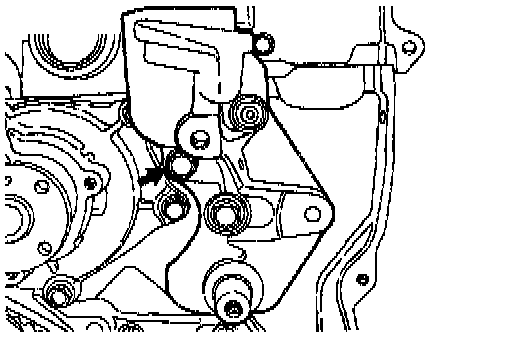

3. Make sure that the relationship between the tensioner pulley center and the bolt center is as shown in the illustration.

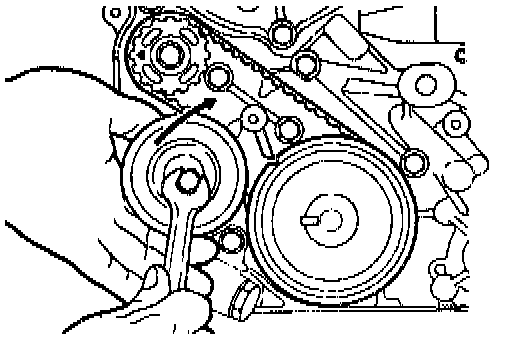

4. Move the tensioner "B" in the direction of arrow while lifting with a finger to give a sufficient tension to the tension side of timing belt. In this condition, tighten bolt to secure tensioner "B". When the bolt is tightened, use care to prevent shaft from turning together. If shaft is turned together, belt will be over tensioned.
5. Check to ensure that timing marks on sprockets and front case are in alignment.

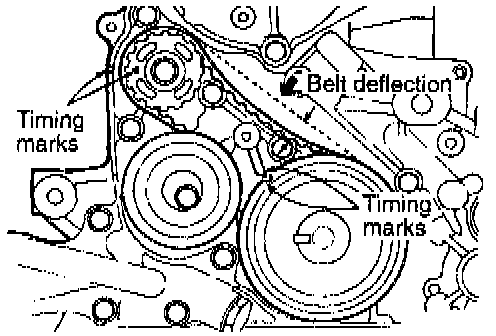

6. Press with index finger the center of span on tension side of timing belt "B". The bell: must deflect 5 - 7 mm (0.20 - 0.28 inch).

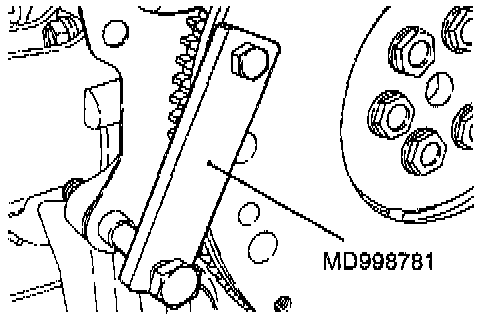

]H[ Crankshaft Bolt Tightening.
]I[ Oil Pump Sprocket Installation.
1. Insert a Phillips screwdriver [shank diameter 8 mm (0.31 inch) shaft] through the plug hole on the left side of the cylinder block to block the left counterbalance shaft.
2. Install the oil pump sprocket.
3. Apply a proper amount of engine oil to the bearing surfaces of the nuts.
4. Tighten the nuts to the specified torque.
]J[ Auto Tensioner Installation.
1. If the auto tensioner rod is in its fully extended position, reset it as follows.
2. Clamp the auto-tensioner in the vise with soft jaws.

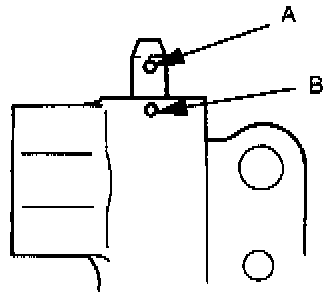

3. Push in the rod little by little with the vise until the set hole A in the rod is aligned with the hole B in the cylinder.

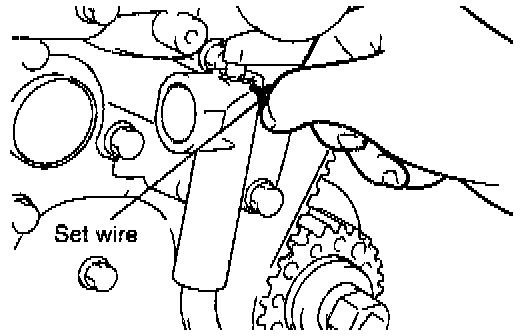

4. Insert a wire [1.4 mm (0.055 inch) in diameter] into the set holes.
5. Unclamp the auto tensioner from the vise.
6. Install the auto tensioner to front case and tighten to the specified torque.
CAUTION: Leave the wire installed in the auto tensioner.

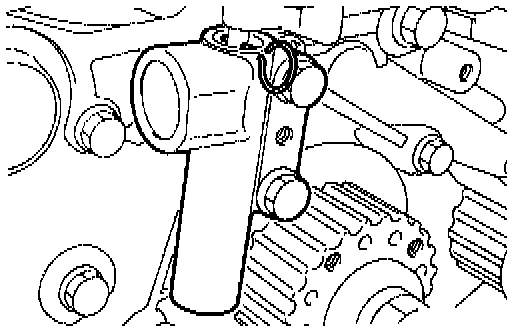

]K[ Tensioner Pulley Installation.

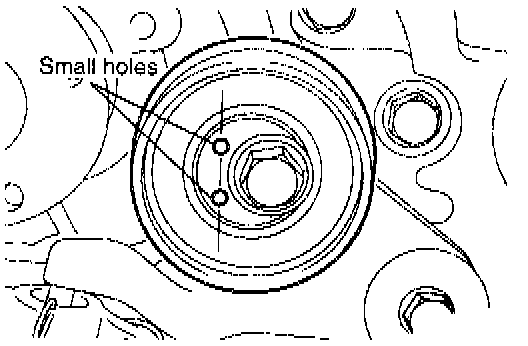

1. Install the tensioner pulley in such direction that its two small holes are arranged vertically.
]L[ Timing Belt Installation.

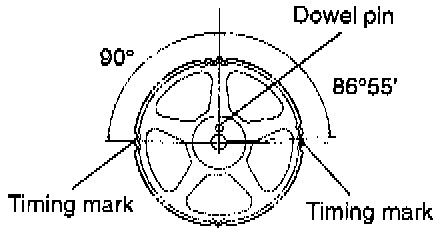

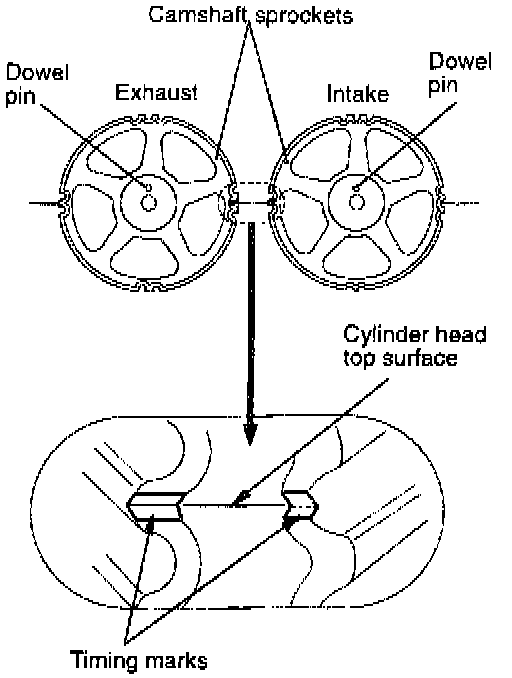

1. Turn the two sprockets so that their dowel pins are located on top. Then, align the timing marks facing each other with the top surface of the cylinder head. When you let go of the exhaust camshaft sprocket, it will rotate one tooth counterclockwise. This should be taken into account when installing the timing belt on the sprockets.
NOTE: The same camshaft sprocket is used for the intake and exhaust camshafts and is provided with two timing marks. When the sprocket is mounted on the exhaust camshaft, use the timing mark on the right with the dowel pin hole on top. For three intake camshaft sprocket, use the one on the left with the dowel pin hole on top.
2. Align the crankshaft sprocket timing marks.
3. Align the oil pump sprocket timing marks (Engine with counterbalance shafts).
4. Insert a Phillips screwdriver [shank diameter 8 mm (0.31 inch)] through the hole. If it can be inserted as deep as 60 mm (2.4 inch) or more, the timing marks are correctly aligned. If the inserted depth is only 20 - 25 mm (0.8 - 1.0 inch), turn the oil pump sprocket one turn and realign timing marks. Then check to ensure that the screwdriver can be inserted 60 mm (2.4 inch) or more. Keep the screwdriver inserted until the installation of the timing belt is finished.
NOTE: Step (4) is performed to ensure that the oil pump sprocket is correctly positioned with reference to the counterbalance shafts.

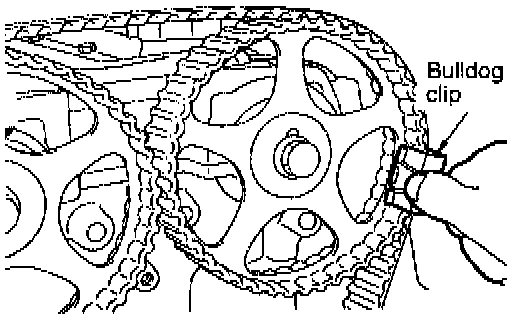

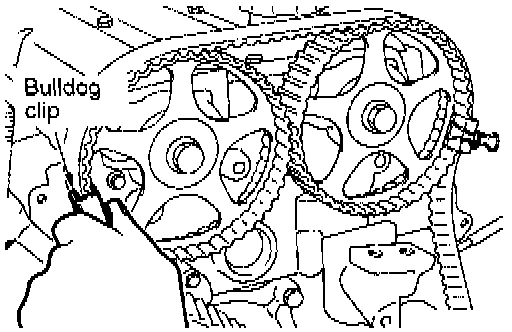

5. Thread the timing belt over the intake side camshaft sprocket and fix it at indicated position by a bulldog clip.

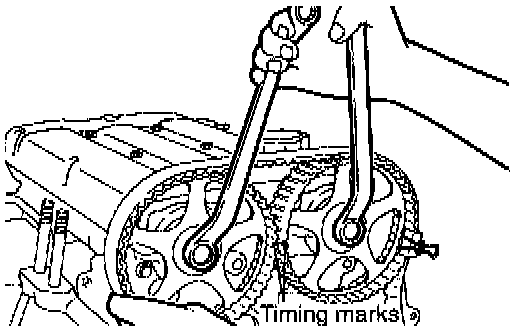

6. Thread the timing belt over the exhaust side sprocket, aligning the timing marks with the cylinder head top surface using two wrenches.
7. Fix the belt at indicated position by a bulldog clip.

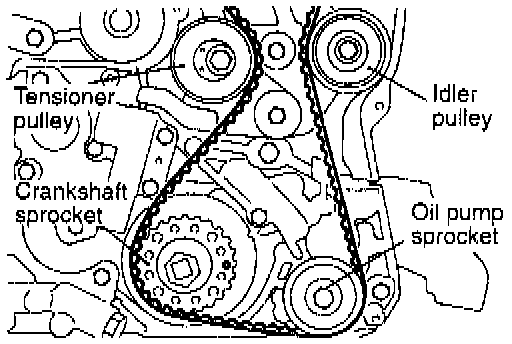

8. Thread the timing belt over the idler pulley, the oil pump sprocket, the crankshaft sprocket and the tensioner pulley in the order shown.
9. Remove the two clips.

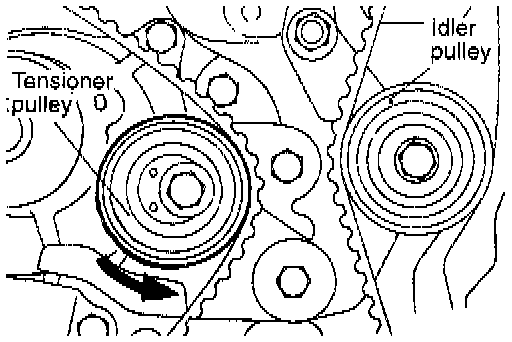

10. Lift up the tensioner pulley in the direction of arrow and tighten the center bolt.
11. Check to see that all timing marks are lined up.
12. Remove the screwdriver inserted in step (4) and fit the plug. (Engine with counterbalance shafts)
13. Give the crankshaft a quarter counterclockwise turn. Then, turn it clockwise until the timing marks are lined up again.

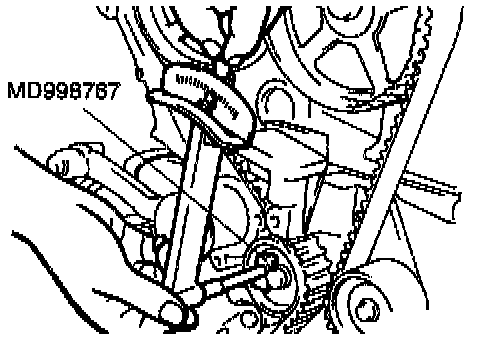

14. Install the special tools, Socket Wrench and Torque Wrench, on the tensioner pulley, and loosen the tensioner pulley center bolt.
NOTE: If the special tool is not available, use a commercially available torque wrench that is capable of measuring 0 - 5 Nm (0 - 3.6 ft. lbs.).
15. Torque to 3.6 Nm (2.60 ft. lbs.) with the torque wrench.
16. Holding the tensioner pulley with the special tool and torque wrench, tighten the center bolt to specification.
17. After giving two clockwise turns to the crankshaft, let it alone for approximately 15 minutes. Then, make sure that the auto tensioner setting wire moves freely.
NOTE: If the wire does not move freely, repeat step (13) above until it moves freely.
18. Remove the auto tensioner setting wire.

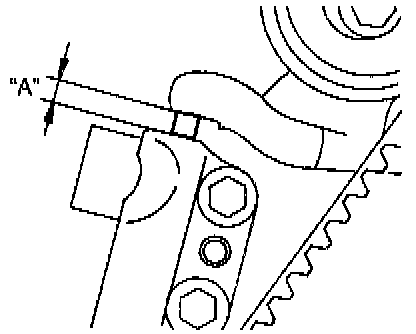

19. Measure the distance "A" (between the tensioner arm and auto tensioner body).
Standard value: 3.8 - 4.5 mm (0.15 - 0.18 inch)
FUEL AND EMISSION CONTROL PARTS
Removal

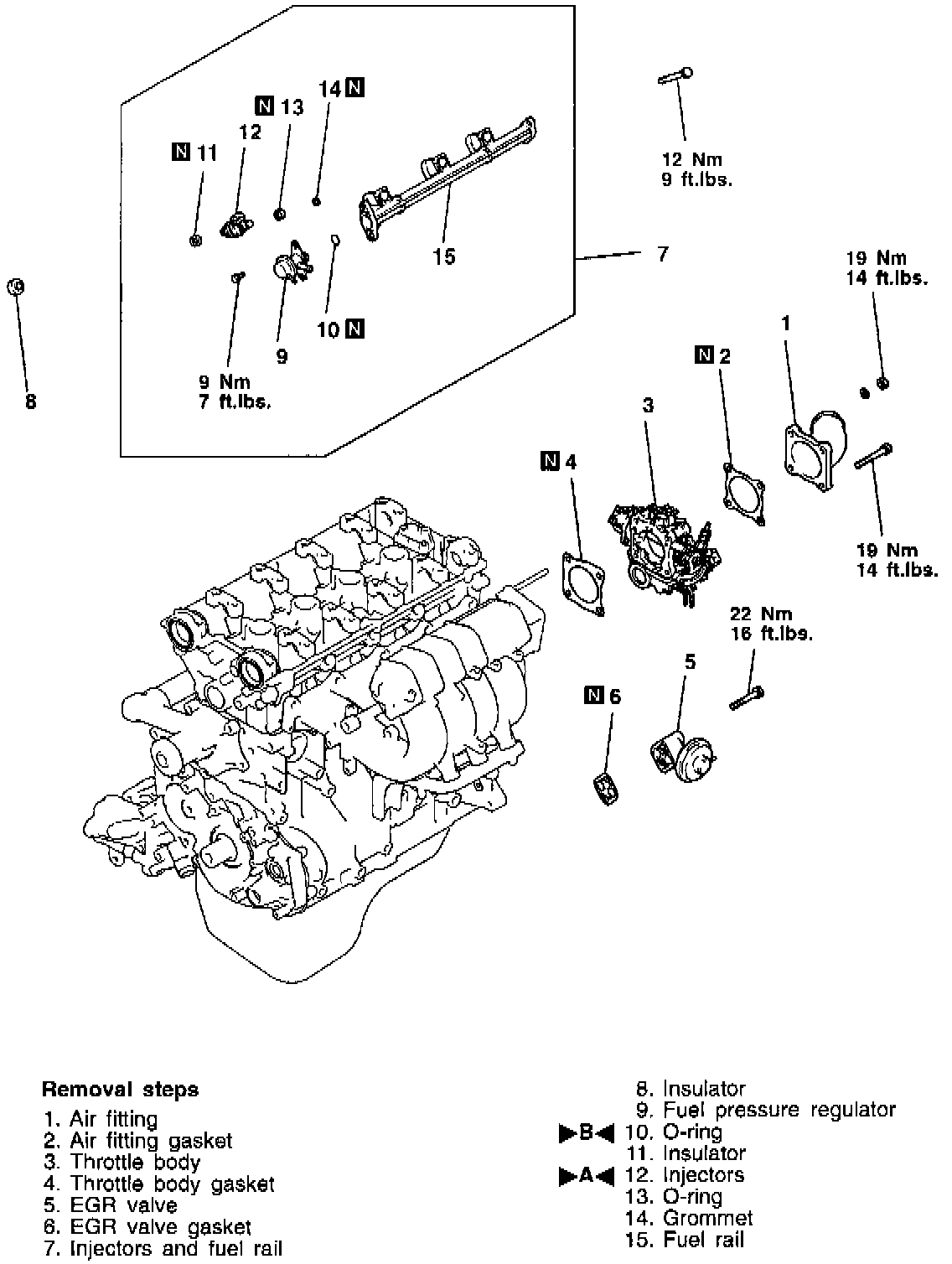

Follow removal steps outlined in illustration.
Installation
Installation in reverse order as removal.
Installation Service Points
]A[ Injector Installation.

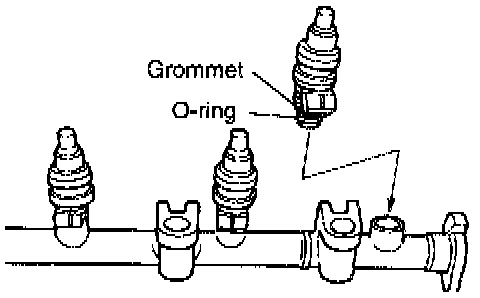

1. Before installing an injector the rubber O-ring must be lubricated with a drop of clean engine oil to aid in installation.
2. Install injector top end into fuel rail. Be careful not to damage the coring during installation.
]B[ Fuel Pressure Regulator Installation.
1. Before installing pressure regulator the O-ring must be lubricated with a drop of clean engine oil to aid in installation.
INTAKE MANIFOLD

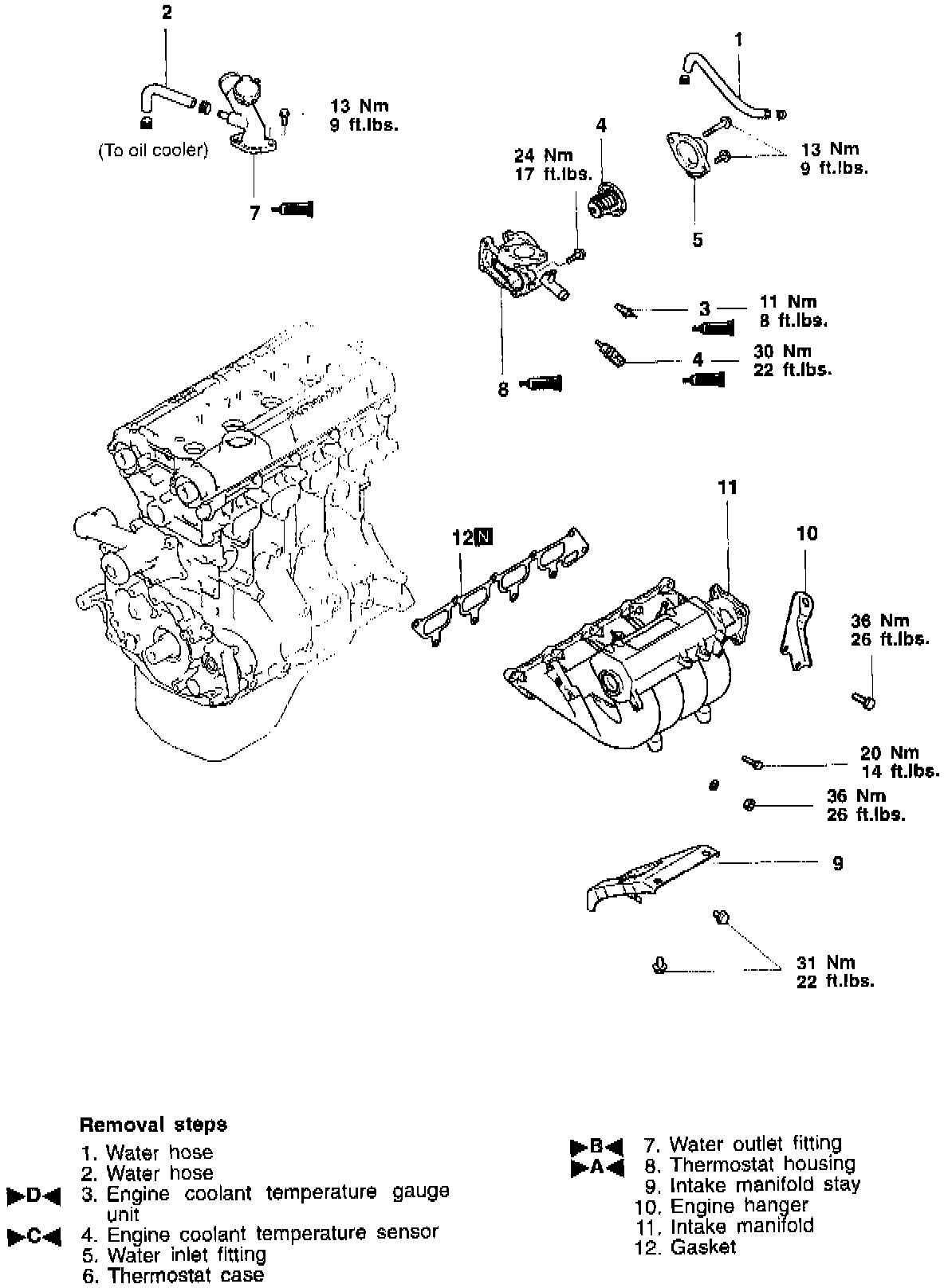

Removal
Follow removal steps outlined in illustration.
Installation
Installation in reverse order as removal.
Installation Service Points

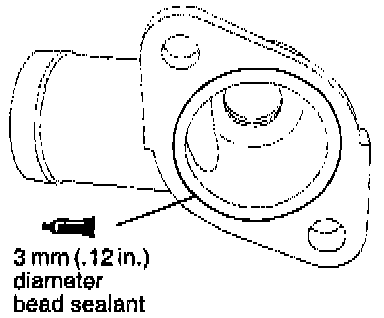

]A[ Sealant Application To Thermostat Housing.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent
NOTE:
1. Be sure to install the housing quickly while the sealant is wet (within 15 minutes).
2. After installation, keep the sealed area away from the oil and coolant for approximately 1 hour.

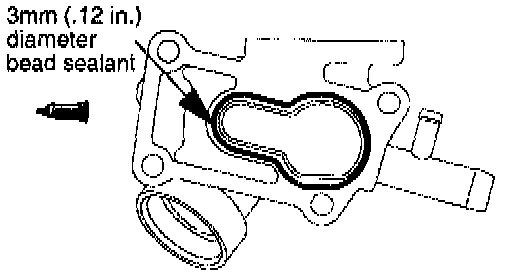

]B[ Sealant Application To Water Outlet Housing.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent
NOTE:
1. Be sure to install the housing quickly while the sealant is wet (within 15 minutes).
2. After installation, keep the sealed area away from the oil and coolant for approximately 1 hour.

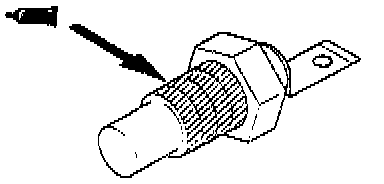

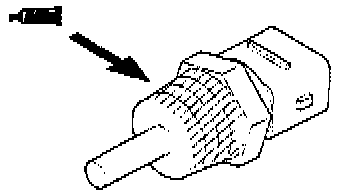

]C[ Sealant Application To Engine Coolant Temperature Sensor.
Specified sealant:
3M Nut Locking Part No. 4171 or equivalent
]D[ Sealant Application To Engine Coolant Temperature Gauge Unit.
Specified sealant:
3M ATD Part No. 8660 or equivalent
EXHAUST MANIFOLD AND WATER PUMP
Removal
Follow removal steps outlined in illustration.
Installation
Installation in reverse order as removal.
Installation Service Point
]A[ Water Pipe-ring Installation.

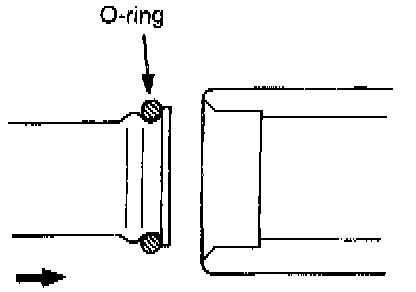

1. Wet the O-ring (with water) to ease assembly.
CAUTION: Keep the O-ring free of oil or grease.

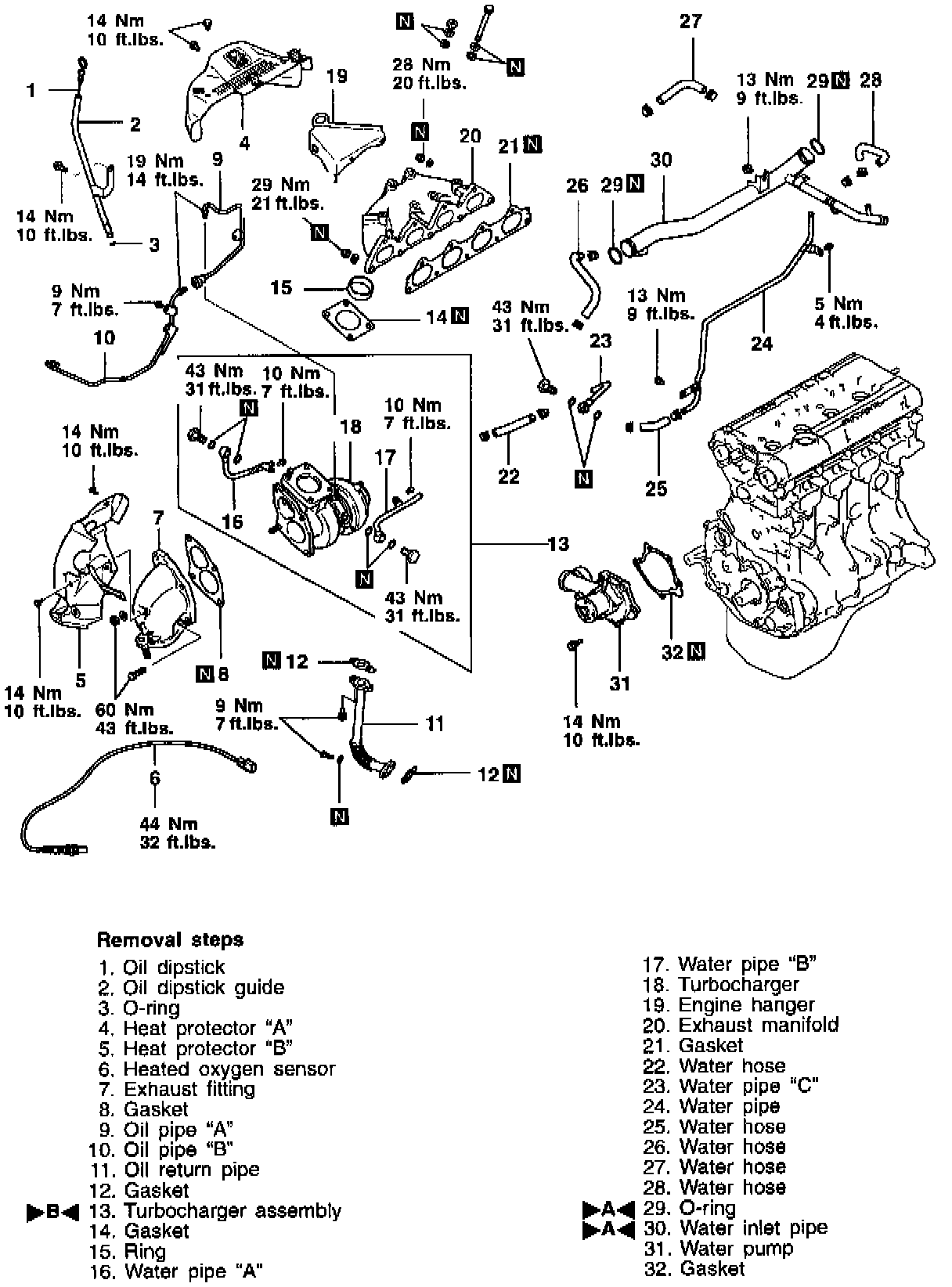

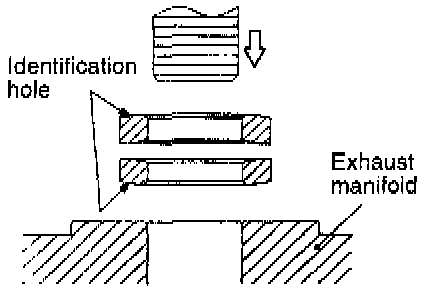

]B[ Turbocharger Assembly Installation.
1. Install the cone disc spring in the shown direction.
2. Tighten the turbocharger mounting bolts and nuts to 27 - 31 Nm (20 - 22 ft. lbs.).

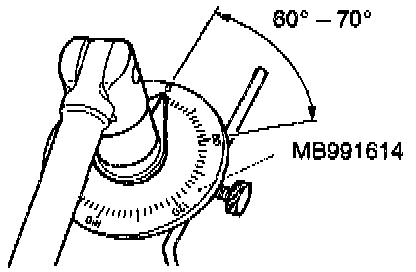

3. Use the special tool or similar to tighten 60° - 70° more.

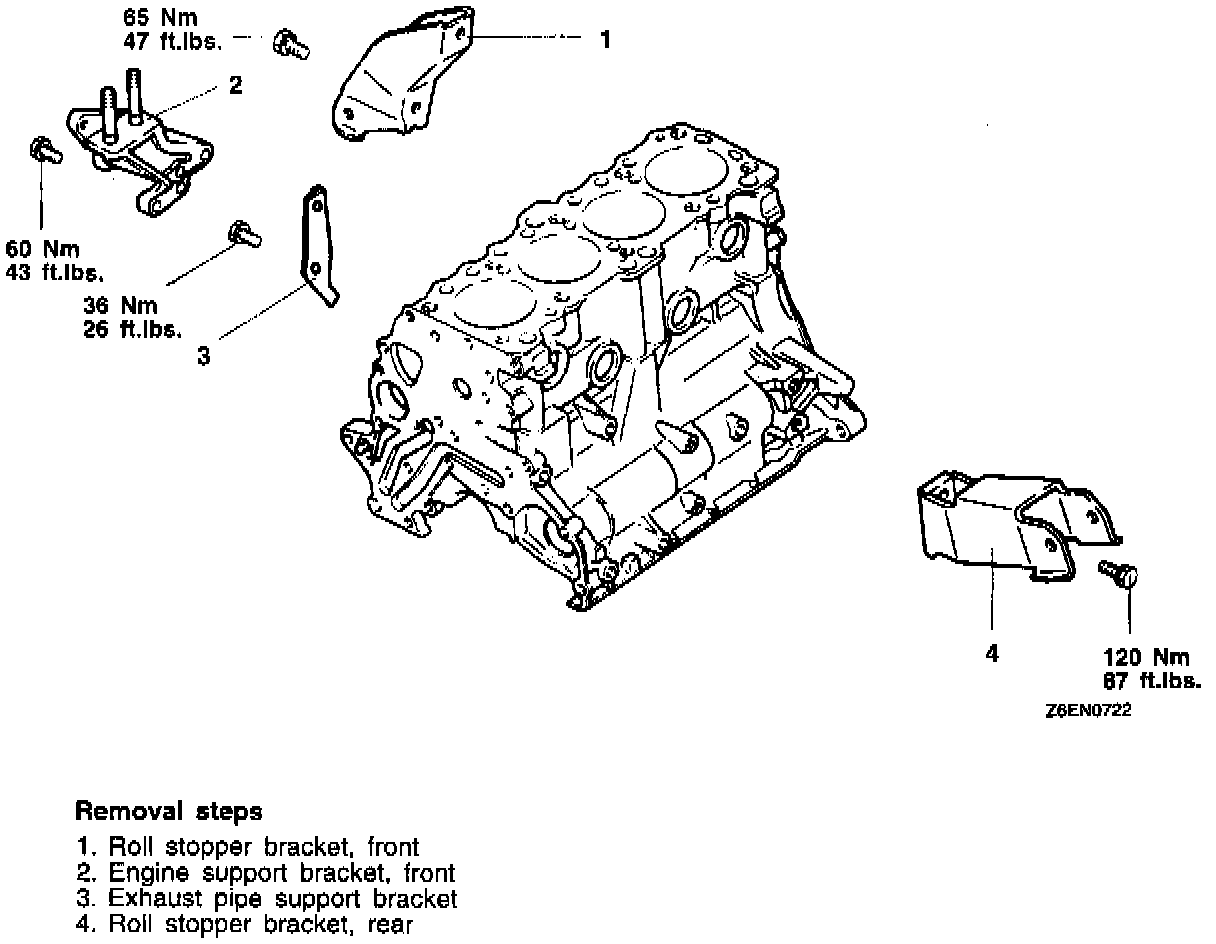

BRACKET
Removal
Follow removal steps outlined in illustration.
Installation
Installation in reverse order as removal.
