Crankshaft Bearing - Procedure Correction

NO.: TSB-97-11-018
DATE: November, 1997
MODEL: See Below

SUBJECT:
CORRECTED CRANKSHAFT BEARING PROCEDURES (CHANGE IN SHAPE) - SERVICE MANUAL REVISION

[TSB Revision TSB-97-11-018]

PURPOSE
For the 1998 model year, the No. 3 crankshaft bearing for the 4G6 engine is changed and is now identical to the other crankshaft bearings. Also, a thrust bearing is added for the upper crankshaft bearing. This bulletin reflects these changes.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
This bulletin affects all listed vehicles with engine numbers of UC 1709 and up.

1998 Eclipse and Eclipse Spyder equipped with 2.0L Turbo (4G6) engine
1998 Eclipse Spyder equipped with 2.4L (4G6) engine
1998 Galant
1998 Montero Sport equipped with 2.4L (4G6) engine

AFFECTED SERVICE MANUALS
1998 Eclipse/Eclipse Spyder Service Manual, Volume 1, Pages 11B-58, 11B-61, 11F-57, 11F-59
1998 Galant Service Manual, Pages 11B-53, 11B-54, 11B-55
1998 Montero Sport Service Manual, Volume 1, Pages 11B-47, 11B-48, 11B-49, 11B-50

PARTS INFORMATION
There is no parts interchangeability between the parts for the 1998 engine (above engine number UC 1709) and earlier engines. The old style parts can only be used in engines before engine number UC 1709 and the new parts will only fit in the new style engines with engine numbers above UC 1709.

SERVICE MANUAL REVISIONS





1998 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 11B-58
Correct the CRANKSHAFT, FLYWHEEL AND DRIVE PLATE procedures as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.





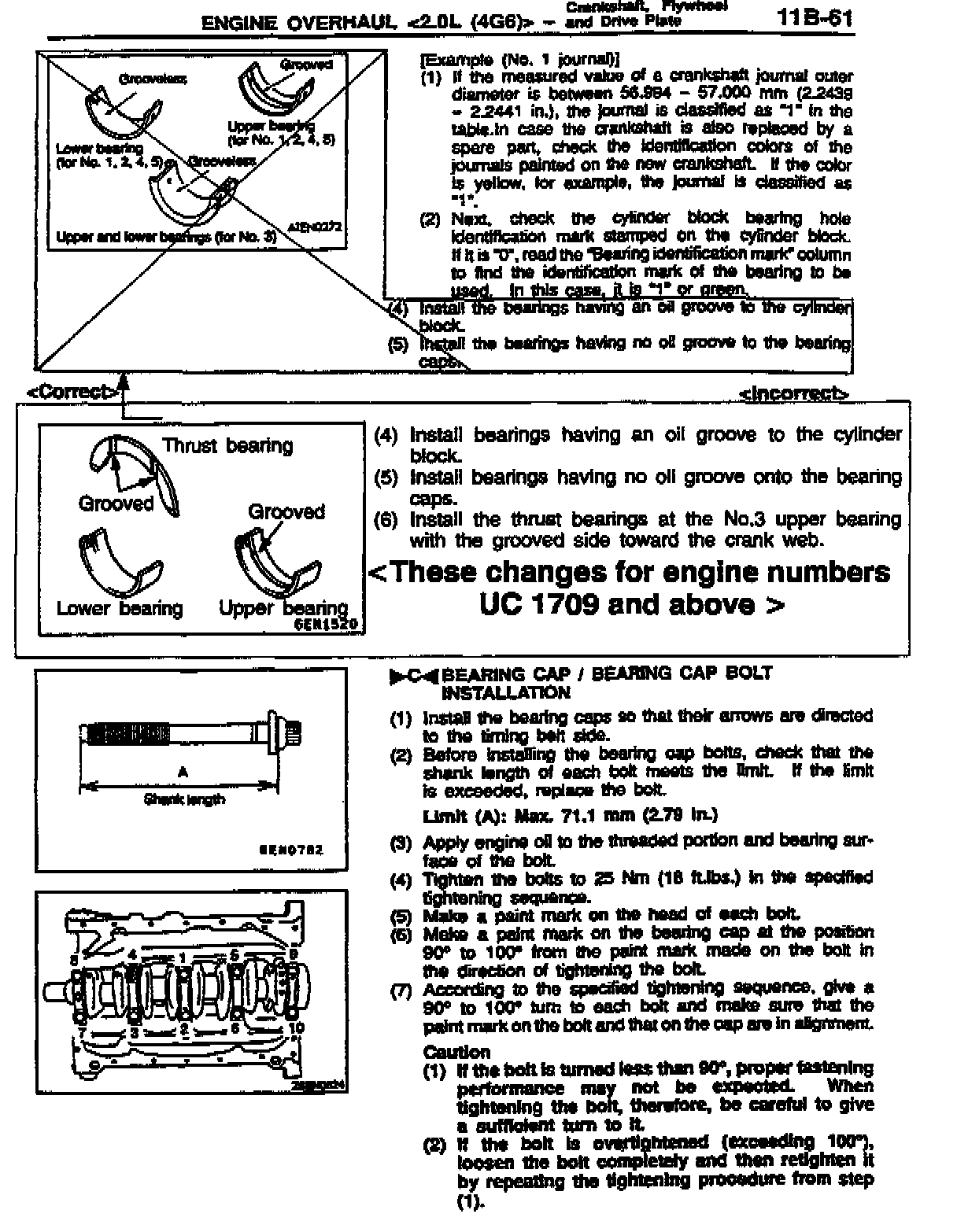

1998 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 11B-61
Correct the bearing installation procedures as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

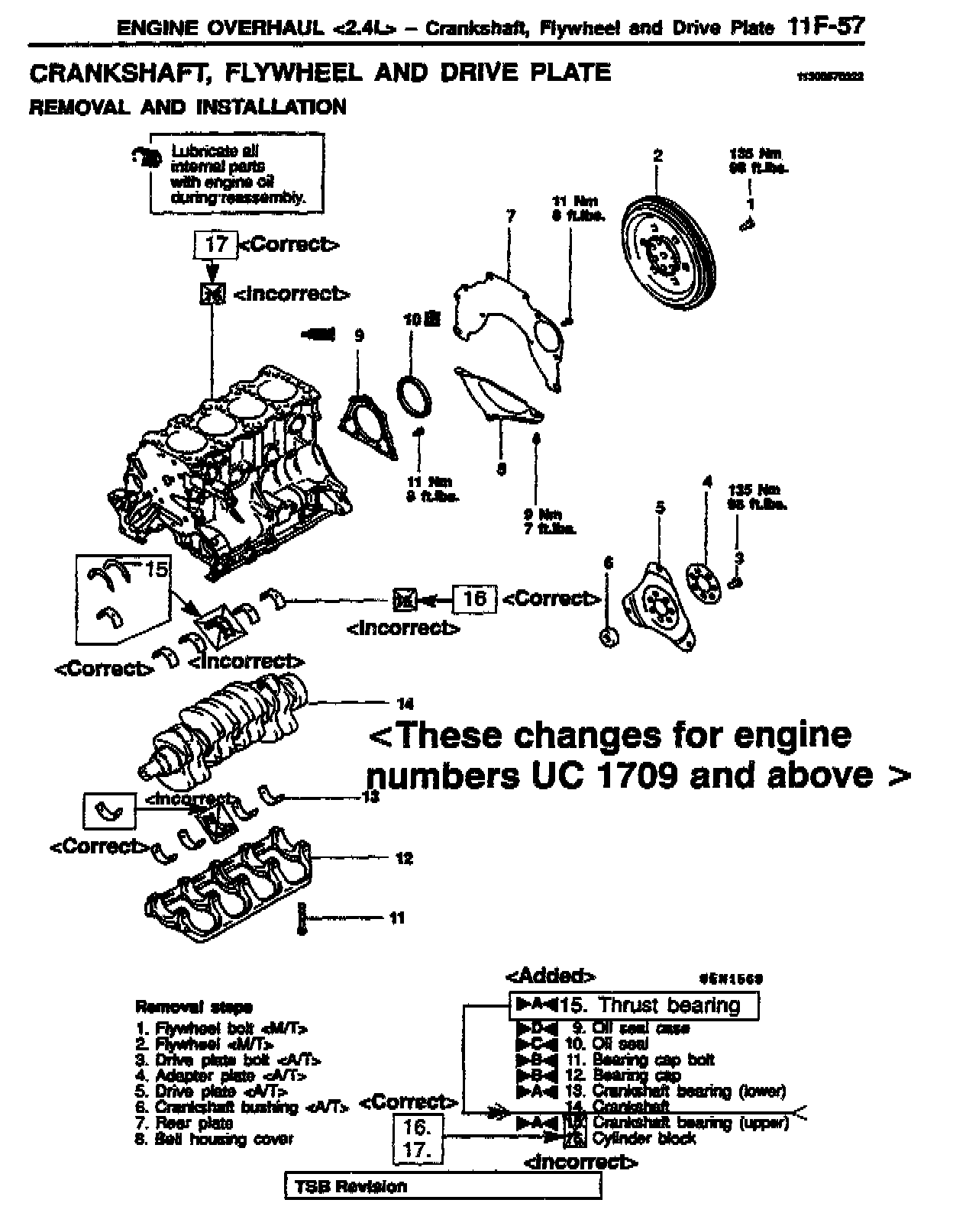

1998 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 11F-57
Correct the CRANKSHAFT, FLYWHEEL AND DRIVE PLATE procedures as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

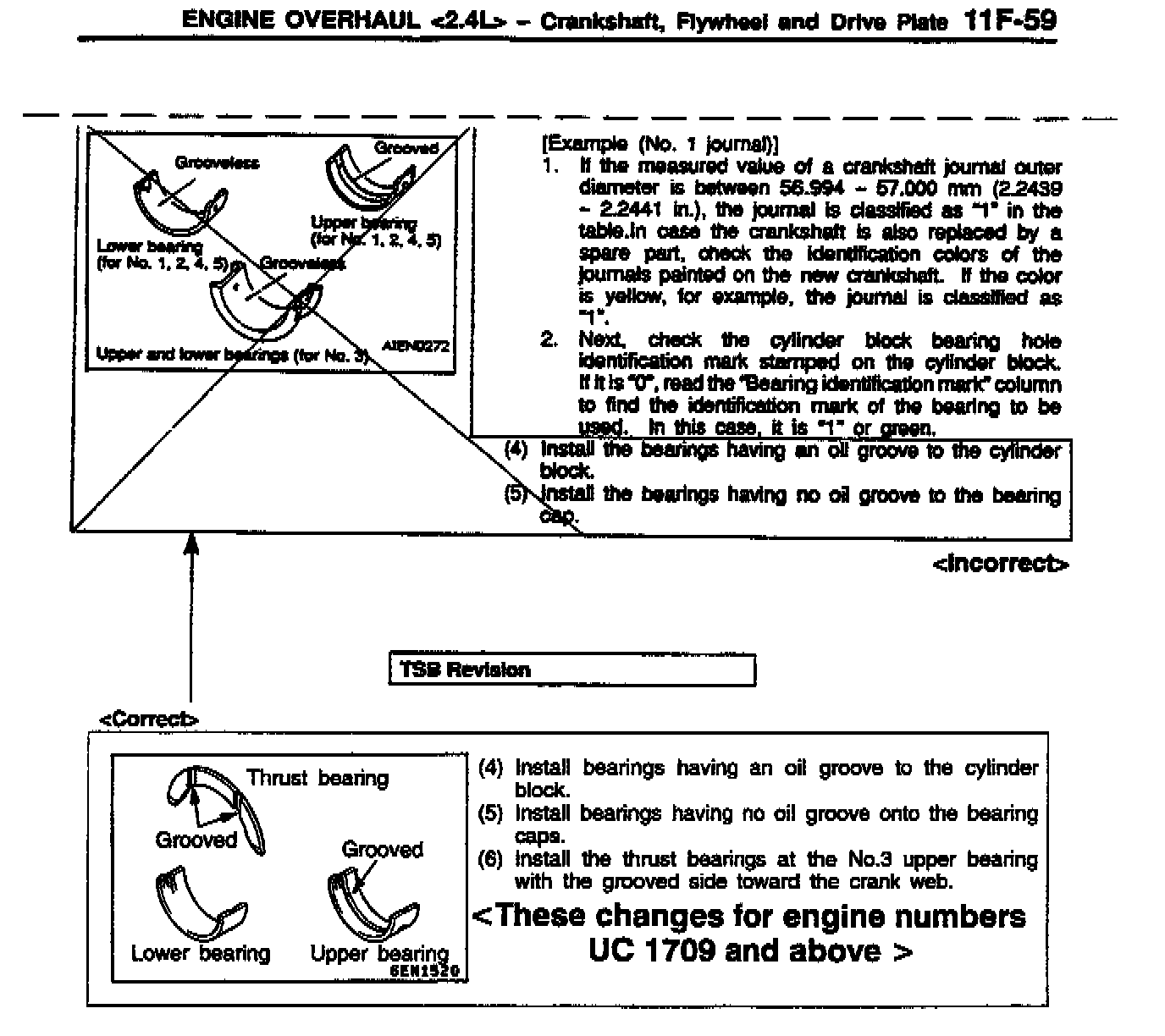

1998 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 11F-59
Correct the bearing installation procedures as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

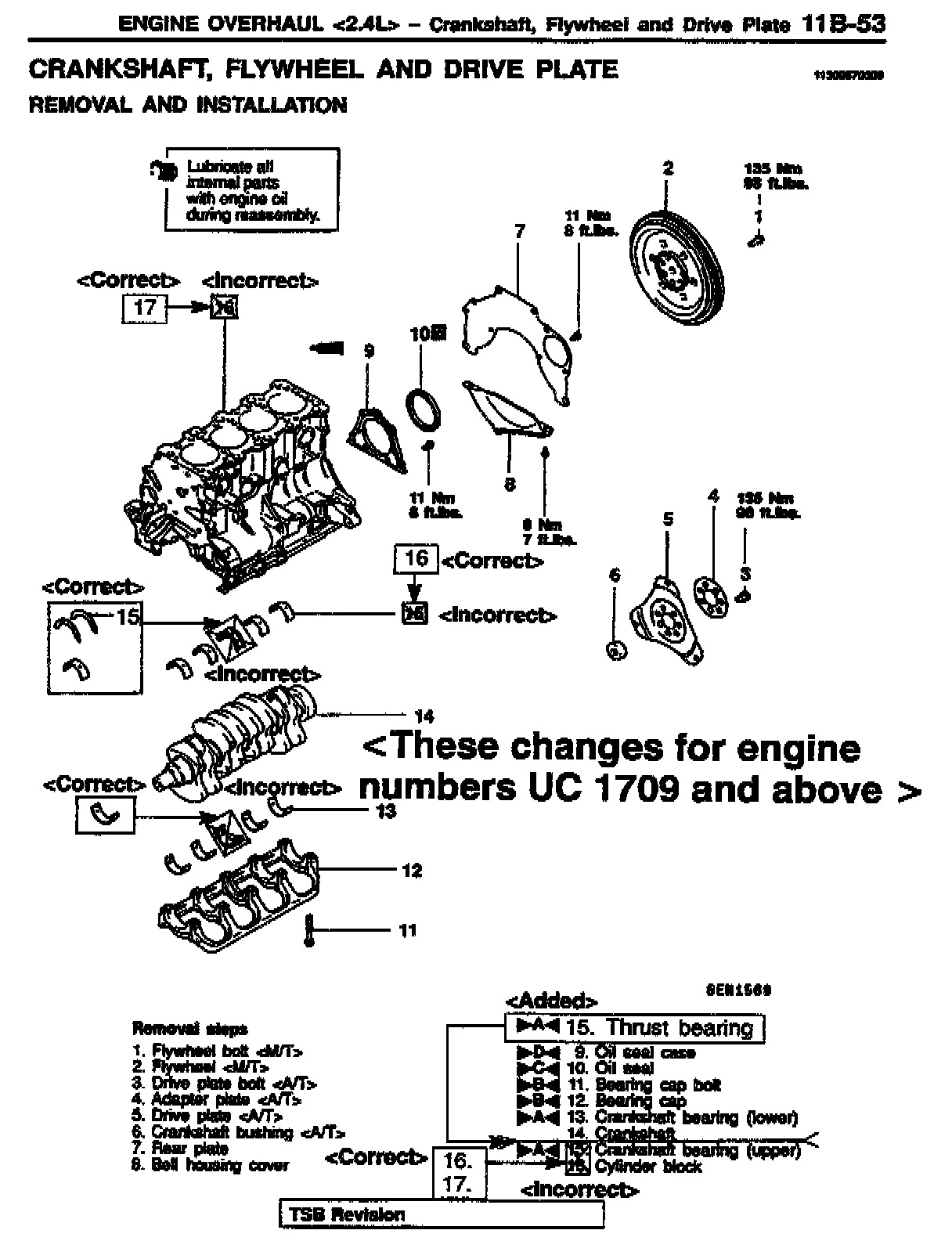

1998 Galant Service Manual, Volume 1, Page 11B-53
Correct the CRANKSHAFT, FLYWHEEL AND DRIVE PLATE procedures as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

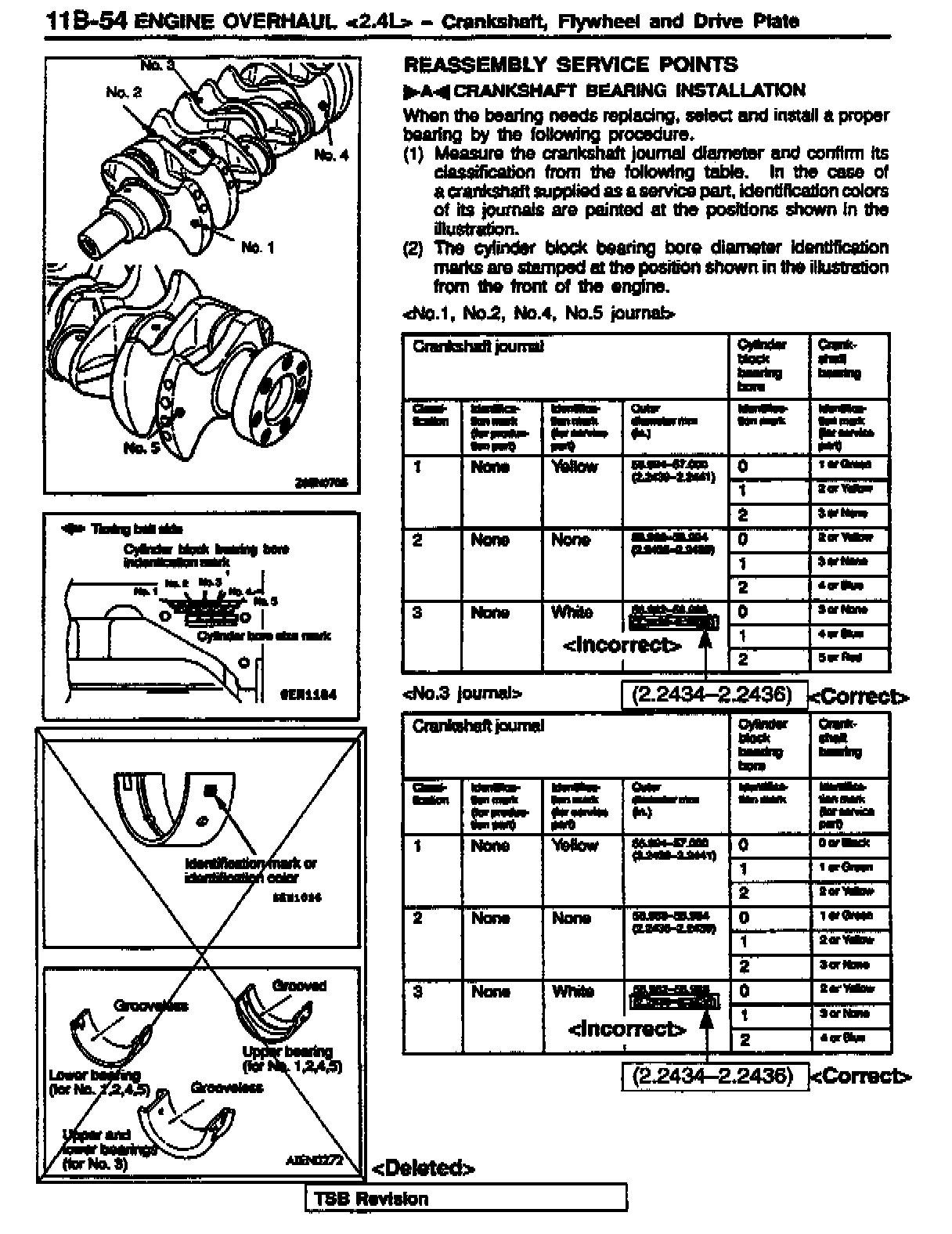

1998 Galant Service Manual, Volume 1, Page 11B-54
Delete the indicated information and correct the specifications as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

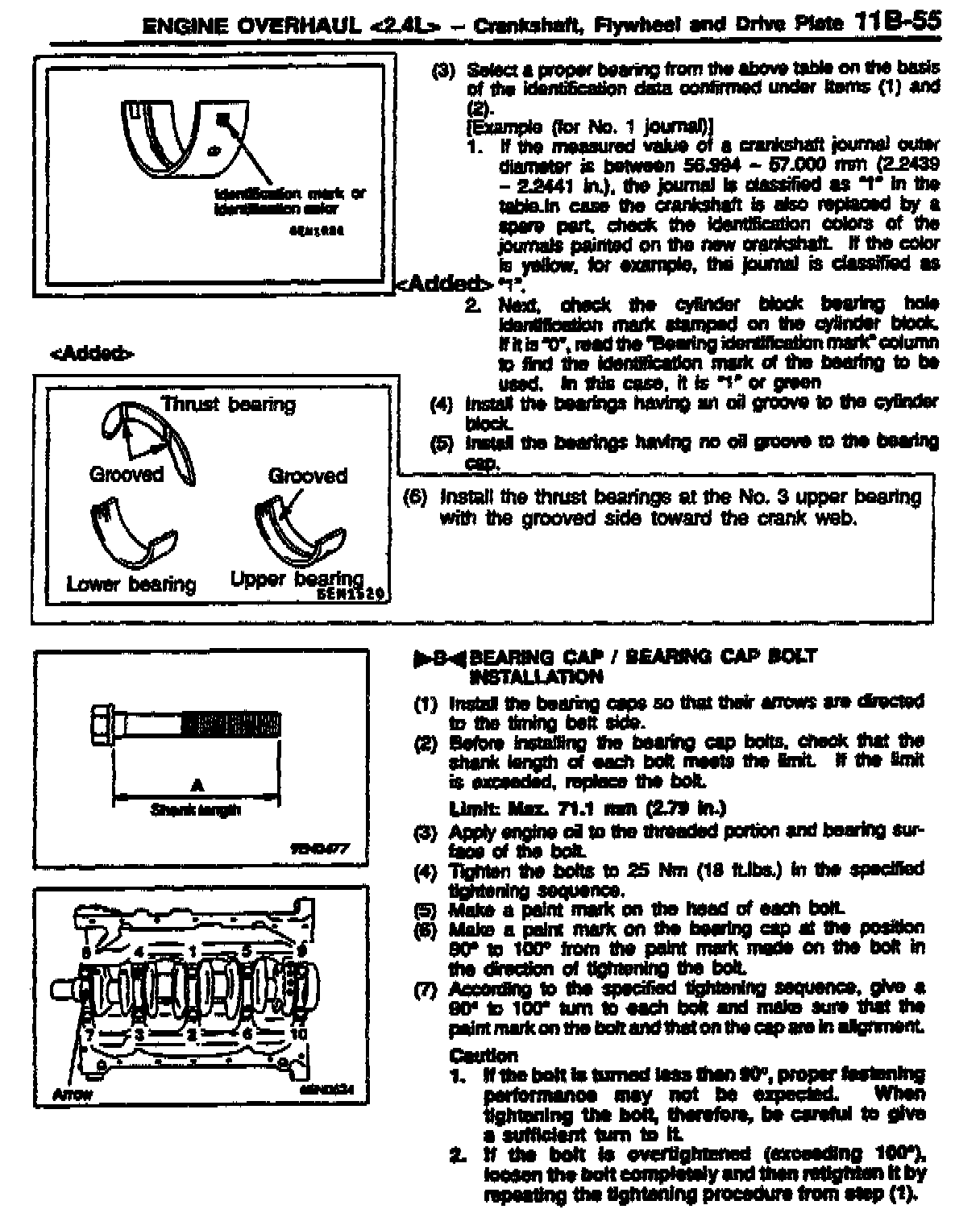

1998 Galant Service Manual, Volume 1, Page 11B-55
Add the new information as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

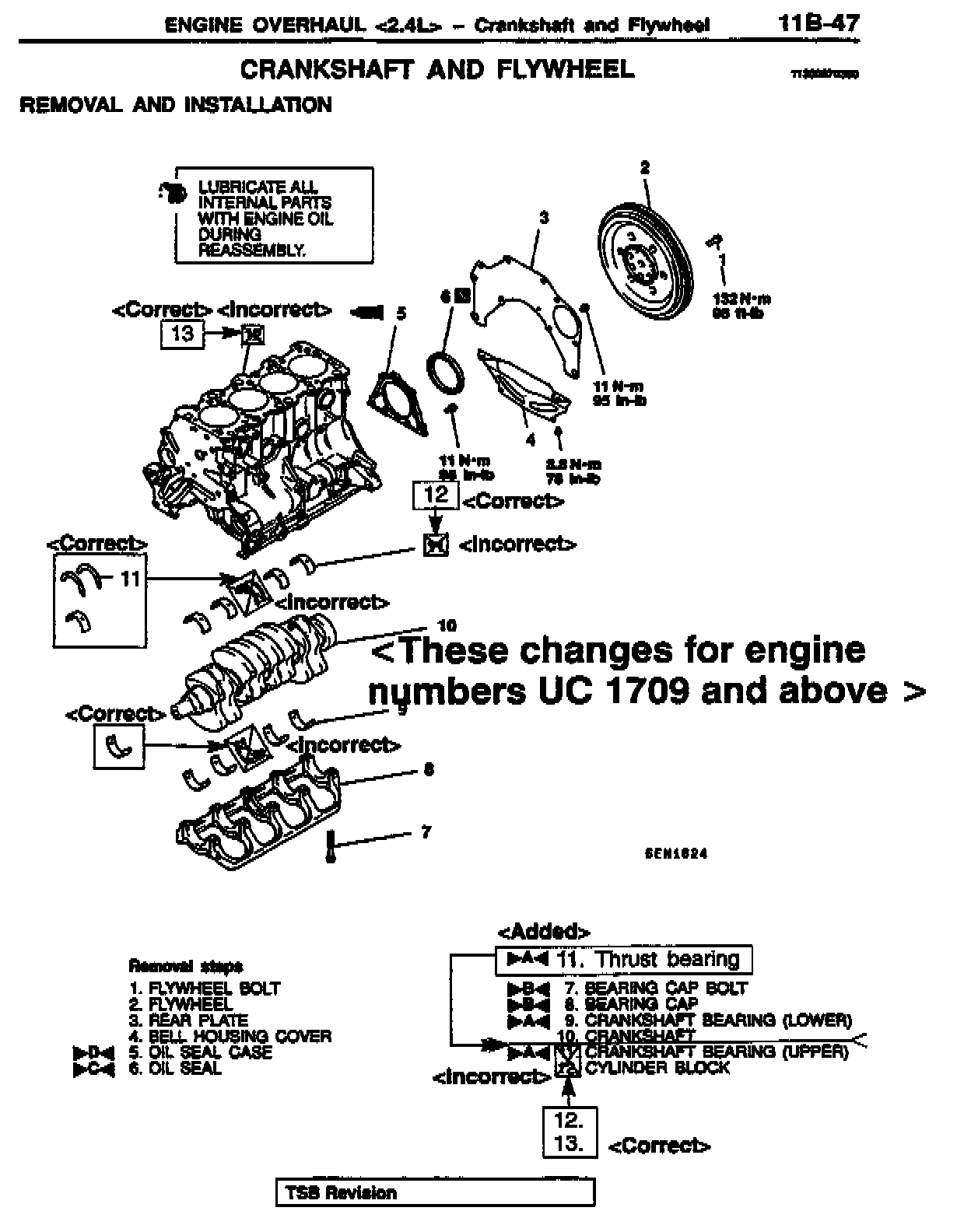

1998 Montero Sport Service Manual, Volume 1, Page 11B-47
Correct the CRANKSHAFT AND FLYWHEEL procedures as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

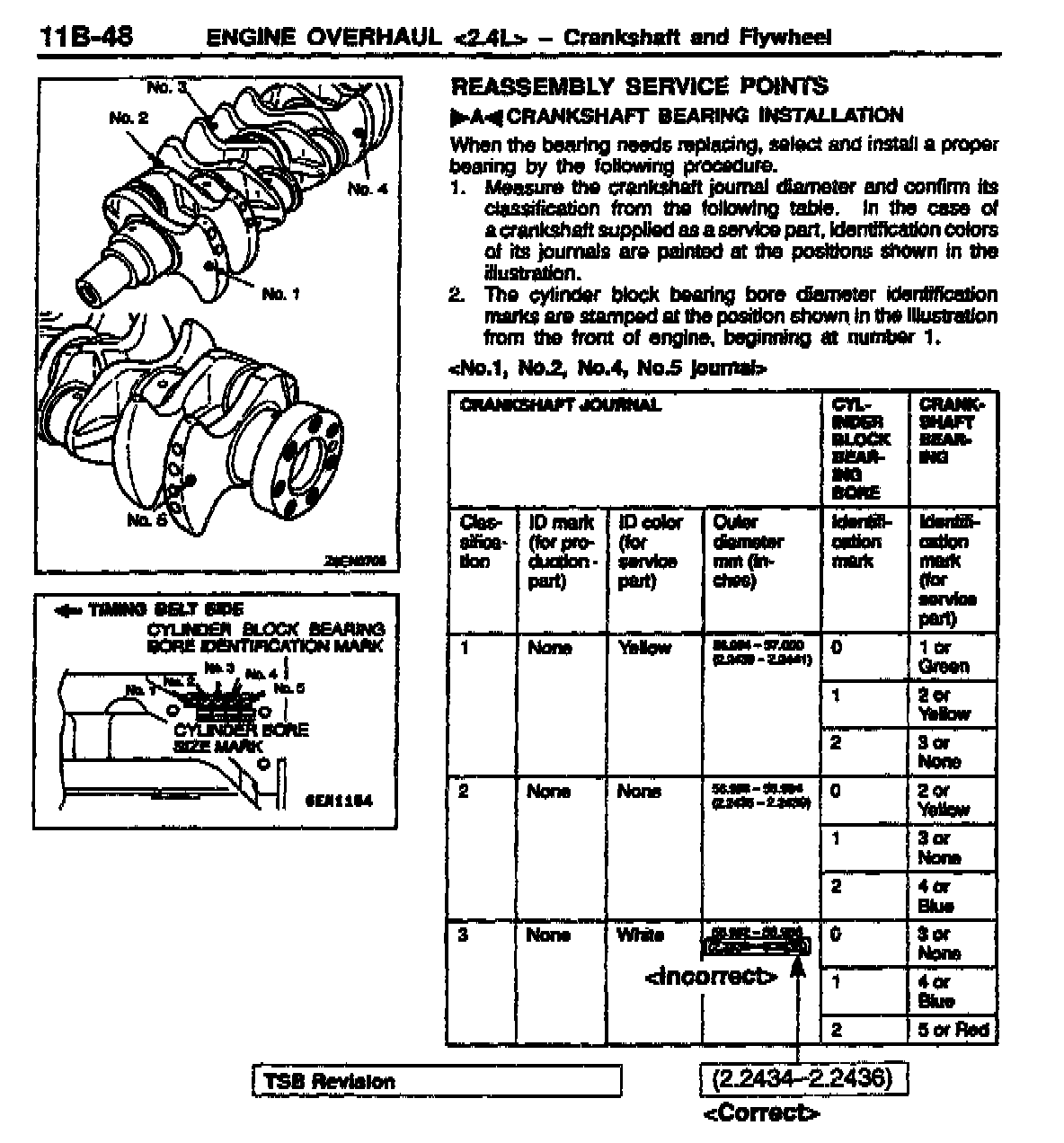

1998 Montero Sport Service Manual, Volume 1, Page 11B-48
Correct the specifications as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

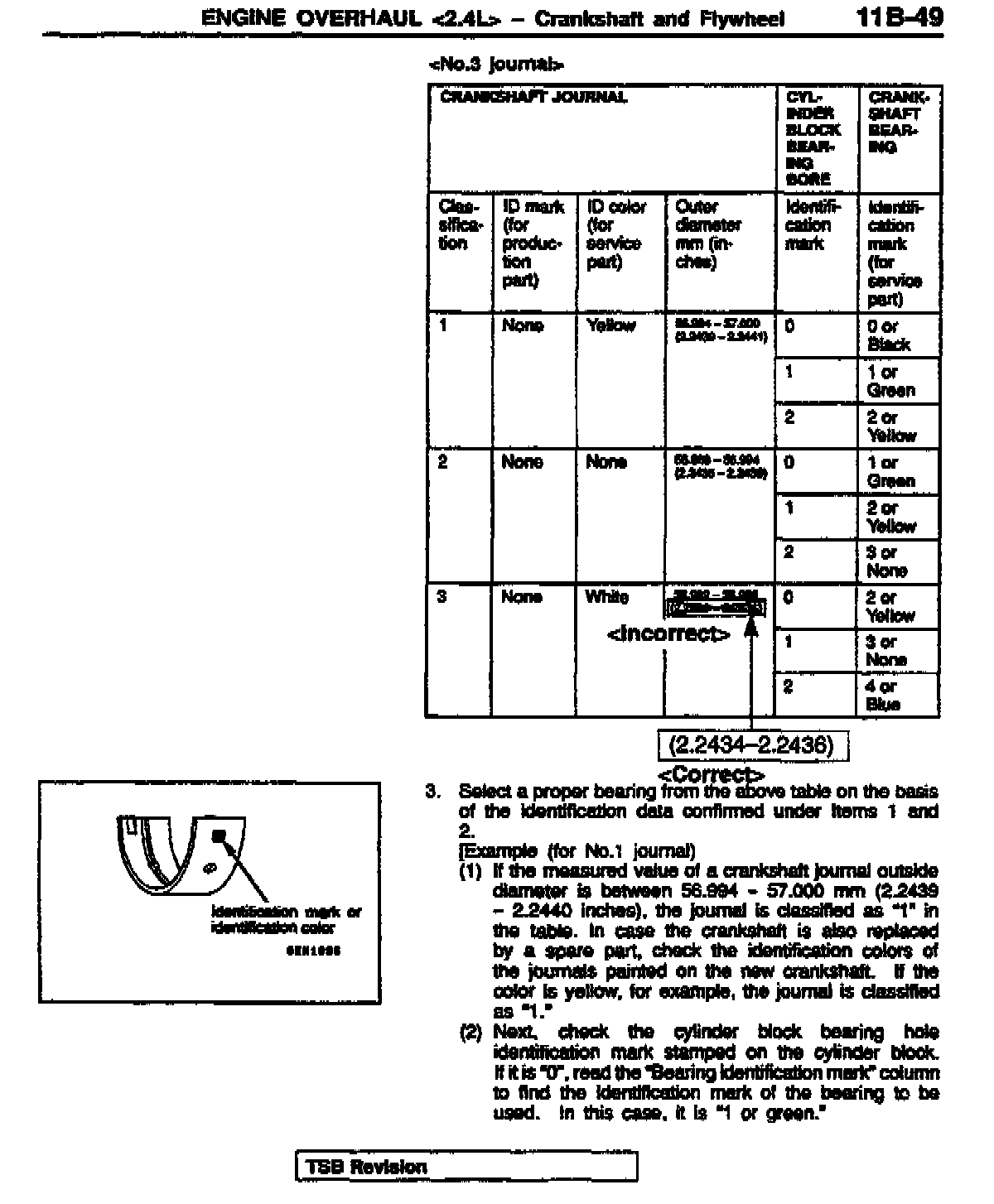

1998 Montero Sport Service Manual, Volume 1, Page 11B-49
Correct the specification as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.

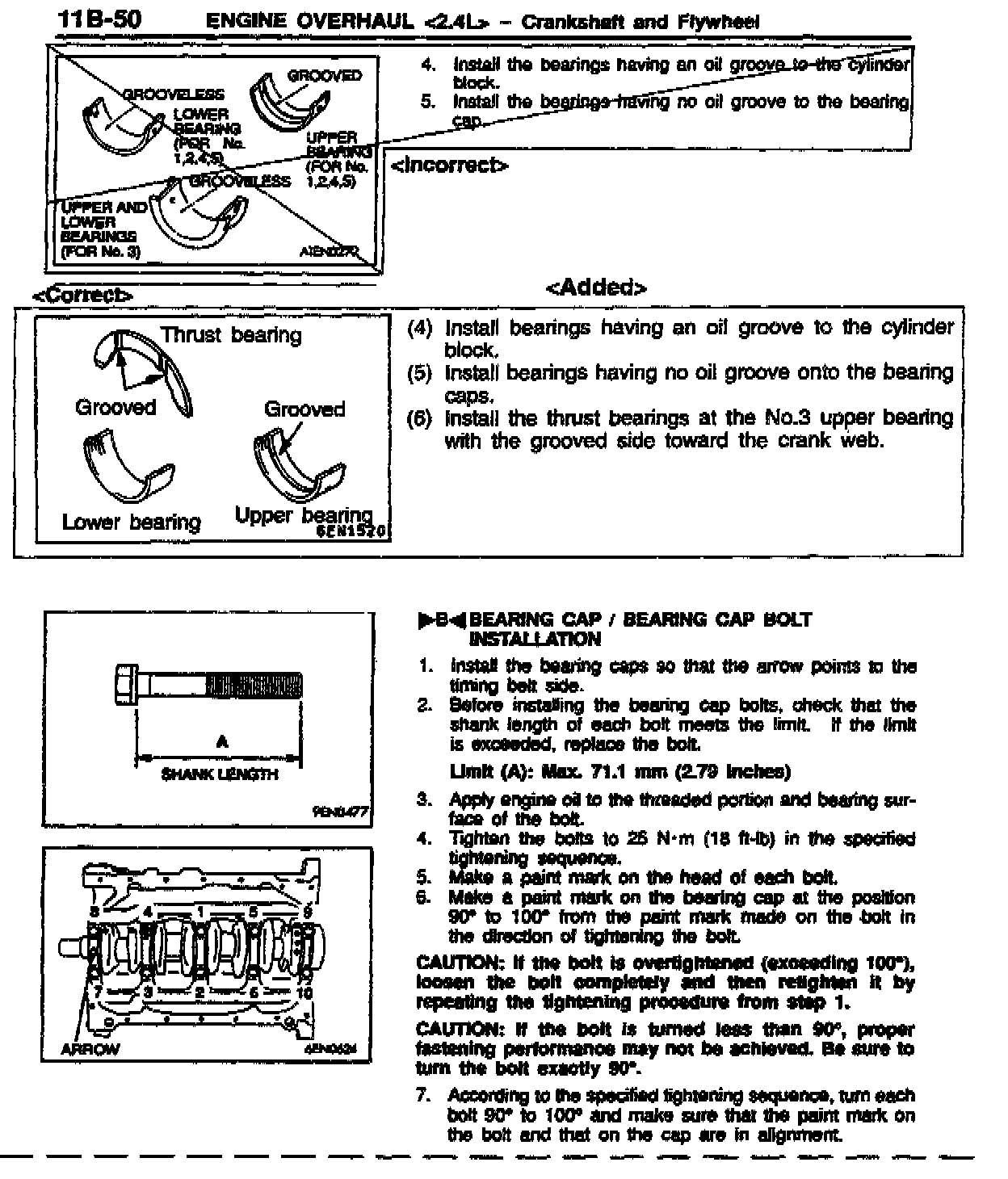

1998 Montero Sport Service Manual, Volume 1, Page 11B-50
Correct the procedures as shown.
NOTE:
Original manual page is correct for engine numbers before UC 1709.
