Initial Inspection and Diagnostic Overview

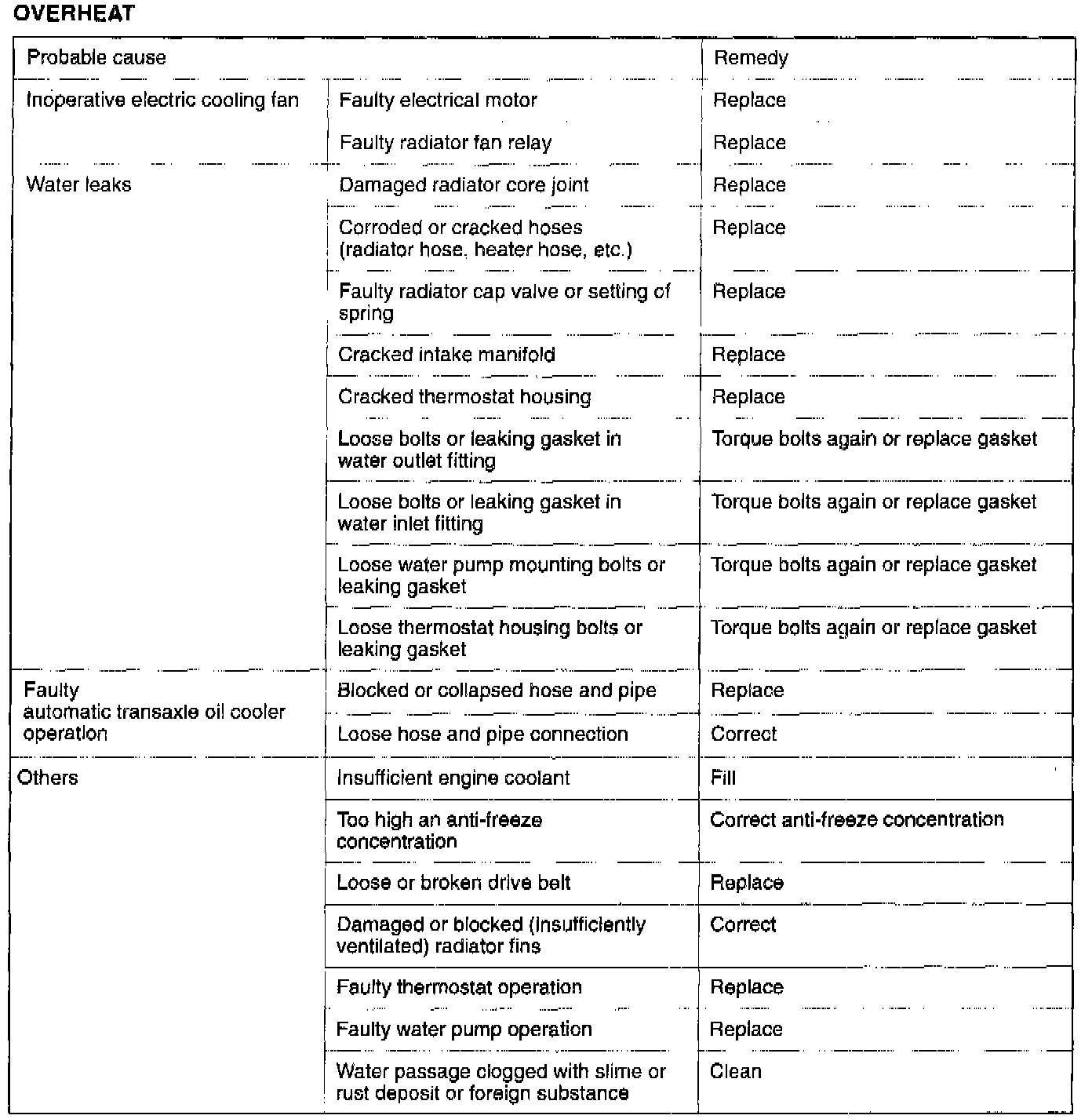

OVERHEAT

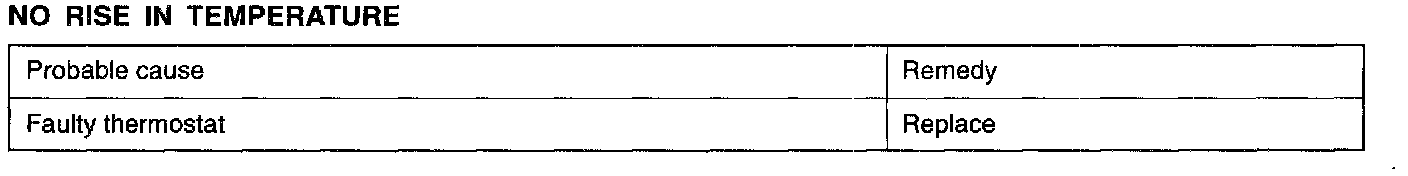

NO RISE IN TEMPERATURE

TROUBLESHOOTING HINTS
[2.0L Engine (non-turbo)]

1. Only the radiator fan does not operator.
- Check fusible link No. 7.
2. Only the condenser fan does not operate.
- Check dedicated fuse No.9.
3. The radiator fan and condenser fan do not operator in the low speed mode, but operate otherwise.
- Check the radiator fan motor relay (LO). and condenser fan motor relay (LO).
- Check the powertrain control module.
4. The radiator fan and condenser fan do not operator in the high speed mode, but operate otherwise.
- Check the radiator fan motor relay (HI) and condenser fan motor relay (HI).
- Check the powertrain control module.

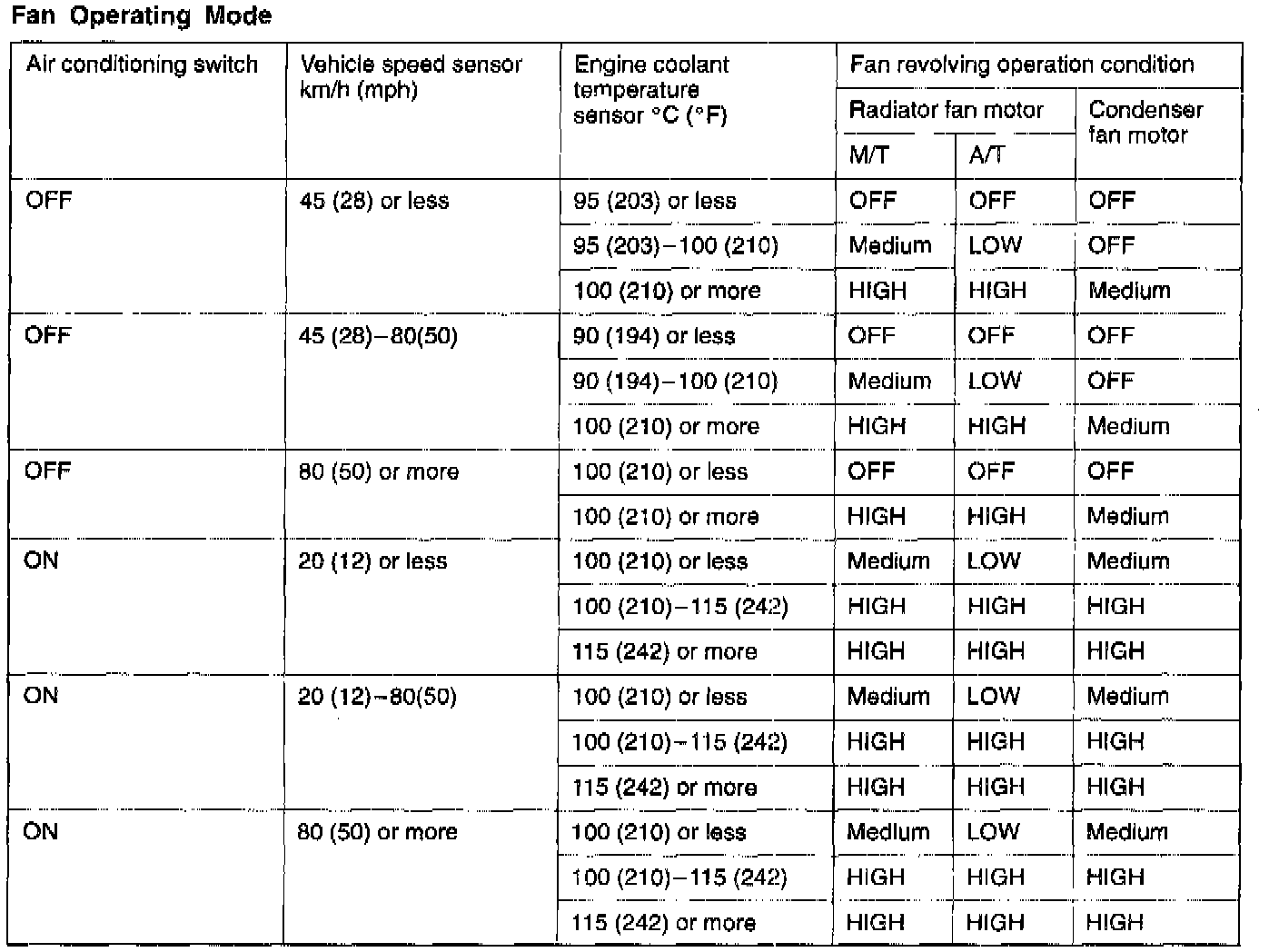

Fan Operating Mode

[2.0L Engine (turbo) and 2.4L Engine]
1. Only the radiator fan does not operator.
- Check fusible link No. 7.
2. Only the condenser fan does not operate.
- Check dedicated fuse No. 9.
3. The radiator fan and condenser fan do not operate in the low speed mode, but operate otherwise.
- Check the radiator fan motor relay (LO) and condenser fan motor relay (LO).
- Check the engine control module.
4. The radiator fan and condenser fan do not operate in the high speed mode, but operate otherwise.
- Check the radiator fan motor relay (HI) and condenser fan motor relay (HI).
- Check the engine control module.





Fan Operating Mode
