Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Vanity Lamp >> Vehicles With Universal Garage Door Opener

Vehicles With Universal Garage Door Opener

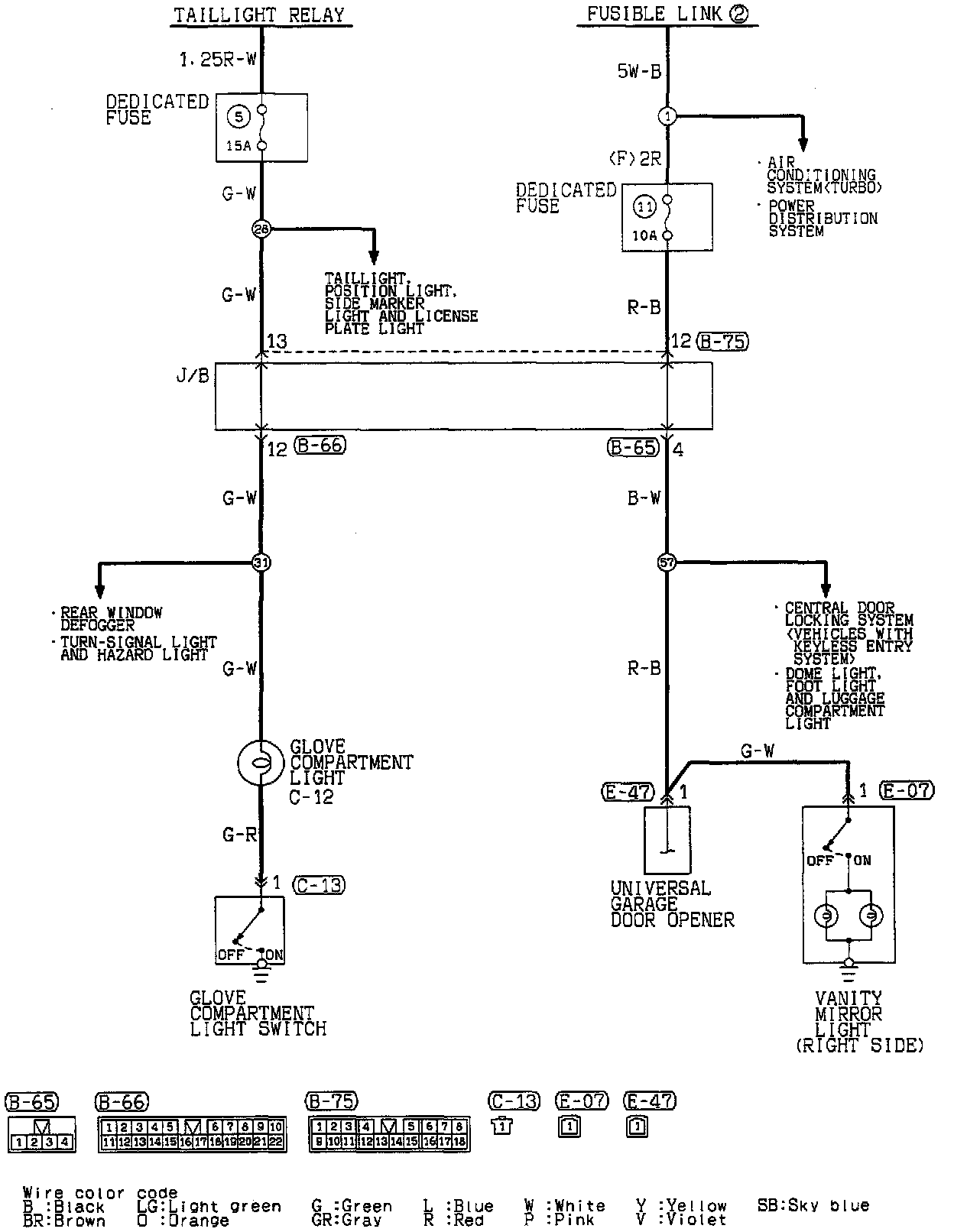

Glove Compartment Light And Vanity Mirror Light <vehicles With Universal Garage Door Opener>:
