Manual Air Conditioning System

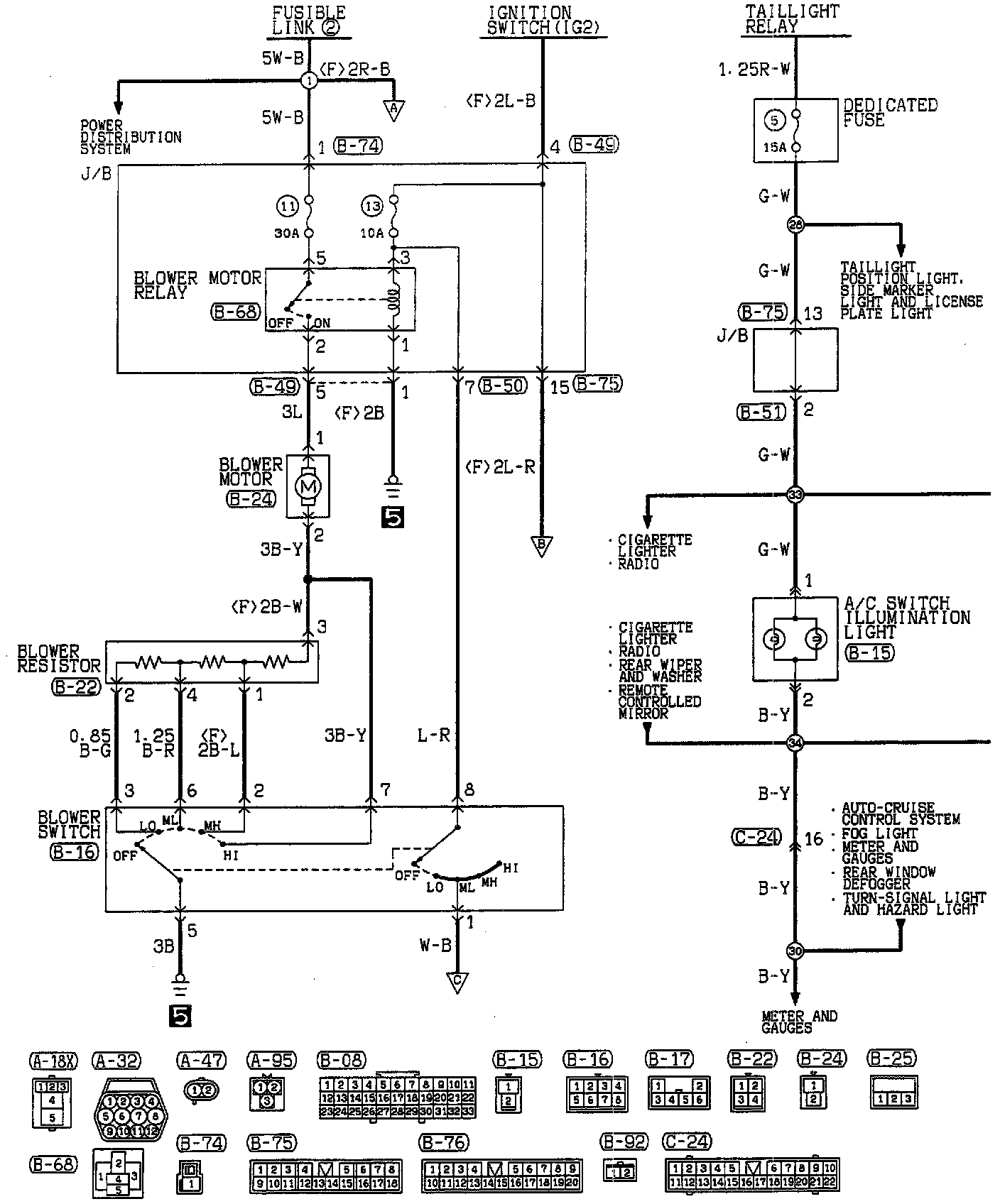

Air Conditioning System<M/T> (Part 1 Of 4):

A/C Switch Illumination Light
Blower Motor
Blower Resistor
Blower Switch
Dedicated Fuse
J/B
- Blower Motor Relay

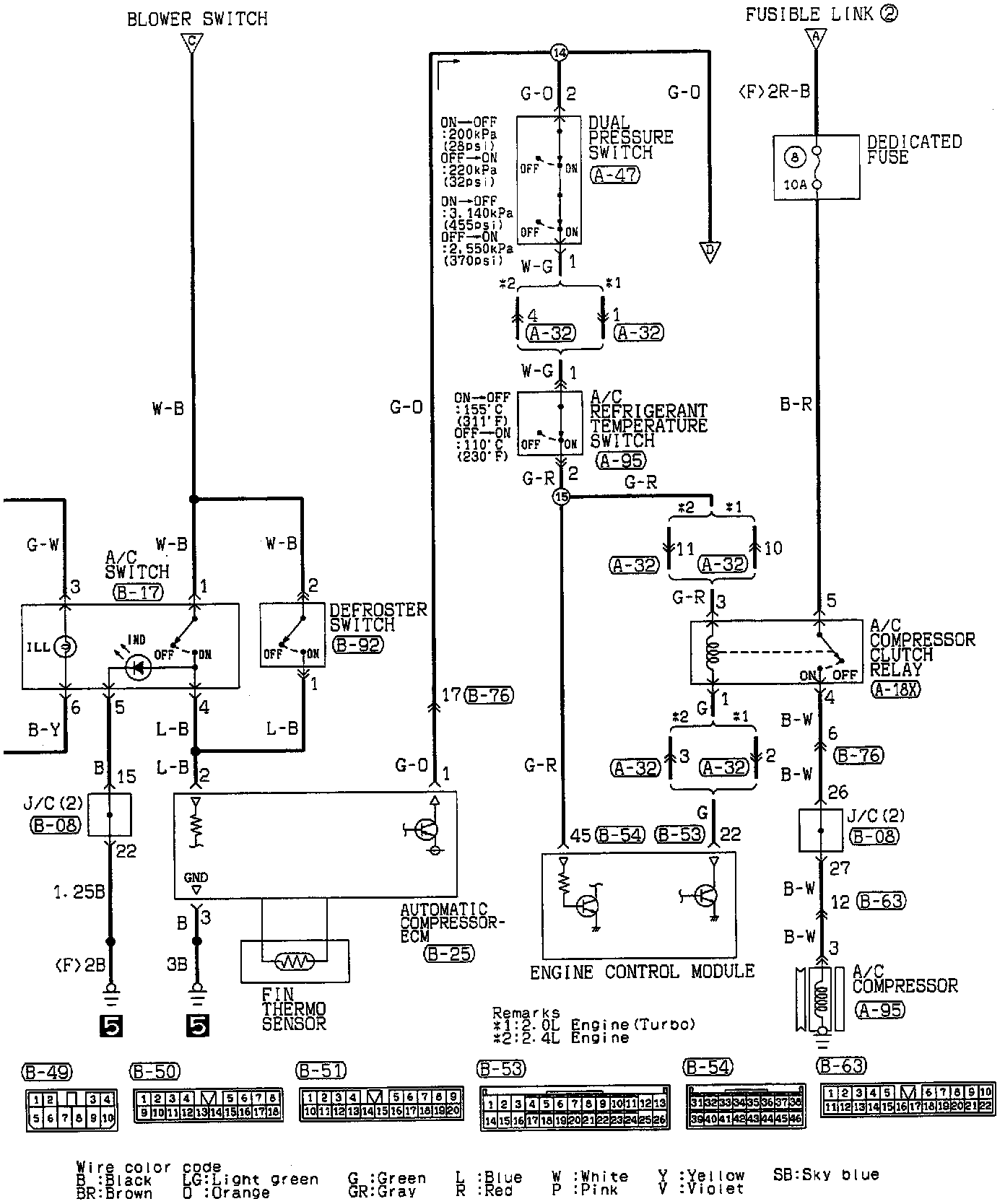

Air Conditioning System<M/T> (Part 2 Of 4):

A/C Switch
A/C Compressor Clutch Relay
A/C Refrigerant Temperature Switch
Automatic Compressor-ECM
Dedicated Fuse
Dual Pressure Switch
Defroster Switch
Engine Control Module
Fin Thermo Sensor
J/C (2)
Powertrain Control Module

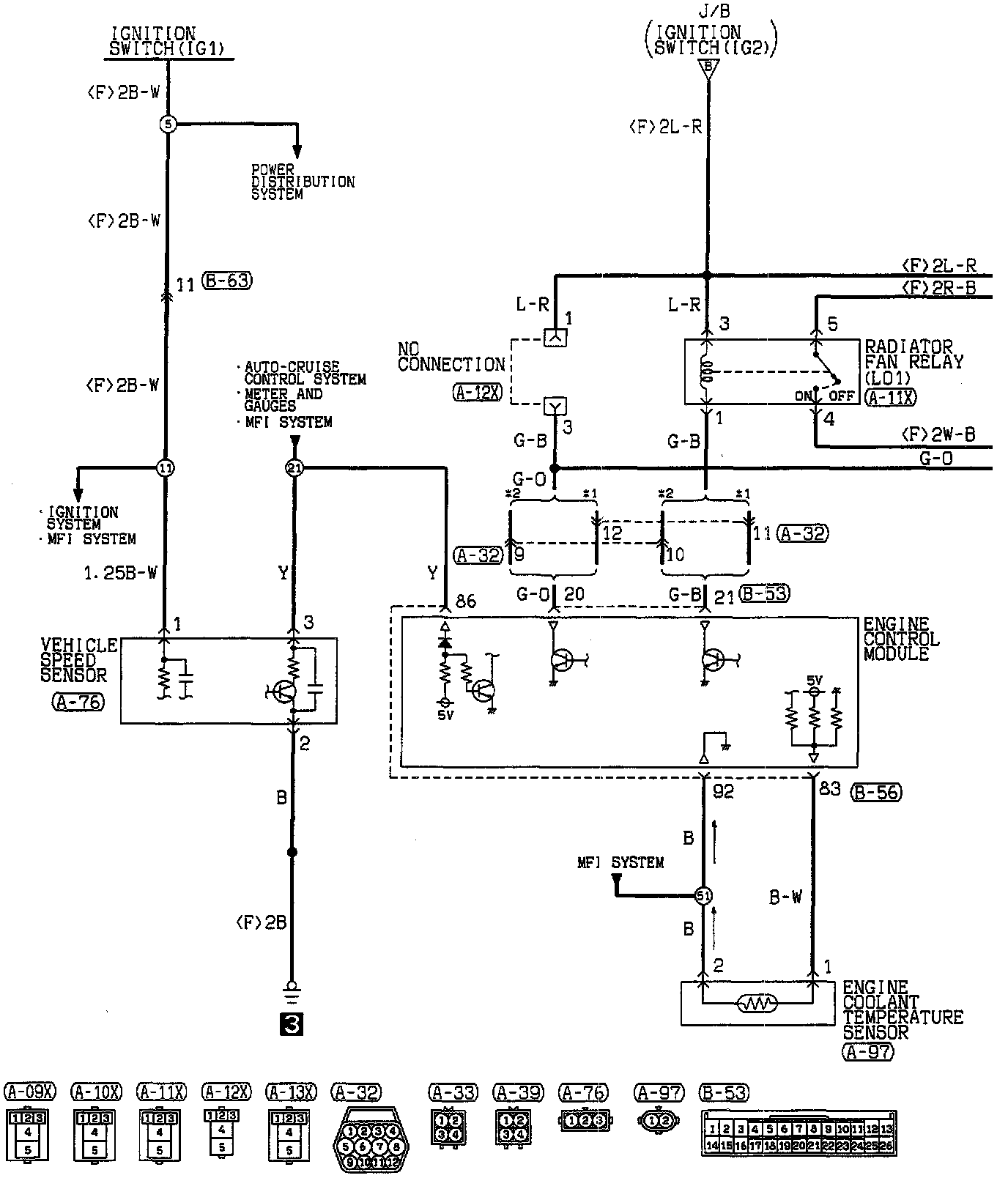

Air Conditioning System<M/T> (Part 3 Of 4):

Engine Control Module
Engine Coolant Temperature Sensor
Radiator Fan Relay (Lo1)
Vehicle Speed Sensor

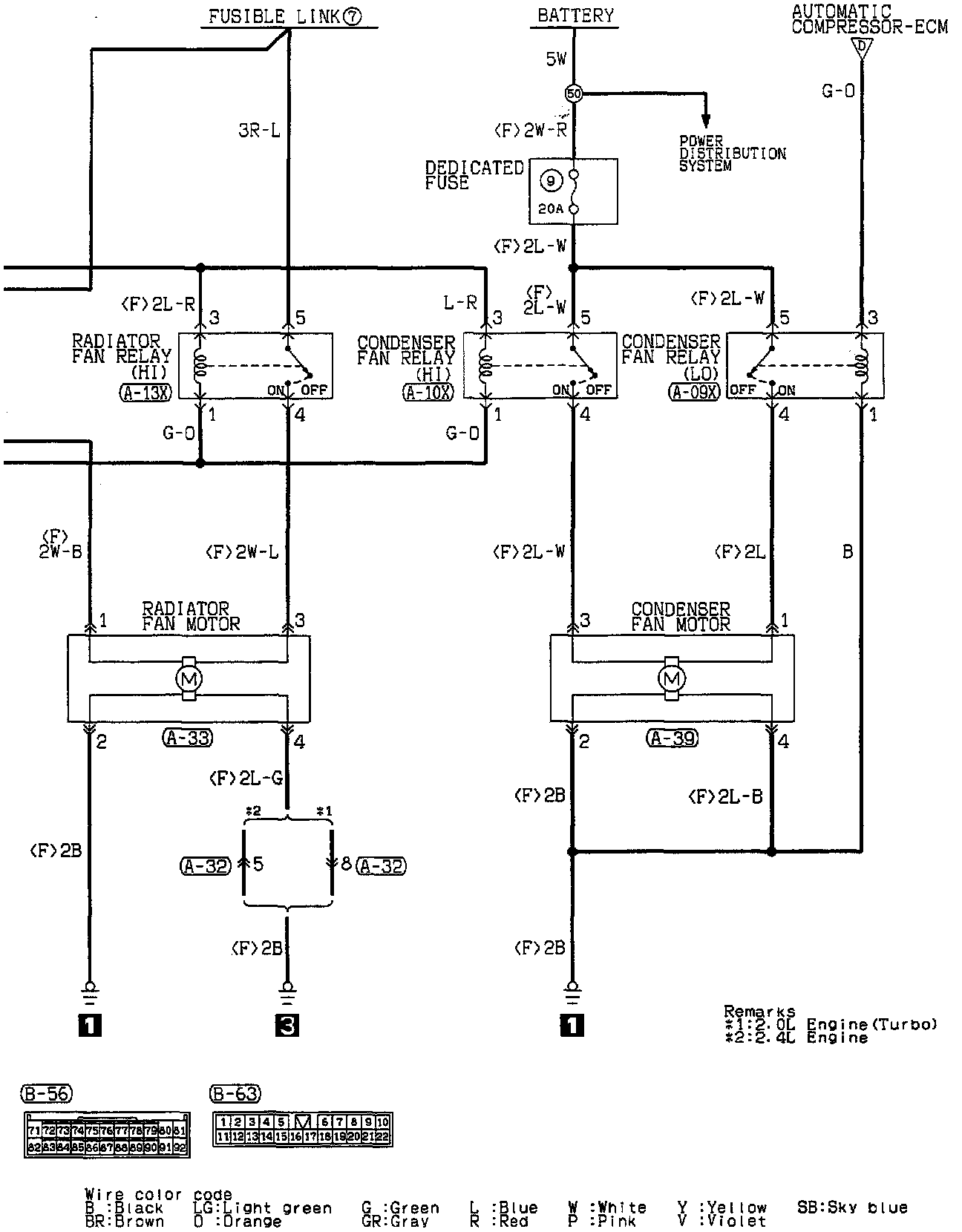

Air Conditioning System<M/T> (Part 4 Of 4):

Condenser Fan Motor
Condenser Fan Relay (Hi & Lo)
Dedicated Fuse
Radiator Fan Motor
Radiator Fan Relay (Hi)
