E Connectors - Interior Harness
E Connectors - Interior Harness

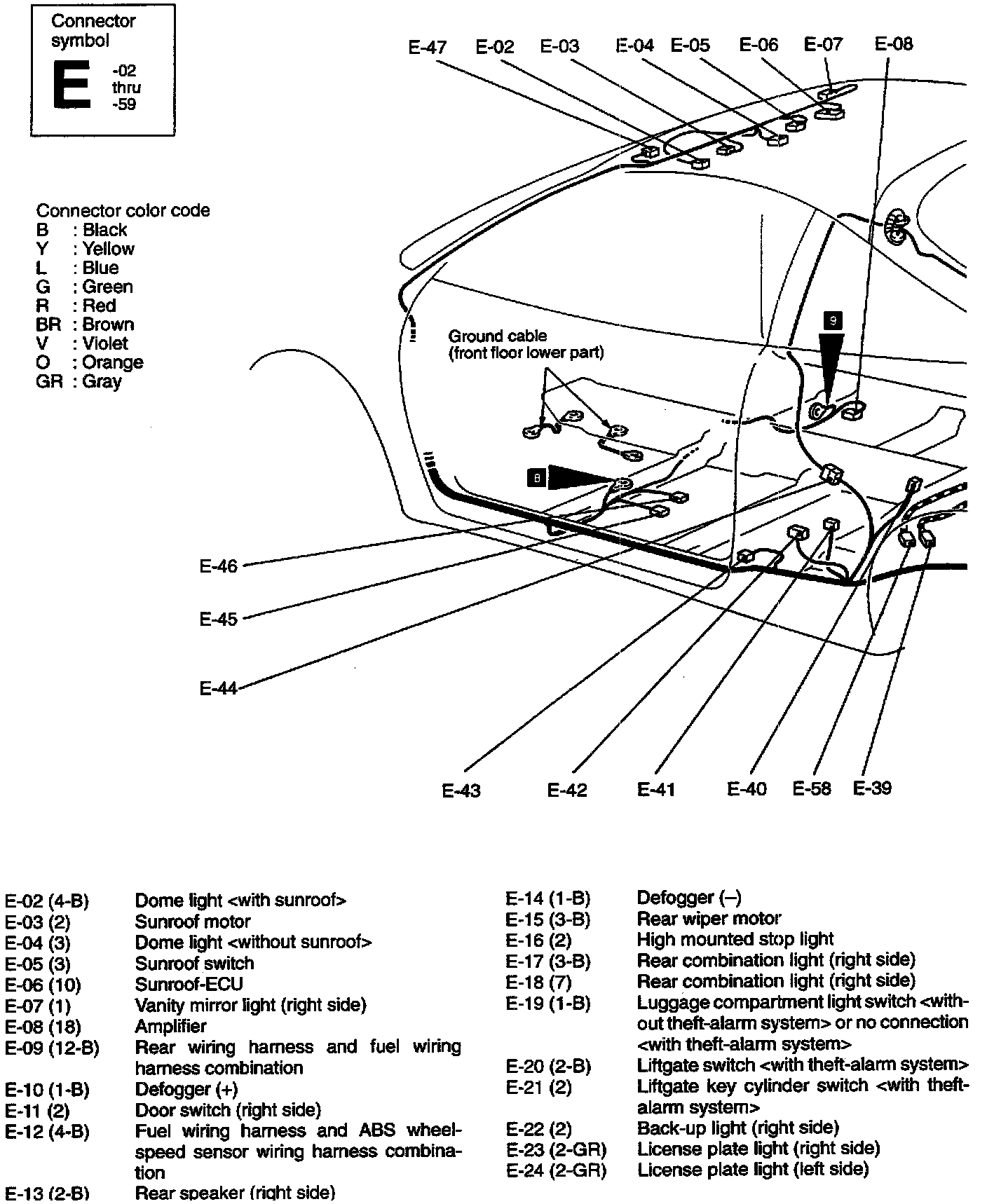

Interior E-02(4-B) Thru E-24(2-GR):

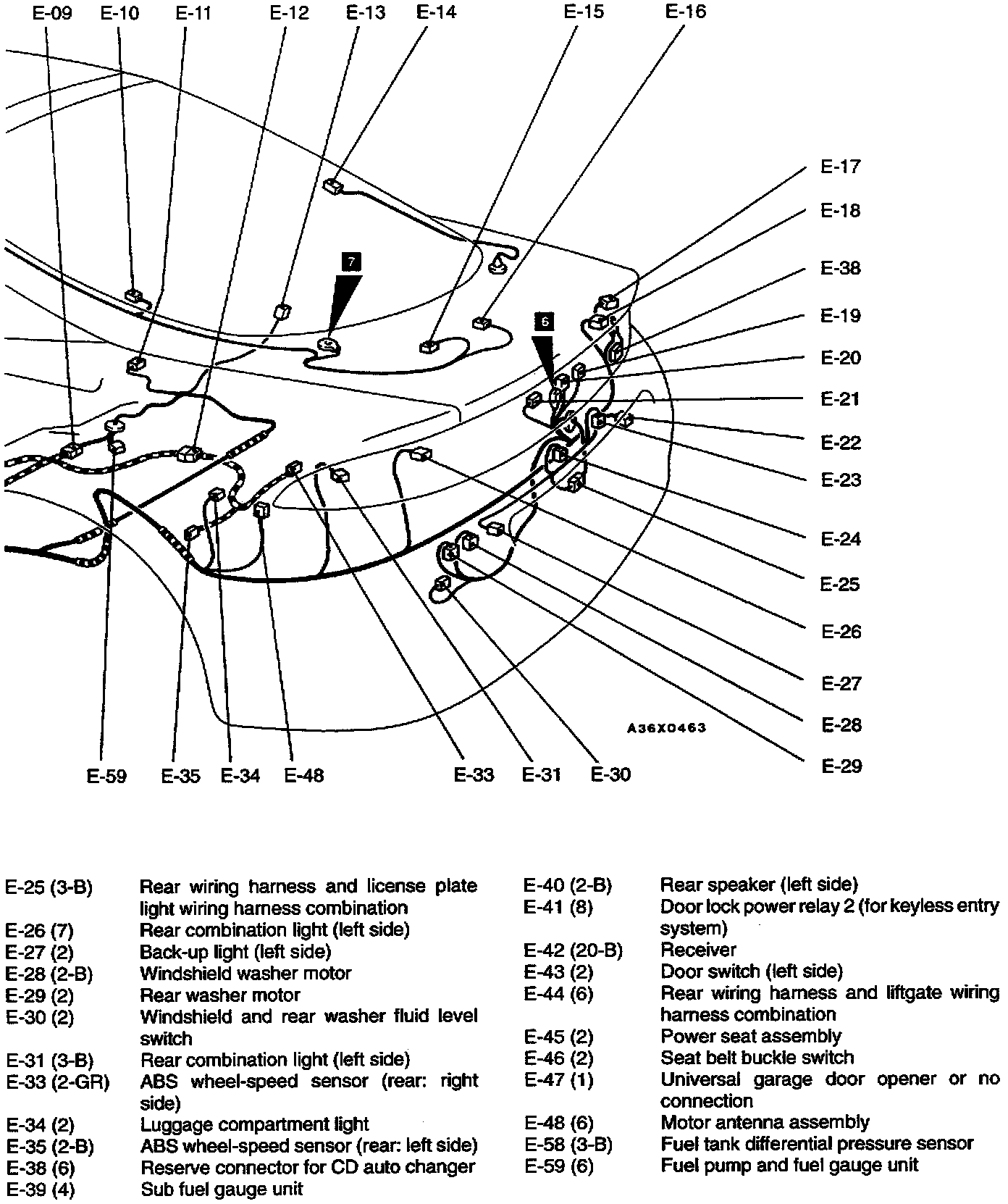

Interior E-25(3-B) Thru E-59(6):
