C Connectors - Instrument Panel and Floor Console Harness
C Connectors - Instrument Panel and Floor Console Harness

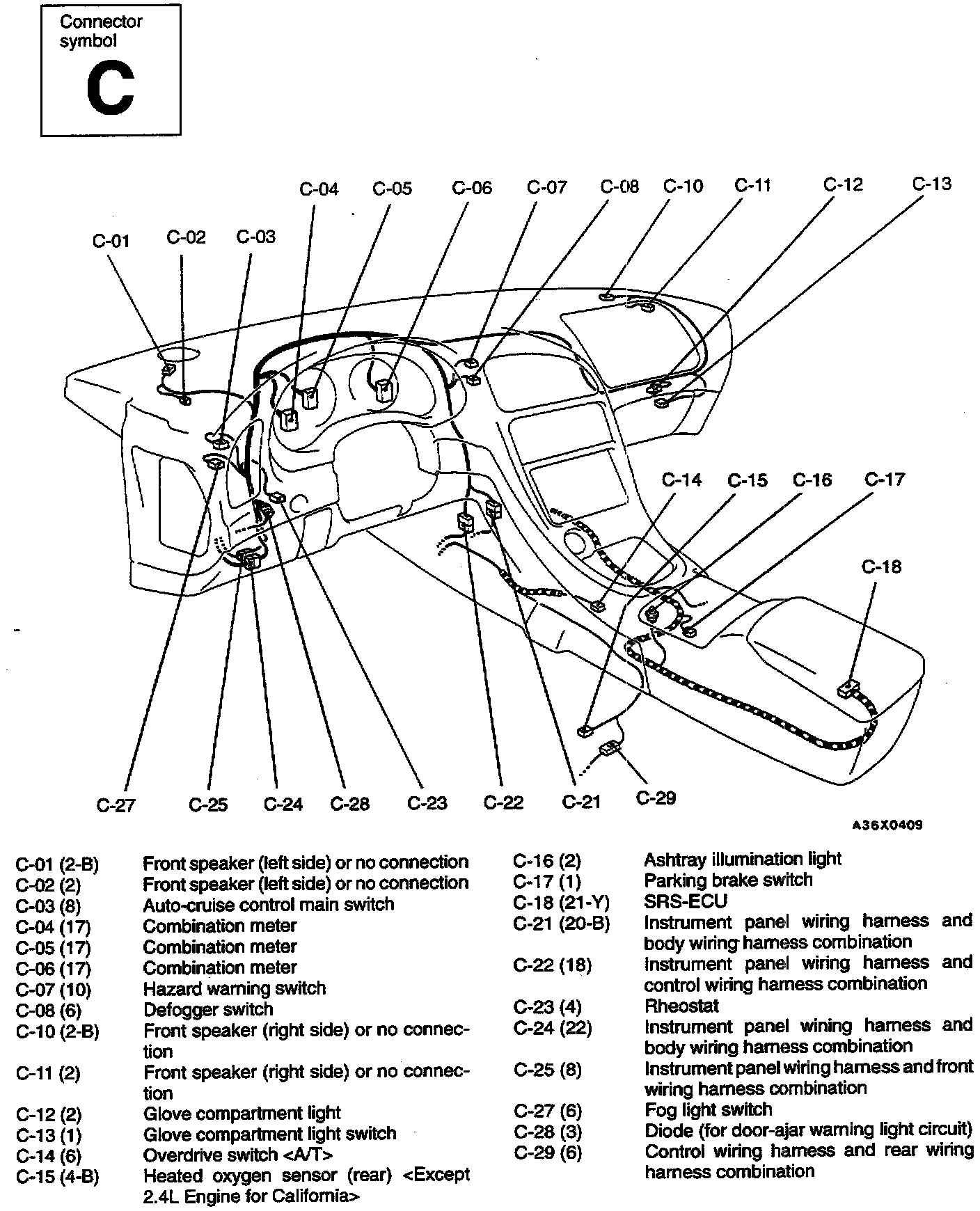

Instrument Panel And Floor Console C-01(2-B) Thru C-29(6):
